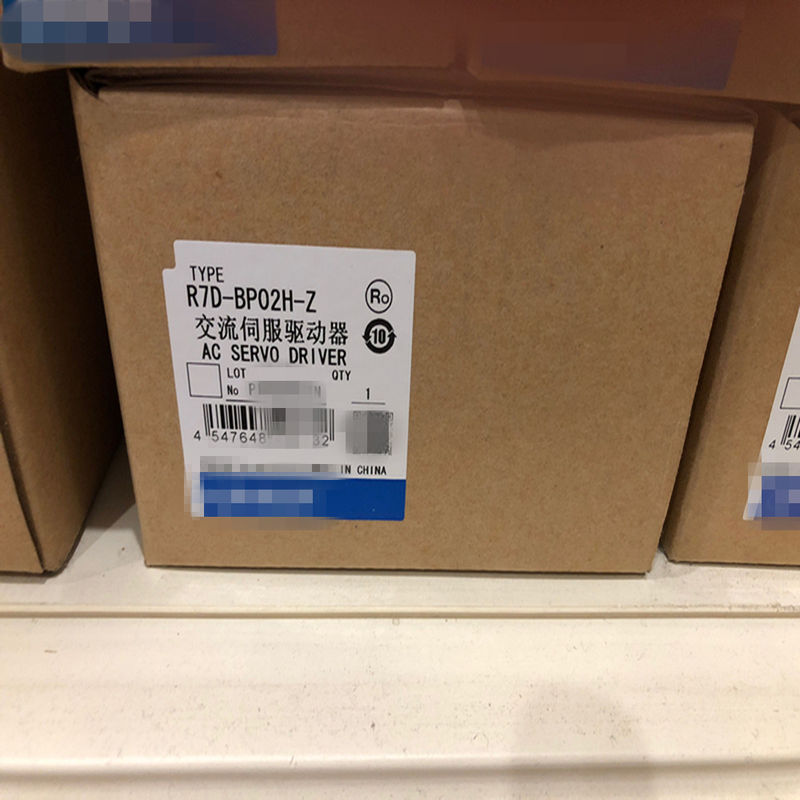

R7D-BP02H OMRON AC Servodriver , Pulse Train Inputs , Three Phase 200 VAC , 200W

: Large Image : R7D-BP02H OMRON AC Servodriver , Pulse Train Inputs , Three Phase 200 VAC , 200W

Product Details:

Place of Origin:	China
Brand Name:	OMRON
Certification:	CE
Model Number:	R7D-BP02H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:

OMRON

Model:

R7D-BP02H

Origin:

China

Type:

Servo Drive

Highlight:

ewing machine servo motor

ac servo motor

R7D-BP02H OMRON AC Servodriver , Pulse Train Inputs , Three Phase 200 VAC , 200W

Servo Drive Specifications (R7D-BP)

General Specifications

Item			Specifications
Ambient operating temperature Ambient operating humidity			0 to 55 °C, 90% max. (with no condensation)
Ambient storage temperature Ambient storage humidity			-20 to 65 °C, 90% max. (with no condensation)
Storage and operating atmosphere			No corrosive gasses, no dust, no iron dust, no exposure to moisture or cutting oil
Vibration resistance			10 to 60 Hz; acceleration: 5.9 m/s² (0.6 G) max.
Impact resistance			Acceleration of 19.6 m/s² max. 3 times each in X, Y, and Z directions.
Insulation resistance			Between power supply/power line terminals and frame ground: 0.5 MΩ. min. (at 500 VDC)
Dielectric strength			Between power supply/power line terminals and frame ground: 1,500 VAC for 1 min at 50/60 Hz Between each control signal and frame ground: 500 VAC for 1 min
Altitude			1,000 m above sea level max. (860 hp min.)
Degree of protection			Built into panel (IP10).
International standards	EC Directives	EMC Directive	EN 55011 class A group 1 EN 61000-6-2
	EC Directives	Low Voltage Directive	EN 50178
	UL standards		UL 508C
	cUL standards		cUL C22.2 No.14
	Korean Radio Regulations (KC)		Certified

Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Depending on the operating conditions, some Servo Drive parts will require maintenance.
Note: 4. The service life of the Servo Drive is 50,000 hours at an average ambient temperature of 40°C at 80% of the
rated torque (excluding axial-flow fan).

200 VAC specification

Item	Servo Drive model
Item	R7D-BP01H	R7D-BP02HH	R7D-BP02H	R7D-BP04H
Continuous output current (rms)	1.0 A	1.6 A	1.6 A	2.5 A
Momentary maximum output current (rms)	3.3 A	4.9 A	4.9 A	7.8 A
Power supply capacity	0.27 KVA (0.30 KVA) *	0.35 KVA	0.42 KVA	0.69 KVA (0.77 KVA) *
Input power supply voltage (main circuit)	Both single-phase and three-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz
Input power supply current (rms) (main circuit)	0.7 A (1.5 A) *	1.6 A	1.1 A	1.8 A (3.5 A) *
Heat generated (main circuit)	14 W	16 W	20 W	26W
Control method	All-digital servo
Inverter method	IGBT-driven PWM method
PWM frequency	12 kHz			6 kHz
Maximum response frequency (command pulses)	Line drive: 500 kpps, Open collector: 200 kpps
Weight	0.35 kg	0.42 kg	0.35 kg	0.42 kg
Applicable motor capacity	100 W	200 W	200 W	400 W

Similar Model Products

Specifications		Model
Single-phase 100 VAC	50 W	R7D-BPA5L
	100 W	R7D-BP01L
	200 W	R7D-BP02L
Single-phase/three-phase 200 VAC	50 W	R7D-BP01H
	100 W	R7D-BP01H
	400 W	R7D-BP04H
Single-phase 200 VAC	200 W	R7D-BP02HH
Three-phase 200 VAC	200 W	R7D-BP02H
