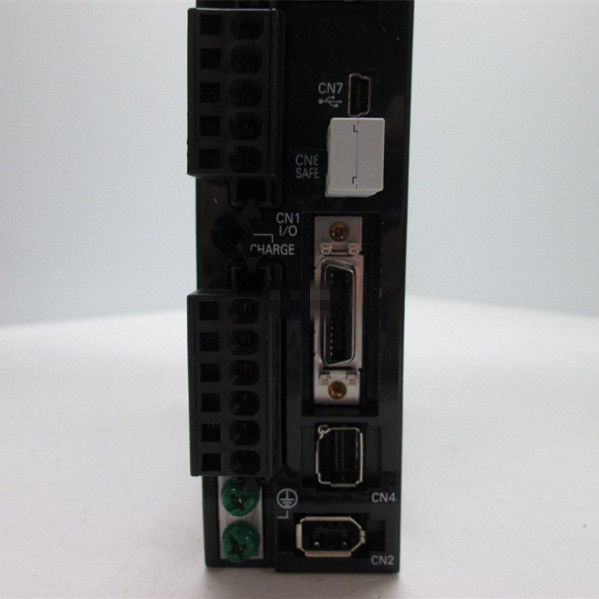

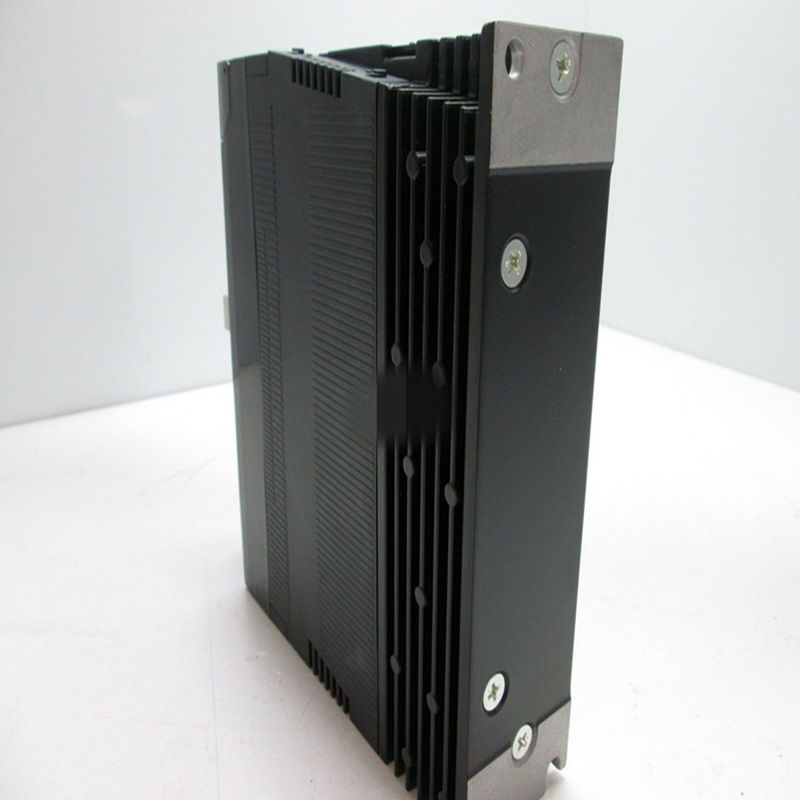

R88D-KN02L-ML2 OMRON AC Servodriver , MECHATROLINK-II , Single Phase 100 VAC , 200W

: Large Image : R88D-KN02L-ML2 OMRON AC Servodriver , MECHATROLINK-II , Single Phase 100 VAC , 200W

Product Details:

Place of Origin:	China
Brand Name:	OMRON
Model Number:	R88D-KN02L-ML2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	New in original box
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:

OMRON

Model:

R88D-KN02L-ML2

Origin:

China

Typr:

Driver

Highlight:

ac servo motor

electric servo motor

R88D-KN02L-ML2 OMRON AC Servodriver , MECHATROLINK-II , Single Phase 100 VAC , 200W

AC Servo Drives

General Specifications

Item			Specifications
Ambient operating temperature and operating humidity			0 to +55C, 85% max. (with no condensation)
Storage ambient temperature and humidity			-20 to +65C, 85% max. (with no condensation)
Operating and storage atmosphere			No corrosive gases
Vibration resistance			10 to 60 Hz and at an acceleration of 5.88 m/s² or less (Not to be run continuously at the resonance point)
Insulation resistance			Between power supply terminal/power terminal and FG terminal: 0.5 MΩ min. (at 500 VDC Megger)
Dielectric strength			Between power supply/power line terminals and FG terminal: 1,500 VAC for 1 min at 50/60 Hz
Protective structure			Built into panel
International standard	EC directives	EMC directive	EN55011, EN61000-6-2, IEC61800-3
		Low voltage directive	EN61800-5-1
		Machinery directives	EN954-1 (Cat.3), EN ISO 13849-1: 2008 (PLc,d), ISO 13849-1: 2006 (PLc,d), EN61508 (SIL2), EN62061 (SIL2), EN61800-5-2 (STO), IEC61326-3-1 (SIL2)
	UL standards		UL508C
	CSA standards		CSA C22.2 No.14
	Korean Radio Regulations (KC)		Certified

Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.

Characteristics

Servo Driver with 100 VAC Input Power
for Single-phase input type

Item			R88D-KNA5L-ML2	R88D-KN01L-ML2	R88D-KN02L-ML2	R88D-KN04L-ML2
Continuous output current (rms)			1.2 A	1.7 A	2.5 A	4.6 A
Input power supply	Main circuit	Power supply capacity	0.4 KVA	0.4 KVA	0.5 KVA	0.9 KVA
		Power supply voltage	Single-phase 100 to 120 VAC (85 to 132 V), 50/60 Hz
		Rated current	1.7 A	2.6 A	4.3 A	7.6 A
		*Heat value 1**	11 W	16.6 W	21 W	25 W
	Control circuit	Power supply voltage	Single-phase 100 to 120 VAC (85 to 132 V), 50/60 Hz
	Control circuit	*Heat value 1**	4 W	4 W	4 W	4 W
Weight			Approx. 0.8 kg	Approx. 0.8 kg	Approx. 1.0 kg	Approx. 1.6 kg
Maximum applicable motor capacity			50 W	100 W	200 W	400 W
Applicable Servo- motors (R88M-)	3,000 r/min Servomotors	[INC]	K05030H	K10030L	K20030L	K40030L
	3,000 r/min Servomotors	[ABS]	K05030T	K10030S	K20030S	K40030S
	2,000 r/min Servomotors	[ABS]	-	-	-	-
	1,000 r/min Servomotors	[ABS]	-	-	-	-

Similar Model Products

Specifications		Model
Power Model Supply Voltage	Applicable Servomotor Capacity	Model
Single-phase 100 VAC	50 W	R88D-KNA5L-ML2
	100 W	R88D-KN01L-ML2
	200 W	R88D-KN02L-ML2
	400 W	R88D-KN04L-ML2
Single-phase/three-phase 200 VAC	100 W	R88D-KN01H-ML2
	200 W	R88D-KN02H-ML2
	400 W	R88D-KN04H-ML2
	750 W	R88D-KN08H-ML2
	1 kW	R88D-KN10H-ML2
	1.5 kW	R88D-KN15H-ML2
Three-phase 200 VAC	2 kW	R88D-KN20H-ML2
	3 kW	R88D-KN30H-ML2
	5 kW	R88D-KN50H-ML2
Three-phase 400 VAC	600 W	R88D-KN06F-ML2
	1 kW	R88D-KN10F-ML2
	1.5 kW	R88D-KN15F-ML2
	2 kW	R88D-KN20F-ML2
	3 kW	R88D-KN30F-ML2
	5 kW	R88D-KN50F-ML2
