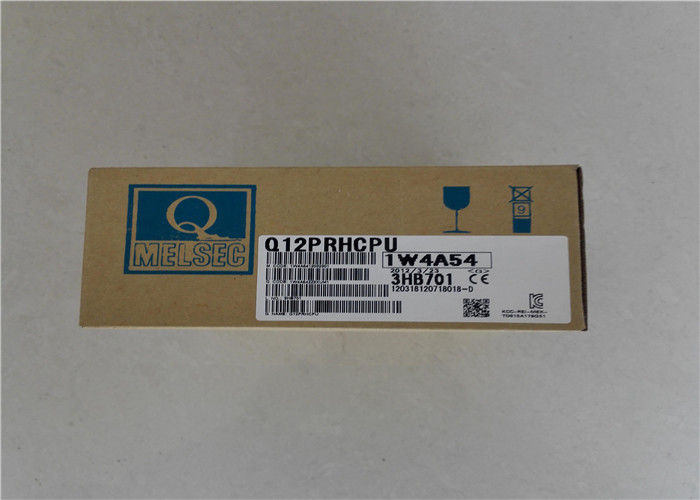

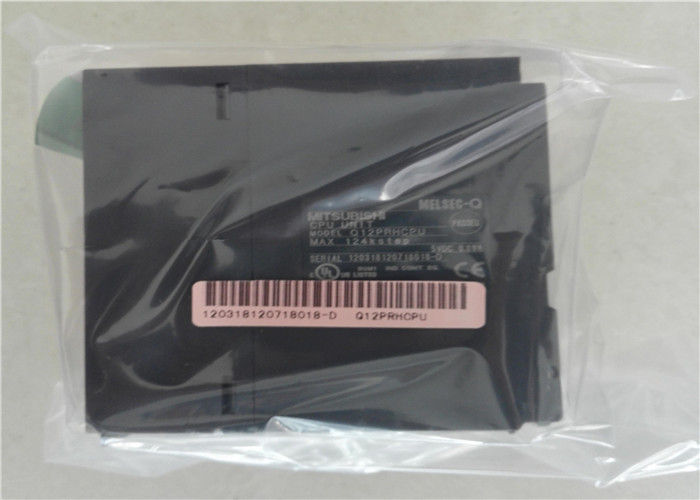

Q12PRHCPU Mitsubishi Universal Model Redundant Power Supply Module 5 V DC/3 A

Mitsubishi Universal model Redundant Power Supply Module Q12PRHCPU

Q12PRHCPU Description



Q12PRHCPU Key Features

• Redundant Control Architecture: Full hot-swap redundant operation with automatic tracking and bumpless switchover between primary and backup CPUs via a dedicated tracking port, ensuring zero downtime.
• High-Speed Processing: Basic instruction execution time of 34ns (LD instruction) for rapid response and high system throughput.
• Large Memory Capacity: 124K steps (496KB) of program memory and extensive data memory for complex control programs and large data sets.
• Extensive I/O Capacity: Supports up to 4096 physical I/O points and 8192 internal I/O device points for large-scale system integration.
• Multi-Protocol Support: Compatible with standard industrial communication protocols for seamless integration with various network modules.

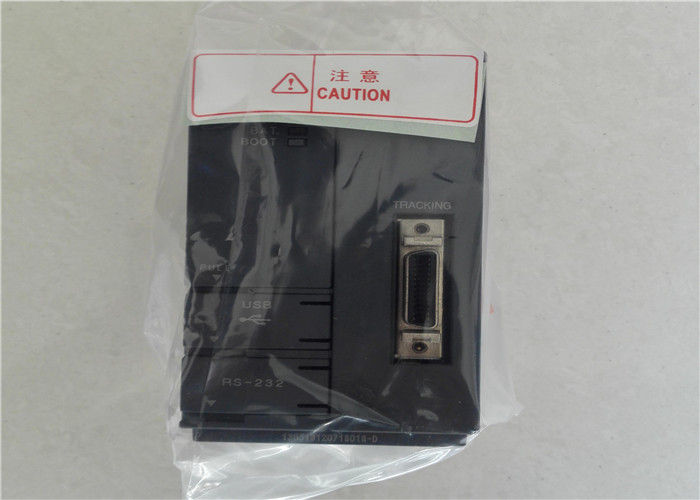

• Dual Programming Interfaces: Equipped with USB (Type-B) and RS-232 ports for fast programming, monitoring, and diagnostics.
• Memory Card Expansion: Built-in interface for SRAM, Flash, or ATA memory cards to expand data logging and program storage capacity.
• Process Control Optimized: Supports dedicated process control languages and advanced PID algorithms for precise regulation of temperature, pressure, flow, and level.
• Robust Environmental Resistance: Wide operating temperature range and high resistance to shock, vibration, and industrial contaminants.
• Comprehensive Diagnostics: Built-in self-diagnosis, error logging, and real-time status monitoring via LED indicators.
• Global Safety Certifications: Complies with international standards including CE, UL/cUL, RoHS, and major marine certifications.
• Flexible Mounting: Standard rack-mount design for easy installation in modular PLC racks.

Q12PRHCPU Materials & Applications

Materials

• Housing: High-strength, flame-retardant thermoplastic engineering polymer with excellent insulation and impact resistance.
• Circuit Board: Multi-layer FR-4 glass epoxy PCB with heavy copper traces for enhanced thermal management and signal integrity.
• Connectors: Industrial-grade USB Type-B and 9-pin D-Sub (RS-232) connectors with gold-plated contacts for corrosion resistance.
• Internal Components: High-performance microprocessor, solid-state memory chips, opto-isolators, and industrial-grade passive components.
• Mounting Hardware: Steel rail clips and locking mechanisms for secure rack mounting.
• Indicators: Long-life LED status indicators for power, run, error, communication, and redundancy mode.
• Surface Finish: Anti-static, chemical-resistant coating for protection in harsh industrial environments.

Typical Applications

• Continuous Process Industries: Oil refineries, chemical plants, and pharmaceutical manufacturing requiring 24/7 operation.
• Power Generation & Distribution: Thermal power plants, hydroelectric facilities, and smart grid control systems.
• Water & Wastewater Treatment: Municipal water purification, sewage treatment, and desalination plants.
• Metals & Mining: Smelting operations, ore processing, and material handling systems.
• Petrochemical Facilities: Gas processing, pipeline monitoring, and storage terminal automation.
• Marine & Offshore: Shipboard automation, offshore drilling rigs, and FPSO control systems.
• Food & Beverage: Large-scale processing and packaging lines with strict hygiene and safety standards.
• Pulp & Paper: Continuous paper manufacturing and processing lines.
• Cement & Building Materials: Kiln control and raw material processing systems.
• Critical Manufacturing: Semiconductor fabrication and high-precision assembly lines.

Q12PRHCPU Important Parameters
