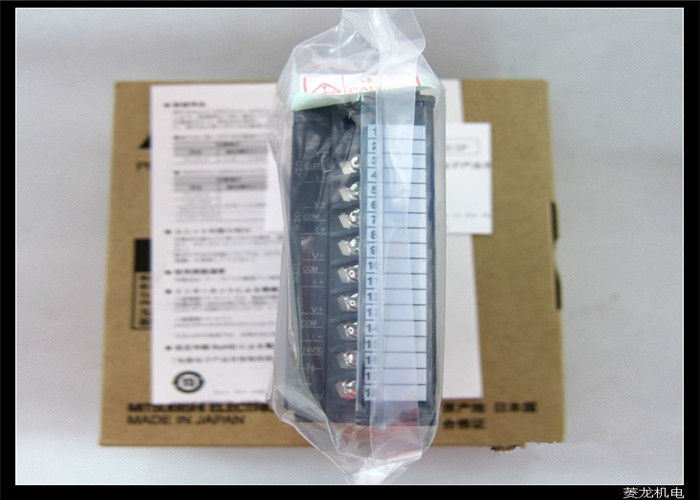

Q68DAVN Mitsubishi Universal Model Redundant Power Supply Module 5 V DC/3 A

Q68DAVN Description

Q68DAVN Key Features

• 8 Independent Voltage Output Channels: Compact 8‑channel design for high‑density analog control.
• Dual Resolution Modes: Normal (12‑bit) and high (16‑bit) resolution for flexible precision requirements.
• Multiple Voltage Ranges: User‑selectable ranges: ±10 V, 0–5 V, 1–5 V DC.
• High Conversion Speed: 80 μs per channel for fast dynamic response.
• High Accuracy: ±0.1% (25 °C); ±0.3% (0–55 °C) for reliable performance.
• Isolation Protection: Photocoupler isolation between I/O and controller power; transformer isolation for external supply.
• Short‑Circuit Protection: Built‑in protection safeguards outputs against overload and short circuits.
• External 24 V DC Power: Reduces backplane load and enhances noise immunity.
• LED Status Indicators: Power and error LEDs for real‑time diagnostics.
• Compact DIN‑Rail Mount: Standard form factor for easy cabinet integration.

Q68DAVN Materials & Applications

Materials

• Housing: Flame‑retardant ABS/PC blend, industrial‑grade impact resistance and insulation.
• PCB: Glass‑epoxy laminate with gold‑plated contacts for signal integrity.
• Terminals: Nickel‑plated screw terminals (18‑pin) for secure field wiring.
• Isolation Components: Photocouplers and transformers for electrical isolation.
• Protection Circuitry: Surge suppressors and EMC shielding for harsh environments.

Typical Applications

• Process Automation: Precision control of valves, pumps, and actuators in chemical, water, and energy plants.
• Manufacturing: Analog control for assembly lines, packaging machinery, and robotics.
• HVAC & Building Automation: Regulation of heating, ventilation, and air conditioning systems.
• Power & Energy: Control of generators, inverters, and power distribution equipment.
• Test & Measurement: Providing stable analog setpoints for laboratory and industrial test benches.

Q68DAVN Important Parameters
