Q68DAIN Universal Model Redundant Power Supply Module 100 To 240 V AC 5 V DC/3 A

Name: Q68DAIN Universal Model Redundant Power Supply Module 100 To 240 V AC 5 V DC/3 A
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: Q68DAIN
Price: 10000 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Q68DAIN
Certification:	CE
Model Number:	Q68DAIN

Detail Information

Place of Origin:

Japan

Brand Name:

Q68DAIN

Certification:

Model Number:

Q68DAIN

Modenl Number:

Q68DAIN

Country Of Origin:

Japan

Program Capacity:

8 K Steps

Basic Operation Processing Speed (LD Instruction):

0.12 μs

Input:

100 To 240 V AC

Output:

5 V DC/3 A

Highlight:

High Light

Highlight:

Universal redundant power supply module 100-240V AC

Redundant power supply module 5V DC 3A

Universal model power supply with warranty

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

NEW AND ORIGINAL

Delivery Time:

3-5DAYS

Payment Terms:

T/T, Western Union,paypal

Supply Ability:

100

Product Description

Universal model Redundant Power Supply Module Q68DAIN

Q68DAIN Description

The Q68DAIN is a high‑performance 8‑channel digital‑to‑analog (D/A) converter module designed for programmable controller systems. It converts digital control values into precise analog current signals (0–20 mA DC) for driving field devices such as valves, actuators, and indicators. Supporting both standard and high‑resolution modes, it delivers fast conversion speed and accurate control in industrial process and motion control applications.

Q68DAIN Key Features

8‑Channel Current Output: Provides 8 independent analog current outputs (0–20 mA DC) for multi‑loop control.
Dual Resolution Modes: Standard resolution (–4096 to +4095) and high resolution (–12288 to +12287) for enhanced precision.
Fast Conversion Speed: 80 μs per channel, enabling rapid response in dynamic control systems.
High Accuracy: ±0.1% (25°C) and ±0.3% (0–55°C) full‑scale error for reliable performance.
Output Short‑Circuit Protection: Built‑in protection prevents damage from accidental short circuits.
Isolation Design: Photocoupler isolation between I/O and controller power; transformer isolation for analog output.
Compact Form Factor: Space‑saving design with 18‑point terminal block for easy wiring.
Long‑Term Reliability: E2PROM supports up to 100,000 write cycles for configuration storage.

Q68DAIN Materials & Applications

Materials

Housing: Flame‑retardant ABS plastic, impact‑resistant and dust‑proof.
Circuit Board: FR‑4 fiberglass epoxy with conformal coating for moisture and corrosion resistance.
Terminals: Nickel‑plated copper alloy, suitable for 0.3–0.75 mm² wires.
Power Components: High‑efficiency DC‑DC converters and surge protection devices.
Connectors: Industrial‑grade pin headers for stable backplane connection.

Typical Applications

Process Control: Analog control of flow, pressure, and temperature in chemical, water, and HVAC systems.
Motion Control: Speed/torque command for variable‑frequency drives and servo amplifiers.
Valve & Actuator Control: Precision positioning of proportional valves and pneumatic actuators.
Instrumentation: Driving analog indicators, recorders, and panel meters.
General Automation: Any system requiring digital‑to‑analog conversion for 0–20 mA current signals.

Q68DAIN Important Parameters

Parameter	Specification
Part Number	Q68DAIN
Module Type	8‑Channel Analog Current Output Module
Number of Channels	8
Digital Input Range (Standard)	–4096 to +4095
Digital Input Range (High‑Res)	–12288 to +12287
Analog Output	0–20 mA DC
Max Output Current	21 mA
Conversion Speed	80 μs/channel
Accuracy (25°C ±5°C)	±0.1% of full scale
Accuracy (0–55°C)	±0.3% of full scale
External Load Resistance	0–600 Ω
Isolation (I/O ↔ Controller)	Photocoupler, 500 VAC 1 min
Isolation (Analog ↔ External)	Transformer, 500 VAC 1 min
Dielectric Withstand Voltage	500 VAC, 1 minute
Insulation Resistance	≥20 MΩ @ 500 VDC
Supply Voltage	24 VDC (±20%/–15%)
Current Consumption	0.2 A (inrush: 2.5 A)
Terminal Block	18‑point
Wire Size	0.3–0.75 mm²
Dimensions (W×H×D)	90 mm × 97 mm × 27 mm
Weight	Approx. 0.2 kg
Operating Temperature	0°C ~ +55°C
Storage Temperature	–20°C ~ +70°C
Certifications	CE, UL, cUL, RoHS

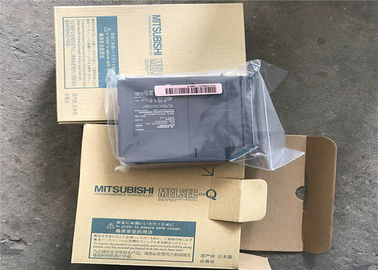

Q68DAIN Universal Model Redundant Power Supply Module 100 To 240 V AC 5 V DC/3 A 1
