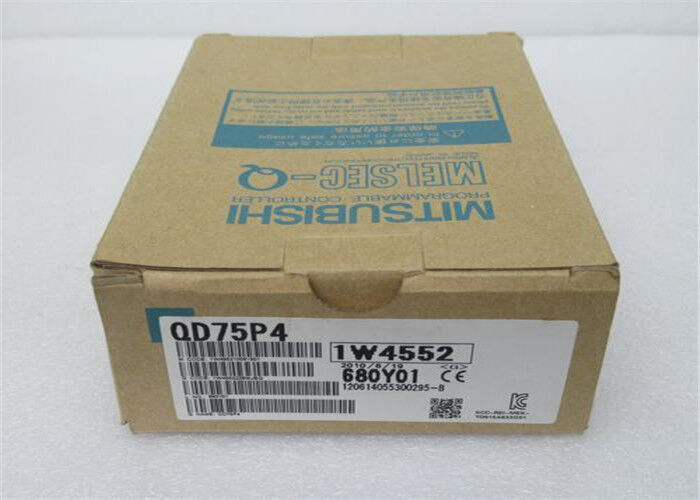

Mitsubishi QD75P4 Universal Model Redundant Power Supply Module 8 K Steps

Mitsubishi QD75P4 Universal model Redundant Power Supply Module

QD75P4 Description

QD75P4 Features

• •
  Independent 4-Axis Control:Can control up to 4 axes simultaneously and independently, allowing for complex multi-axis machine sequences.
• •
  Dedicated Motion CPU:Offloads positioning control from the main PLC CPU, ensuring stable and high-speed operation without affecting the main program scan time.
• •
  Multiple Control Methods:Supports various positioning methods including:
  • •
    Positioning Control (PTP):Moves to specified absolute or relative positions.
  • •
    Speed Control:Runs an axis at a specified constant speed.
  • •
    Jogging:For manual positioning and machine setup.
  • •
    Linear Interpolation:Synchronizes 2 or 3 axes to move in a straight path.
• •
  Flexible Data Setup:Positioning data (target position, speed, acceleration/deceleration time) can be set and stored in the module's buffer memory and called by the PLC program.
• •
  Smooth Control:Features S-curve acceleration/deceleration to reduce mechanical shock and vibration during starts and stops.
• •
  Easy Setup with GX Works2:Configuration and programming are streamlined using Mitsubishi's integrated engineering software, GX Works2, which provides dedicated setup screens for the positioning parameters.

QD75P4  Material & Primary Uses

• •
  Material:The module is constructed with a robust plastic (PC/ABS) housing and a metal connector/cage, designed to withstand the electrical noise, vibration, and temperature variations typical in industrial environments.
• •
  Primary Uses:
  • •
    Automated Machinery:Controlling the movement of arms, tables, and gantries in assembly and packaging machines.
  • •
    Semiconductor Manufacturing:Precise wafer handling and positioning.
  • •
    Machine Tools:Controlling axes for drilling, milling, and cutting operations.
  • •
    Robotic Integration:Acting as the motion controller for Cartesian or gantry-style robot systems.
  • •
    Material Handling:Conveyor line indexing and product positioning.

QD75P4 Important Parameters

性能仕様
