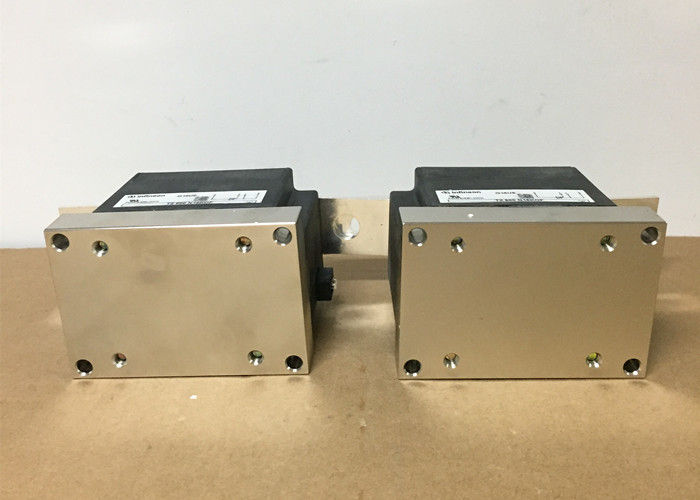

NEW Infineon Single Thyristor Modules TD330N12KOF 50 mm Power BLOCK

Large Image :  NEW Infineon Single Thyristor Modules TD330N12KOF 50 mm Power BLOCK

Product Details:

Place of Origin: GERMANY
Brand Name: Infineon
Certification: CE
Model Number: TD330N12KOF

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: In Stock
Payment Terms: T/T / Paypal
Supply Ability: 50
Detailed Product Description
Product Name: Thyristor Module Model No.: TD330N12KOF
Brand: Infineon Condition: NEW
Stock: 20 Size: 50 Mm
High Light:

plc power supply module

,

diode redundancy module

NEW Infineon Single Thyristor Modules TD330N12KOF 50 mm Power BLOCK





Description



50 mm Power Block Thyristor/ Diode Modules for Phase Control are designed and assembled with high reliable pressure contact technology using an isolated copper base plate.





Order Information



Sales Product Name TD330N12KOF
OPN TD330N12KOFHPSA2
Product Status active and preferred
Package name BG-PB50AT-1
Order online

Buy online

Completely lead free yes
Halogen free no
RoHS compliant yes
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY


Parametrics

Parametrics TD330N12KOF
(diT/dt)cr [A/µs] (@DIN IEC 747- 6) 250.0
Configuration SCR / Diode Phase Control
Housing Power Block 50 mm
IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin) 330/85
IFSM / ITSM [A] (@10ms, Tvj max) 10000.0
RthJC [K/W] (@180° el sin) max 0.112
Tvj [°C] max 130.0
VDRM / VRRM [V] 1600.0
VDRM/ VRRM (V) 1600.0 V
VT0 [V] (@Tvj max) max 0.8
rT [mΩ] (@Tvj max) max 0.5
∫I2dt [A²s · 103] (@10ms, Tvj max) 500.0





Summary of Features:

  • Pressure contact technology for high reliability
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness

Benefits:

  • Fail safe
  • Preventing arcing on fail
  • Easy mounting
  • Fuseless design possible due to high overload capability
  • UL recognized



Typical Applications



  • Soft starter
  • Rectifier for drives applications
  • Crowbar applications
  • Power controllers
  • Rectifiers for UBS
  • Battery chargers
  • Static switches



Similiar Models:



TZ500N18KOF TZ500N16KOF TZ500N14KOF TZ500N12KOF TZ600N14KOF
TZ600N16KOF TZ600N12KOF TZ425N18KOF TZ425N16KOF TZ425N14KOF
TZ425N12KOF TZ430N22KOF TZ430N20KOF TZ400N26KOF TZ400N24KOF
TZ400N20KOF TZ310N26KOF TZ310N24KOF TZ310N22KOF TZ310N20KOF
TZ240N36KOF TZ240N34KOF TZ240N32KOF TZ240N30KOF TZ150N26KOF
TZ860N16KOF TIM TZ860N16KOF TZ810N22KOF TIM TZ810N22KOF TZ800N18KOF TIM
TZ800N18KOF TZ800N16KOF TIM TZ800N16KOF TZ800N14KOF TZ800N12KOF
TZ740N22KOF TZ740N22KOF TIM TZ740N20KOF TZ630N28KOF TZ630N24KOF
TZ630N22KOF TZ530N36KOF TZ530N32KOF DT92N16KOF DT61N16KOF
DT142N12KOF DT250N16KOF DT170N20/14KOF TD425N16KOF TD570N16KOF
