Q80BD-J71GP21-SX Mitsubishi Redundant Power Supply Module 5 V DC/3 A 100 To 240 V AC

Q80BD-J71GP21-SX Description

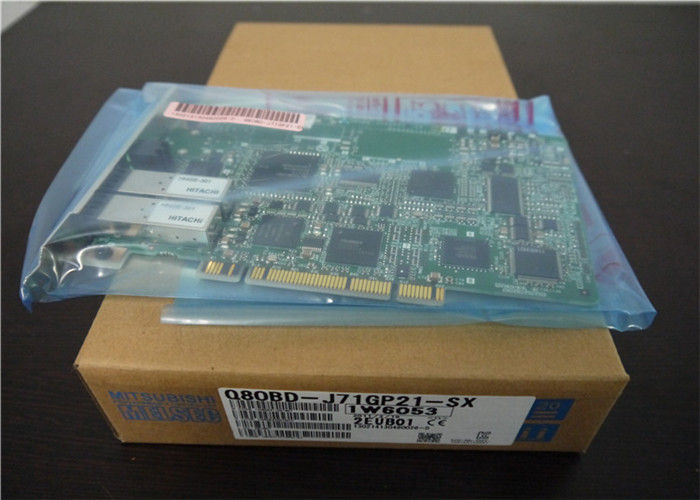

The Q80BD-J71GP21-SX is a high-speed PCI/PCI-X network interface board designed for industrial automation systems, enabling seamless connection between personal computers and CC-Link IE Control networks. It operates as either a management station or a standard station, utilizing 1Gbps fiber-optic communication to deliver deterministic, real-time data exchange for high-performance factory automation. This module supports universal PCI bus compatibility, ensuring broad integration with industrial PCs, and comes with dedicated configuration software for simplified network setup. With its robust optical fiber interface, it provides superior noise immunity and long-distance communication capabilities, making it ideal for large-scale, high-speed industrial control networks.

Q80BD-J71GP21-SX Key Features

• 1Gbps High-Speed Communication: Full-duplex fiber-optic transmission at 1Gbps, supporting ultra-fast cyclic and transient data transfer for demanding automation applications.
• Dual Station Functionality: Operates as both a management station (master) and standard station (local), offering flexible network configuration.
• Universal PCI/PCI-X Compatibility: Supports standard PCI and PCI-X bus slots, ensuring broad compatibility with most industrial PCs.
• Multi-Mode Fiber Optic Interface: Equipped with dual LC connectors for 1000BASE-SX compliant multi-mode fiber (GI), providing excellent noise resistance.
• Large Data Capacity: Supports extensive link points: up to 128K points (256K bytes) in extended mode, enabling massive data sharing across the network.
• Deterministic Real-Time Performance: Separates cyclic control data transmission from transient messaging, guaranteeing consistent scan times even under heavy network load.
• Easy Configuration: Includes dedicated Windows software utility for intuitive setup of network parameters, station numbers, and channel configurations.
• OS Compatibility: Supports multiple operating systems, with driver packages available for Windows and development guides for other OS environments.
• Industrial-Grade Reliability: Designed for continuous operation in harsh industrial environments with high resistance to electrical noise.
• Compact Form Factor: Slim, standard PCI card design (18.5mm width) for easy installation in industrial computer chassis.
• Comprehensive Compliance: Certified to meet CE, UL/cUL, and UKCA safety and EMC standards.

Q80BD-J71GP21-SX Materials & Applications

Materials

• PCB: High-performance FR-4 glass epoxy multi-layer circuit board for optimal signal integrity and noise suppression.
• Housing Bracket: Nickel-plated steel for EMI shielding and robust mechanical mounting.
• Optical Transceivers: Industrial-grade fiber optic modules with long-life laser diodes.
• Connectors: Dual LC-type fiber optic connectors for secure, low-loss optical cable connection.
• Electronic Components: High-temperature, industrial-grade integrated circuits and passive components for extended service life.
• Integrated Circuitry: Advanced ASICs for network protocol processing and high-speed data handling.
• Insulation & Coatings: Conformal coating on PCB to protect against dust, humidity, and industrial pollutants.

Typical Applications

• Industrial PC Integration: Connecting management PCs to high-speed controller networks for system monitoring and programming.
• Large-Scale Manufacturing Systems: Automotive assembly lines, semiconductor fabrication, and high-speed packaging machinery.
• Multi-Controller Synchronization: Coordination between multiple PLCs, motion controllers, and robot controllers.
• Process Automation: Real-time data acquisition and control in petrochemical, power generation, and water treatment facilities.
• High-Speed Motion Control Networks: Synchronized control for multi-axis robotics, CNC machines, and transfer lines.
• Smart Factory Infrastructure: Core communication layer for Industry 4.0 applications requiring massive data throughput.
• Distributed I/O Systems: High-speed connection to remote I/O racks over long distances.
• Machine-to-Machine (M2M) Communication: Reliable inter-machine data exchange in automated production cells.

Q80BD-J71GP21-SX Important Parameters
