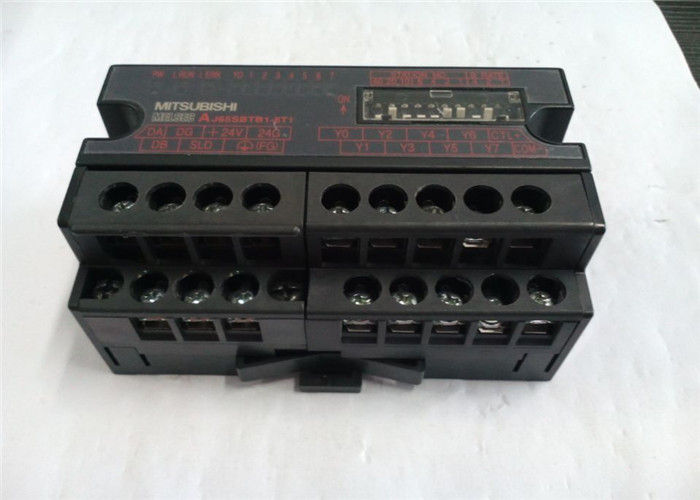

AJ65SBTB1-8T1 Mitsubishi Universal Model Redundant Power Supply Module 0.12 μS

AJ65SBTB1-8T1 Description

AJ65SBTB1-8T1 Key Features

• 8-Channel Sink Transistor Outputs: 8 independent DC transistor (NPN sink) output points, rated 0.5 A per channel, supporting 12/24 VDC loads.
• CC-Link Network Compatibility: Operates as a single remote station on CC-Link networks (max 10 Mbps), supporting up to 64 remote stations per network for large-scale distributed I/O expansion.
• Optical Isolation: Built-in optocoupler isolation (500 VAC) between CC-Link communication and output circuits, protecting against electrical noise and ground loops.
• Compact & Space-Saving: Slim form factor (118 × 50 × 40 mm), lightweight (0.14 kg), 35 mm standard DIN-rail mounting for easy cabinet integration.
• Fast Switching Performance: Low on-state voltage drop (<1.5 V at 0.5 A), minimal off-state leakage current (<0.1 mA), and high switching speed for precise load control.
• Screw-Terminal Wiring: Secure screw-clamp terminals for reliable field wiring, supporting 1-wire common connection for all 8 outputs.
• Wide Operating Range: Compatible with 10.2–26.4 VDC external load power, suitable for standard industrial DC power systems.
• Industrial Reliability: High resistance to vibration, shock, and temperature fluctuations; IP2X finger-protected terminal design for safety.
• Global Certifications: CE, UL/cUL, EAC, UKCA certified for worldwide industrial deployment.

AJ65SBTB1-8T1 Materials & Applications

Materials

• Housing & Enclosure: High-strength, flame-retardant reinforced engineering plastic (UL94 V-0) with anti-static properties, resistant to industrial dust and chemicals.
• Circuit Board: Multi-layer FR-4 PCB with surface-mount industrial-grade components, conformal coating for moisture and corrosion protection.
• Output Circuit: High-performance NPN power transistors, optocoupler isolation chips, and precision current-limiting resistors for stable switching.
• Terminals: Nickel-plated copper screw terminals, ensuring corrosion resistance and secure electrical connections for field wiring.
• Internal Components: Industrial microcontroller, CC-Link communication transceiver, and surge/overcurrent protection devices for network and load safety.

Typical Applications

• Factory Automation: Conveyor systems, solenoid valves, indicator lights, relays, and small DC actuators in assembly lines.
• Packaging & Printing: Labeling machines, carton sealers, printers, and winding equipment requiring discrete DC output control.
• Material Handling: Sorting machines, feeders, palletizers, and pneumatic/hydraulic valve control.
• Machine Tools: CNC machines, grinders, and small robotic end-effectors with DC solenoid/valve control.
• General Industrial Control: Control panels, test equipment, and distributed I/O nodes in automotive, electronics, and food processing plants.

AJ65SBTB1-8T1 Important Parameters
