Product Details:
Payment & Shipping Terms:
|
| Model: | MR-J4-200A | Output Rated Voltage: | 3-phase 170 VAC |
|---|---|---|---|
| Output Rated Current: | 17.0A | Voltage/Frequency: | 3-phase 200 VAC To 240 VAC, 50/60 Hz |
| Weight: | 2.5KG | Condition: | New |
| High Light: | servo motor amplifier,servo drive amplifier |
||

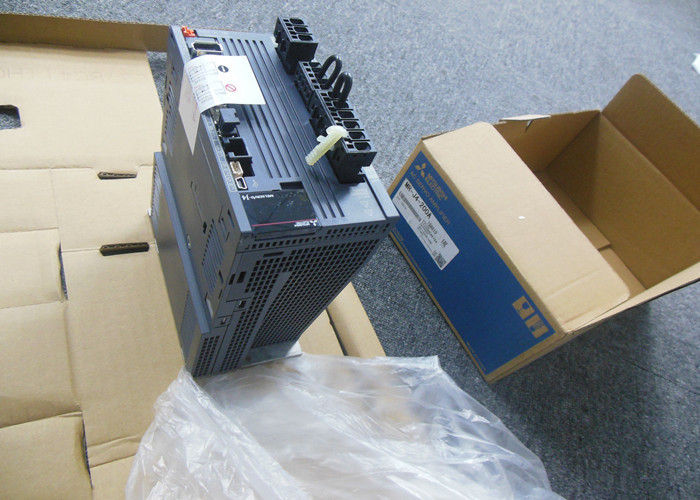

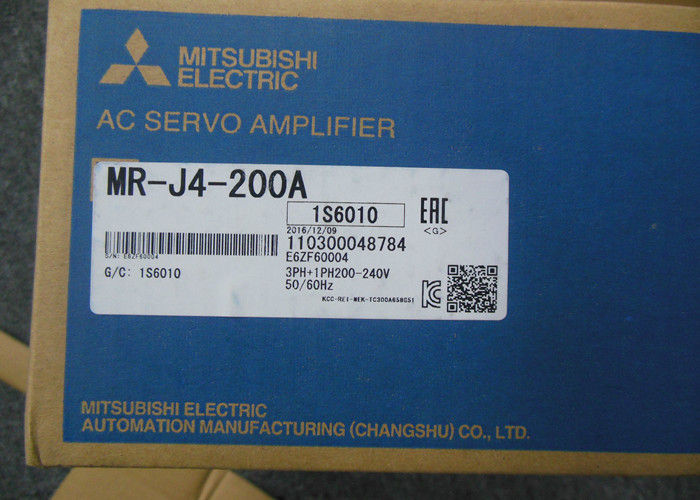

Mitsubishi SERVO AMPLIFIER MR-J4-200A 2KW 200V Servo Drive NEW in stock
Specification of Servo Drive MR-J4-200A
| mode name | MR-J4-200A | |
| Stocked Item | S | |
| Output | Rated Voltage | 3-phase 170 VAC |
| Rated Current (A) | 11.0 | |
|
Main Circuit Power Supply |
Voltage/Frequency | 3-phase 200 VAC to 240 VAC, 50/60 Hz |
| Rated Current (A) | 10.5 | |
| Permissible Voltage Fluctuation | 3-phase 170 VAC to 264 VAC | |
| Permissible Frequency Fluctuation | ±5% maximum | |
|
Control Circuit Power Supply |
Voltage/Frequency | 1-phase 200 VAC to 240 VAC, 50/60 Hz |
| Rated Current (A) | 0.2 | |
| Permissible Voltage Fluctuation | 1-phase 170 VAC to 264 VAC | |
| Permissible Frequency Fluctuation | ±5% maximum | |
| Power Consumption (W) | 30 | |
| Interface Power Supply | 24 VDC ±10% (required current capacity: 0.5 A (including CN8 connector signal)) | |
| Load-Side Encoder Interface | Mitsubishi high-speed serial communication | |
|
Tolerable Regenerative Power of the Built-in Regenerative Resistor(W) |
100 | |
| Control Method | Sine-wave PWM control/current control method | |
| Dynamic Brake | Built-in | |
| Protective Functions | Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection,encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, over-speed protection, error excessive protection, magnetic pole detection protection, linear servo control fault protection | |
|
Position Control Mode |
Maximum Input Pulse Frequency | 4 Mpps (when using differential receiver), 200 kpps (when using open-collector) |
| Positioning Feedback Pulse | Encoder resolution: 22 bits | |
| Command Pulse Multiplying Factor | Electronic gear A/B multiple, A: 1 to 16777216, B: 1 to 16777216, 1/10 < A/B < 4000 | |
| Positioning Complete Width Setting | 0 pulse to ±65535 pulses (command pulse unit) | |
| Error Excessive | ±3 rotations | |
| Torque Limit | Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque) | |
|
Speed Control Mode |
Speed Control Range | Analog speed command 1:2000, internal speed command 1:5000 |
| Analog Speed Command Input | 0 V DC to ±10 V DC/rated speed (Speed at 10 V is changeable with | |
| Speed Fluctuation Rate |
±0.01% maximum (load fluctuation 0% to 100%), 0% (power fluctuation: ±10%) ±0.2%maximum(ambient temperature 25 ± 10 centigrade degree) only when using analog speed command |
|
| Torque Limit | Set by parameters or external analog input (0V DC to +10 VDC/maximum torque) | |
|
Torque Control Mode |
Analog Torque Command Input | 0VDCto±8VDC/maximum torque (input impedance: 10 to 12 kohm) |
| Speed Limit | Set by parameters or external analog input (0VDC to ± 10 VDC/rated speed) | |
| Fully Closed Loop Control | Available in the future | |
| Safety Function | STO (IEC/EN 61800-5-2) | |
| Communication Function | USB: Connect a personal computer (MR Configurator2 compatible) | |
| Structure (IP Rating) | Force cooling, open (IP20) | |
| Close Mounting | Possible | |
| Weight (kg) | 2.1 | |
Similiar Models:
| Product Number | Description |
| MR-J4-100A | SERVO AMP 1KW 200V |
| MR-J4-100A4 | 1KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-100B | SERVO AMP 1KW 200V SSCNET |
| MR-J4-100B4 | 1KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-10A | 100W SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (200V 1-PHASE OR 3-PHASE) |
| MR-J4-10B | SERVO AMP 100W 200V SSCNET |
| MR-J4-11KA4 | 11KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-11KB4 | 11KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-15KA4 | 15KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-15KB4 | 15KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-200A | SERVO AMP 2KW 200V |
| MR-J4-200A4 | 2KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-200B | SERVO AMP 2KW 200V SSCNET |
| MR-J4-200B4 | 2KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-20A | SERVO AMP 200W 200V |
| MR-J4-20B | SERVO AMP 200W 200V SSCNET |
| MR-J4-22KA4 | 22KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-22KB4 | 22KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-350A | SERVO AMP 3.5KW 200V |
| MR-J4-350A4 | 3.5KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-350B | SERVO AMP 3.5KW 200V SSCNET |
| MR-J4-350B4 | 3.5KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-40A | SERVO AMP 400W 200V |
| MR-J4-40B | SERVO AMP 400W 200V SSCNET |
| MR-J4-500A | SERVO AMP 5KW 200V |
More:
| Product Number | Description |
| MR-J4-500A4 | 5KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-500B | SERVO AMP 5KW 200V SSCNET |
| MR-J4-500B4 | 5KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-60A | SERVO AMP 600W 200V |
| MR-J4-60A4 | 600W SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-60B | SERVO AMP 600W 200V SSCNET |
| MR-J4-60B4 | 600W SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-700A | SERVO AMP 7KW 200V |
| MR-J4-700A4 | 7KW SERVO AMPLIFIER (DIGITAL OR ANALOGUE CONTROL) (400V 3-PHASE) |
| MR-J4-700B | SERVO AMP 7KW 200V SSCNET |
| MR-J4-700B4 | 7KW SERVO AMPLIFIER (SSCNET III BUS CONTROL) (400V 3-PHASE) |
| MR-J4-70A | SERVO AMP 750W 200V |
| MR-J4-70B | SERVO AMP 750W 200V SSCNET |
| MR-J40A | SERVO AMPLIFIER 2.5AMP 200-230VAC INPUT OUTPUT |
| MR-J40A-S31 | AC SERVO |
| MR-J40A1-UL | AC SERVO AMPLIFIER 100-120VAC 50/60HZ |
| MR-J40MA1-UL | SERVO AMPLIFIER 1PHASE 100-120VAC 50/60HZ |
| MR-J4W2-1010B | 2 AXIS AMP 200V 1KW-1KW SSCNET |
| MR-J4W2-22B | 2 AXIS AMP 200V 200W-200W SSCNET |
| MR-J4W2-44B | 2 AXIS AMP 200V 400W-400W SSCNET |
| MR-J4W2-77B | 2 AXIS AMP 200V 750W-750W SSCNET |
| MR-J4W3-222B | 3 AXIS AMP 200V 200W-200W-200W SSCNET |
| MR-J4W3-444B | 3 AXIS AMP 200V 400W-400W-400W SSCNET |
| MRJ40AUL | AC SERVO |
| MRJACN15K | HEAT SINK OUTSIDE MOUNTING ATTACHMENT |
Packaging & Delivery
Packaging Details
Cartons
Delivery Time
Whithin 3-5 days
