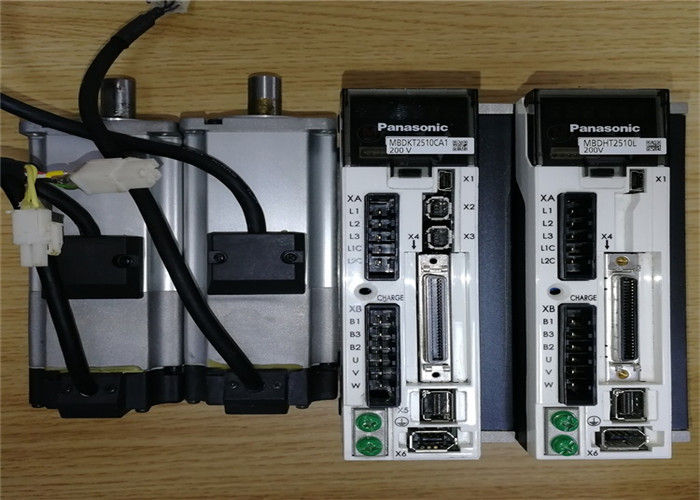

MHMJ042G1V + MBDKT2510E Panasonic 0.4KW 400W AC SERVO MOTOR DRIVER Controller

Name: MHMJ042G1V + MBDKT2510E Panasonic 0.4KW 400W AC SERVO MOTOR DRIVER Controller
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MHMJ042G1V + MBDKT2510E
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MHMJ042G1V + MBDKT2510E

Detail Information

Place of Origin:

Japan

Brand Name:

Panasonic

Certification:

Model Number:

MHMJ042G1V + MBDKT2510E

Brand:

Panasonic

Model Number:

MHMJ042G1V + MBDKT2510E

Country Of Origin:

Japan

Type:

Servo Motor

Power - Rated:

50W

Voltage - Rated:

100, 200VAC

RPM:

3000 RPM

Weight:

0.705 Lb (319.78g)

Highlight:

High Light

Highlight:

ewing machine servo motor

ac servo motor

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

NEW AND ORIGINAL

Delivery Time:

3-5DAYS

Payment Terms:

T/T, Western Unionm,PAYPAL

Supply Ability:

1000

Product Description

AC Motor Servomotor 3000 RPM 400W Incremental 200VAC MHMD042G1U Panasonic

MHMJ042G1V + MBDKT2510E Description

The Panasonic MHMJ042G1V + MBDKT2510E is a high-performance, compact Brushless DC (BLDC) motor and controller set designed for demanding industrial automation and robotics applications. This integrated solution combines a powerful, energy-efficient motor with a sophisticated digital drive, offering exceptional speed control, high torque density, and reliable operation. It is ideal for applications requiring precise motion control, rapid acceleration, and quiet performance in a compact form factor, such as automated guided vehicles (AGVs), conveyor systems, robotic arms, and medical equipment.

MHMJ042G1V + MBDKT2510E Features

•
High Power Density:Delivers high torque from a compact and lightweight motor body, saving space in machine design.
•
Energy Efficient:Utilizes rare-earth neodymium magnets for high magnetic flux, resulting in excellent efficiency and lower power consumption.
•
Smooth & Quiet Operation:The brushless design eliminates physical commutation, reducing noise, minimizing maintenance, and providing exceptionally smooth rotation even at low speeds.
•
Advanced Control:The matching MBDKT2510E driver supports various control modes (e.g., speed, torque, position) and features advanced functions like internal programmable positioning (Point Table Mode) for standalone operation.
•
Excellent Responsiveness:Achieves rapid acceleration and deceleration due to low rotor inertia, enhancing machine throughput.
•
High Resolution Encoder:The motor is equipped with a high-resolution absolute encoder (17-bit), ensuring precise position feedback and accurate speed control.
•
Comprehensive Protection:The driver includes built-in protection circuits against overcurrent, overvoltage, and overheating, ensuring system safety and longevity.
•
Easy Integration:Supports standard industrial communication protocols like MECHATROLINK-III and Modbus RTU for seamless integration into automated control systems.

MHMJ042G1V + MBDKT2510E Material & Applications

•
Motor Material:The motor housing is typically made of high-strength aluminum alloy for effective heat dissipation and light weight. The rotor uses high-grade laminations and neodymium magnets.
•
Driver Material:The controller features a metal housing for robust electromagnetic compatibility (EMC) and protection in industrial environments.
•
Primary Applications:
- •
  Industrial Robots (Articulated arms, SCARA robots)
- •
  Automated Guided Vehicles (AGVs) and Mobile Robots
- •
  Semiconductor Manufacturing Equipment
- •
  Packaging Machinery and Conveyor Systems
- •
  Medical and Laboratory Automation
- •
  High-precision CNC axes and other factory automation equipment.

MHMJ042G1V + MBDKT2510E Important Parameters

The key specifications for the motor and driver set are summarized in the table below.

Parameter	Motor: MHMJ042G1V	Driver: MBDKT2510E
Motor Type	400W AC Servo Motor (Brushless DC)	Digital Servo Driver / Amplifier
Rated Output Power	400 W	-
Rated Torque	1.27 Nm	-
Maximum Torque	3.82 Nm	-
Rated Speed	3000 min⁻¹ (rpm)	-
Maximum Speed	6000 min⁻¹ (rpm)	-
Voltage Rating	200 VAC (Three-phase)	Single-phase/Three-phase 200-230 VAC, 50/60 Hz
Encoder	17-bit (131,072 p/rev) Absolute Encoder	-
Communication Interface	-	MECHATROLINK-III, Modbus RTU (RS-485)
Control Modes	-	Torque, Speed, Position (Point Table, Program)
Degree of Protection	IP65 (Splash-proof and dust-tight)	IP20 (For panel mounting, protected environment)
Key Dimensions	Square flange 60mm x 60mm; Shaft diameter: 14mm with keyway	-
Weight (Approx.)	1.6 kg

Item	Specifications
Part Number	MHMJ042G1V
Product details	High inertia, Lead wire type, IP65
Family Name	MINAS A5
Series	MHMJ Series
Type	High inertia
Special Order Product	Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and leadwire end.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	60 mm sq.
Flange size (mm)	60
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	0.9
Voltage specifications (V)	200
Rated output (W)	400
Rated current [Reference value] (A rms)	2.6
Holding brake	with
Mass (kg)	1.8
Oil seal	with
Shaft	Key-way, center tap
Rated torque (N ⋅ m)	1.3
Momentary Max. peak torque (N ⋅ m)	3.8
Max. current [Reference value] (A 0-p)	11.0
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	5000
Inertia of rotor ( x10^-4 kg ⋅ m²)	0.70
Recommended inertia ratio	30 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	20-bit Incremental system
Rotary encoder: Resolution	1048576

Our main product:Mitsubishi,Yaskawa,Rosemount,Siemens,Emerson/Delta V,Honeywell,AB,ABB,GE/Fanuc,Yokogawa Pressure Transmitter
