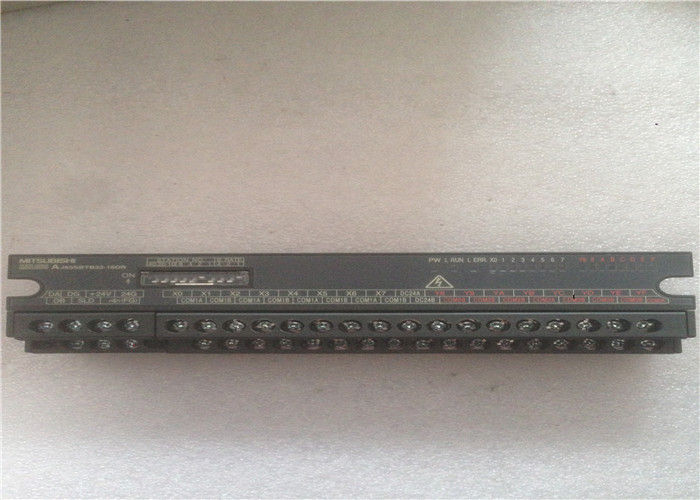

AJ65SBTB32-16DR 24VDC/240VAC Mitsubishi Universal Model Redundant Power Supply Module

AJ65SBTB32-16DR Description

AJ65SBTB32-16DR Key Features

• CC-Link Network Compatibility: Seamless integration with CC-Link industrial networks, occupying 1 station
• Mixed I/O Configuration: 8 x DC 24V inputs + 8 x relay outputs for versatile signal handling
• Relay Output Versatility: Supports both DC 24V and AC 240V loads up to 2A per point
• Fast Response Time: Input response ≤ 1.5ms; Output response ≤ 12ms
• High Noise Immunity: Optocoupler isolation between input/output and internal circuits
• Space-Saving Design: Slim profile (179 × 50 × 40 mm) for efficient DIN-rail mounting
• User-Friendly Wiring: Screw terminal block with finger protection for safe, secure connections
• Flexible Commoning: Inputs: 8-point common; Outputs: 4-point common (2 groups)
• Status Indication: Built-in LED indicators for power, network, input, and output status
• Durable Construction: Designed for industrial environments with high vibration resistance
• Wide Operating Temperature: -25°C to 75°C (storage) and 0°C to 55°C (operation)
• Global Certifications: UL, cUL, CE certified for worldwide use

AJ65SBTB32-16DR Materials & Applications

Materials

• Housing: High-strength, flame-retardant thermoplastic (UL 94 V-0)
• Terminals: Nickel-plated copper screw terminals for corrosion resistance and high conductivity
• Internal Circuit Board: FR-4 glass epoxy with conformal coating for dust and humidity protection
• Output Relays: High-quality electromechanical relays with long mechanical and electrical life
• Internal Components: Industrial-grade optocouplers, resistors, and capacitors for stable performance
• Mounting Base: Reinforced plastic for secure DIN-rail installation

Typical Applications

• Factory Automation: Machine tools, assembly lines, and conveyor systems
• Material Handling: Packaging machines, sorting systems, and robotic cells
• Process Control: Temperature, pressure, and level monitoring with relay control
• Building Automation: HVAC control, lighting, and access control systems
• Power Distribution: Circuit monitoring, breaker control, and power management
• Food & Beverage: Processing machinery, filling lines, and packaging equipment
• Automotive: Production lines, welding robots, and inspection systems
• Water Treatment: Pump control, valve actuation, and sensor monitoring

AJ65SBTB32-16DR Important Parameters
