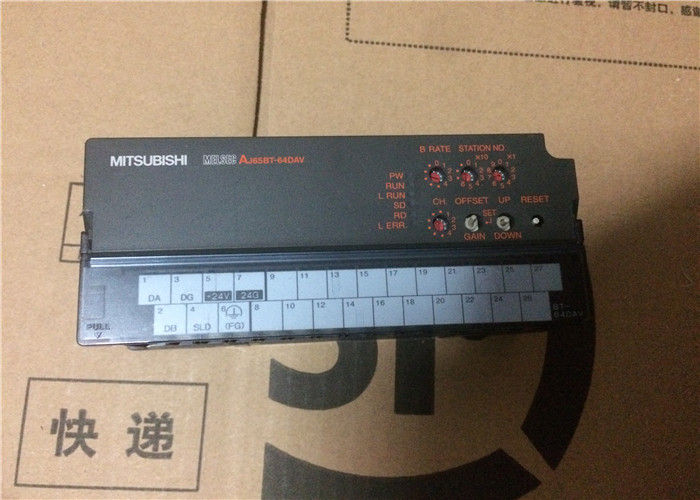

AJ65BT-64DAV Mitsubishi Universal Model Redundant Power Supply Module 12/24VDC (0.5A)

AJ65BT-64DAV Description

AJ65BT-64DAV Key Features

• 4-Channel Analog Voltage Output: Provides 4 independent channels of precision analog voltage output, each with -10V to +10V DC range.
• High Resolution & Accuracy: 16-bit encoded binary (12 bits effective) with 5mV resolution, ensuring high-precision signal conversion.
• Fast Conversion Speed: 1ms per channel conversion time for real-time control response.
• CC-Link Network Compatibility: Supports CC-Link Ver.1 remote device station with up to 10Mbps communication speed.
• Flexible Station Configuration: Occupies 2 stations on the CC-Link network, with station number set via DIP switch (0-63).
• Comprehensive Isolation: Transformer isolation between external power supply and analog outputs; 500V AC isolation for enhanced noise immunity.
• Output Protection: Built-in short-circuit protection for all analog output channels to prevent module damage.
• Adjustable Offset & Gain: User-configurable offset and gain settings for calibration and precision tuning.
• Wide Load Compatibility: Works with external load resistance from 2kΩ to 1MΩ for versatile connectivity.
• Diagnostic LEDs: Equipped with status indicators for communication and module operation monitoring.
• Global Certifications: Conforms to UL, cUL, CE (EMC/RoHS), and KC (EMC) standards.
• DIN-Rail Mountable: Compact design for easy DIN-rail installation in control cabinets.

AJ65BT-64DAV Materials & Applications

Materials

• Housing: High-strength, flame-retardant (UL94 V-0) industrial thermoplastic, resistant to vibration and mechanical stress.
• Circuit Board: Multi-layer FR-4 glass epoxy PCB with precision signal traces for stable analog output.

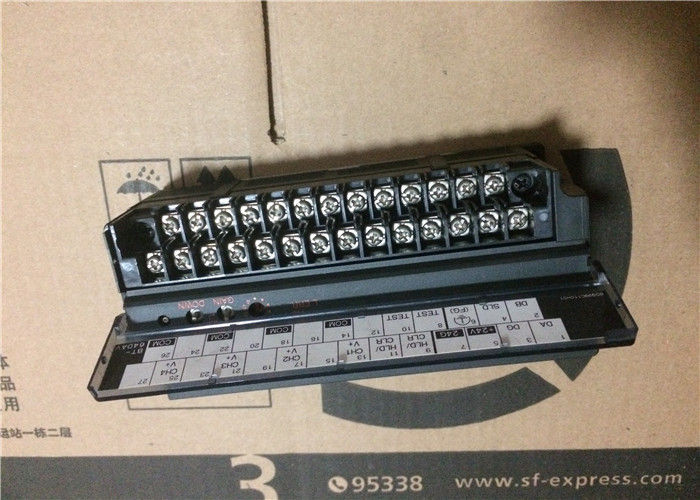

• Terminal Block: 27-point 2-piece terminal block (M3.5 screws) for secure and reliable wiring.
• Internal Components: Industrial-grade D/A converters, high-stability resistors, capacitors, and transformers for long-term operation.
• Terminals: Nickel-plated copper alloy contacts for corrosion resistance and optimal electrical conductivity.

Typical Applications

• Industrial Process Control: Precise control of valves, actuators, and regulators in chemical, petrochemical, and water treatment systems.
• Factory Automation: Speed control for motors, position control for cylinders, and tension control for web processing lines.
• Test & Measurement Equipment: Generating reference voltage signals for automated testing machines and sensors.
• Packaging Machinery: Controlling sealing temperature, pressure, and positioning in packaging lines.
• Material Handling Systems: Analog control for conveyor speed, lift positioning, and sorting mechanisms.
• HVAC Systems: Precise control of dampers, valves, and variable frequency drives.
• Food & Beverage Processing: Controlling flow rates, mixing ratios, and temperature regulation.

AJ65BT-64DAV Important Parameters
