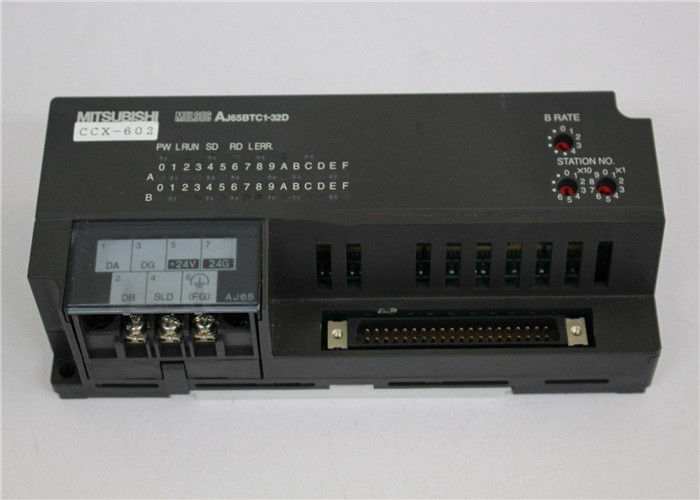

AJ65BTC1-32D Mitsubishi Universal Model Redundant Power Supply Module 12/24VDC (0.5A)

AJ65BTC1-32D Description

AJ65BTC1-32D Key Features

• 32-Channel Digital Input: Provides 32 independent DC input channels for high-density signal collection, reducing module quantity and cabinet space
• CC-Link Fieldbus Compatibility: Fully compliant with CC-Link Ver.1.10/Ver.2.00 standards, supporting baud rates up to 10 Mbps for fast and stable data transmission
• Slim Compact Design: Ultra-thin profile (only 12 mm width) for high-density mounting in control panels, optimizing cabinet space utilization
• Plug-and-Play Installation: Easy DIN-rail mounting, tool-free terminal connection, and automatic CC-Link network recognition for quick setup
• High Noise Immunity: Industrial-grade EMC design with isolated input circuits, ensuring stable operation in harsh electromagnetic industrial environments
• LED Status Indicators: Individual channel input status LEDs (green) and module power/network status LEDs for real-time diagnostics and troubleshooting
• Wide Input Voltage Range: Supports 24 V DC input (sink/source compatible), compatible with most standard industrial sensors and switches
• Isolation Protection: Galvanic isolation between input circuits and CC-Link bus (2500 V AC), preventing signal interference and protecting the main controller
• High Reliability: Long service life, low power consumption, and wide operating temperature range for continuous industrial operation
• Flexible Wiring: Screw terminal block for secure cable connection, supporting 0.5–1.5 mm² wires for stable field wiring

AJ65BTC1-32D Materials & Applications

Materials

• Housing: High-strength, flame-retardant engineering thermoplastic (UL94 V-0), impact-resistant and fire-safe
• Terminal Block: Nickel-plated brass screw terminals, corrosion-resistant for secure and long-term cable clamping
• Internal Circuitry: Industrial-grade FR-4 glass epoxy PCB with high-reliability optocouplers for signal isolation
• Mounting Base: Reinforced plastic DIN-rail clip, compatible with standard 35 mm DIN rails
• LED Components: High-brightness industrial LEDs for clear status indication under various lighting conditions
• Internal Components: High-quality optocouplers, capacitors, and resistors for stable signal processing and isolation

Typical Applications

• Factory Automation: Assembly lines, packaging machines, material handling systems, and conveyor control
• Machine Tools: CNC machines, machining centers, and robotic equipment for limit switch and sensor signal input
• Process Control: Food and beverage, pharmaceutical, and chemical processing plants for digital signal collection
• Material Handling: Warehouse automation, sorting systems, and lifting equipment for position and status detection
• Packaging & Printing: Packaging machinery, printing presses, and labeling equipment for sensor and switch monitoring
• Building Automation: HVAC systems, access control, and fire safety systems for digital input signal acquisition
• General Industrial Machinery: Textile, plastic, and metal processing equipment for remote digital I/O expansion

AJ65BTC1-32D Important Parameters
