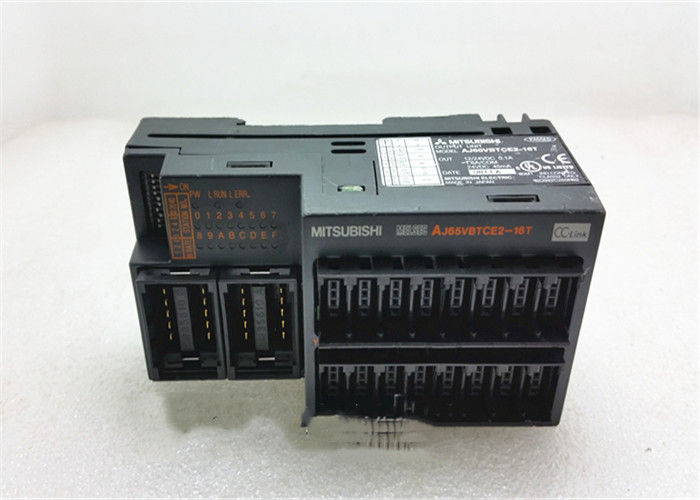

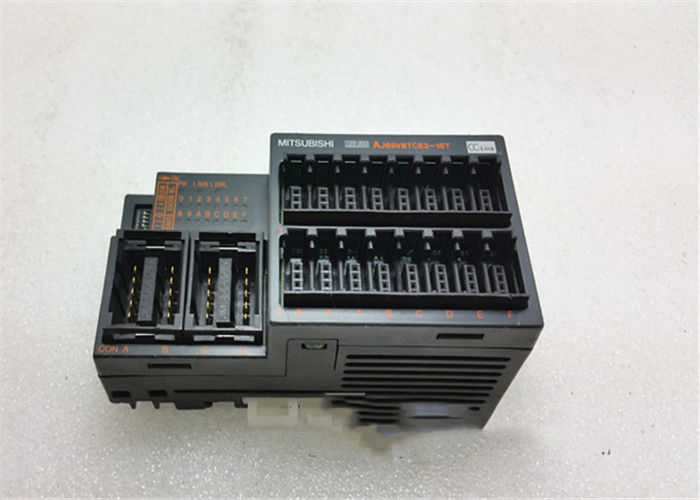

AJ65VBTCE2-16T Mitsubishi Universal model Redundant Power Supply Module
AJ65VBTCE2-16T Description
The Mitsubishi AJ65VBTCE2-16T is a compact CC-Link remote I/O module featuring 16-point transistor sink (NPN) output. It is designed for distributed control systems to drive DC loads such as solenoid valves, indicator lamps, relays, and small actuators. Equipped with industry-standard E-CON sensor connectors for fast, tool-free wiring and high noise immunity via photocoupler isolation, this module ensures reliable real-time control in factory automation environments.
AJ65VBTCE2-16T Key Features
- 16-point transistor sink (NPN) output for efficient DC load control
- Industry-standard E-CON sensor connector for quick, reliable wiring without tools
- High-speed CC-Link communication (up to 10 Mbps) with 1 station occupancy
- Photocoupler isolation for superior noise immunity and signal integrity
- Built-in protection against overload, overvoltage, and overheating
- Fast response time (≤1 ms for both ON/OFF transitions) for precise control
- Compact DIN rail-mountable design for space-saving installation
- Wide operating temperature range and robust industrial rating
- Compliant with international safety and quality standards
AJ65VBTCE2-16T Materials & Applications
Materials
- Housing: High-strength flame-retardant engineering plastic (UL94 V-0)
- PCB: High-performance FR-4 glass epoxy circuit board for thermal stability
- Terminals: Nickel-plated copper alloy E-CON sensor connectors for corrosion resistance and reliable signal transmission
- Internal Components: Industrial-grade transistors, photocouplers, and protection circuits
Typical Applications
- Automated assembly lines and conveying systems
- Packaging, printing, and textile machinery
- Machine tools and automatic welding equipment
- Solenoid valve, indicator light, and small relay control
- Material handling, sorting, and positioning mechanisms
- Semiconductor and electronic manufacturing equipment
AJ65VBTCE2-16T Important Parameters
| Parameter |
Specification |
| Part Number |
AJ65VBTCE2-16T |
| Brand |
Mitsubishi Electric |
| Series |
CC-Link |
| Type |
Remote Transistor Output Module |
| Number of Output Points |
16 points |
| Output Logic |
Sink (NPN) |
| Rated Load Voltage |
DC 12V / 24V |
| Rated Load Current |
0.1 A per point |
| Total Load Current (Common) |
1.6 A per common terminal |
| OFF Leakage Current |
≤ 0.1 mA |
| ON Voltage Drop |
≤ 0.1 V (Typical at 0.1 A); ≤ 0.2 V (Max at 0.1 A) |
| Response Time |
OFF → ON: ≤ 1 ms; ON → OFF: ≤ 1 ms (resistive load) |
| Isolation |
Photocoupler isolation |
| Communication |
CC-Link Ver.1 |
| Occupied Stations |
1 station |
| Power Supply |
DC 24V (10.2 ~ 26.4 V, ±5% tolerance) |
| Internal Current Consumption |
45 mA (Typical) |
| External Power Supply |
DC 10.2 ~ 26.4 V (±5% tolerance) |
| Terminal Type |
E-CON (sensor connector) |
| Operating Temperature |
0°C ~ +55°C |
| Storage Temperature |
-20°C ~ +75°C |
| Operating Humidity |
10% ~ 90% RH (non-condensing) |
| Mounting |
DIN rail mounting |
| Dimensions |
100 × 50 × 45.5 mm (W × H × D) |
| Weight |
Approx. 0.1 kg |
| Certifications |
CE, UL, RoHS |
