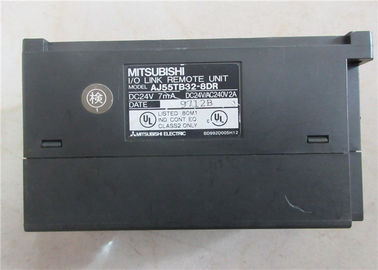

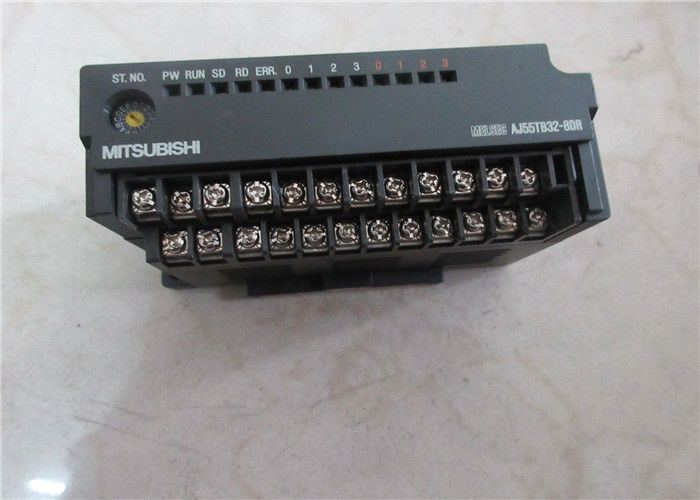

AJ55TB32-8DR Redundant Power Supply Module Mitsubishi Universal Model 5 V DC/3 A

AJ55TB32-8DR Redundant Power Supply Module Mitsubishi Universal model

​

AJ55TB32-8DR  Description​​

​​AJ55TB32-8DR Features​​

• •
  ​​Integrated I/O Solution:​​ Combines 32 digital input points and 8 relay output points in a single module, simplifying wiring and reducing the number of modules required in a PLC rack.
• •
  ​​Terminal Block Connection:​​ Features a removable screw terminal block for easy wiring and maintenance.
• •
  ​​Relay Output Contacts:​​ The 8 output points use electromechanical relays, which provide physical isolation between the PLC and the load circuit. Relay contacts can switch both AC and DC loads.
• •
  ​​LED Status Indicators:​​ Each input and output point has an LED to visually indicate its status (ON/OFF), aiding greatly in troubleshooting and diagnostics.
• •
  ​​Positive/Negative Common Logic:​​ The input circuit can be wired with either a positive or negative common, offering flexibility for different sensor types (NPN/PNP sourcing/sinking).

​​AJ55TB32-8DR Material & Applications​​

• •
  ​​Material:​​
  • •
    ​​Module Casing:​​ Flame-retardant plastic (e.g., PBT, ABS).
  • •
    ​​Terminal Block:​​ Heat-resistant, insulating plastic.
  • •
    ​​Internal Relays:​​ Electromechanical components with metal contacts (e.g., silver alloy).
  • •
    ​​Connectors:​​ Phosphor bronze or other conductive alloys.
• •
  ​​Primary Applications:​​
  • •
    Small-scale automation systems
  • •
    Control panels for packaging machines
  • •
    Material handling systems
  • •
    Standalone machine control stations
  • •
    Applications requiring a compact mix of input sensing and output actuation.

​AJ55TB32-8DR ​Important Parameters​​
