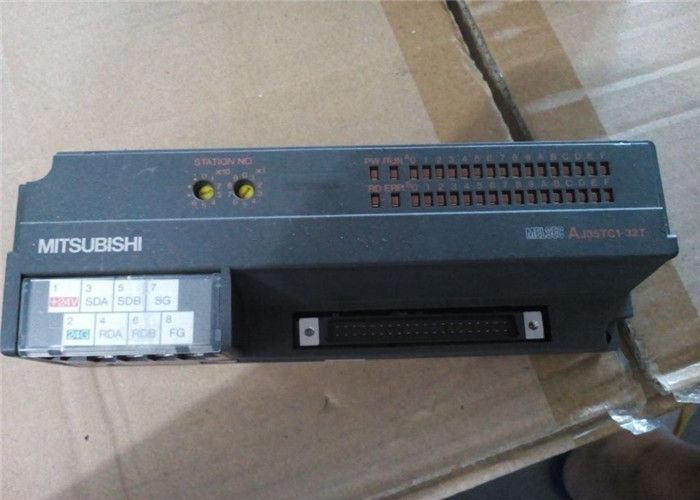

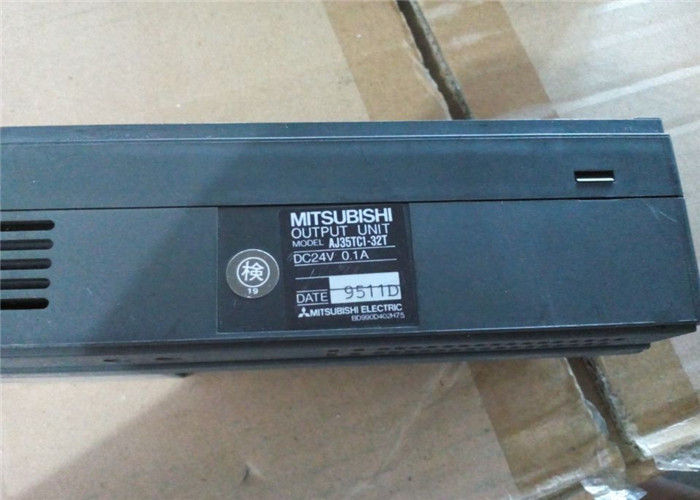

AJ35TC1-32T Redundant Power Supply Module Mitsubishi Universal Model 8 K Steps

AJ35TC1-32T Description

AJ35TC1-32T Key Features

• 32-Point High-Density Transistor Output: Maximizes output capacity in a compact form factor
• Sink (NPN) Output Type: Compatible with standard 24V DC industrial loads and actuators
• High-Speed Response: Fast 2ms response time for precise real-time control
• Single Common Terminal: All 32 points share one common terminal for simplified wiring
• Built-in Surge Absorbers: Protects output circuits from voltage spikes and inductive load noise
• 40-Pin Industrial Connector: Secure, high-density connection for space-efficient installation
• MELSECNET/MINI Compatibility: Seamless integration with CC-Link field bus networks
• Remote Device Station: Occupies 4 stations on the MELSECNET/MINI network
• DIN-Rail Mountable: Standard industrial mounting for quick system assembly
• High Noise Immunity: Electrical isolation between network and output circuits
• LED Status Indicators: Visual monitoring of output status and network communication

AJ35TC1-32T Materials & Applications

Materials

• Housing: Flame-retardant, high-impact thermoplastic resin (UL94 V-0 rated)
• Connector: 40-pin industrial-grade male connector for secure signal transmission
• Internal Components: High-speed switching transistors, surge protection diodes, and status LEDs
• Circuit Board: High-temperature FR-4 PCB with conformal coating for environmental protection
• Internal Wiring: High-purity copper conductors for stable signal integrity

Typical Applications

• Factory Automation: Control of solenoid valves, small DC motors, and indicator lamps
• Packaging Machinery: High-speed actuation for sealing, cutting, and positioning mechanisms
• Assembly Lines: Control of pneumatic cylinders, grippers, and positioning actuators
• Material Handling: Conveyor system control, sorting gates, and stopper mechanisms
• 3C & Electronics Manufacturing: Precision control for testing equipment and component insertion
• Printing & Textile Machines: High-speed actuator control for registration and tension control
• Machine Tools: Control of coolant systems, lubrication pumps, and safety interlocks
• Robotics: End-effector control and auxiliary axis actuation

AJ35TC1-32T Important Parameters
