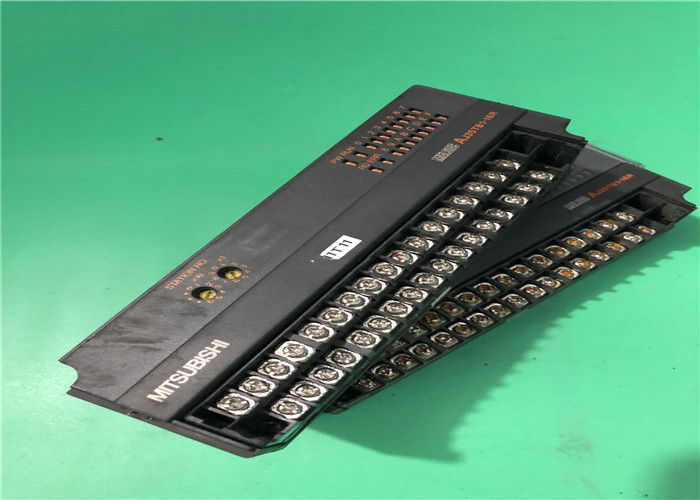

AJ35TJ-8S2 Redundant Power Supply Module Mitsubishi Universal Model 5 V DC/3 A

AJ35TJ-8S2 Description

AJ35TJ-8S2 Key Features

• 8-Point Triac Output: Designed for AC load switching, supporting direct control of AC100–240V devices.
• High Load Capacity: 2A per output point, 5A per common terminal, ensuring stable operation for medium-power AC loads.
• Fast Response: 1ms + 0.5 cycle response time, facilitating real-time control in dynamic processes.
• MELSEC Net/Mini Compatibility: Operates on MELSEC Net/Mini network, occupying 1 remote station.
• Secure Wiring: 26-point screw terminal block for stable connection to field devices, suitable for industrial-grade wiring.
• Robust Isolation: Built-in isolation to prevent interference from noisy industrial environments, ensuring signal integrity.
• DIN Rail Mountable: Standard 35mm DIN rail installation for flexible and space-saving setup.
• Global Compliance: Meets industrial safety and EMC standards for reliable operation in diverse global markets.

AJ35TJ-8S2 Materials & Applications

Materials

• Housing: High-strength, flame-retardant engineering plastic (UL94 V-0) for durability and heat resistance.
• Terminals: Nickel-plated copper screw terminals for low contact resistance and corrosion resistance.
• Internal Components: Industrial-grade optocouplers, triacs, and FR-4 PCB for long-term stability in harsh conditions.
• Heat Dissipation: Optimized component layout for effective heat management, ensuring consistent performance.

Typical Applications

• Factory Automation: Control of AC actuators (solenoids, valves, contactors) on assembly lines.
• Machinery Control: Used in machine tools, packaging machines, and printing equipment for ON/OFF control.
• Material Handling: Conveyor systems, hoists, and lifting equipment requiring AC load switching.
• Process Control: Heating, ventilation, and air conditioning (HVAC) systems; small pump and fan control.
• General Industry: Automotive, textile, and food/beverage processing lines where reliable AC output is critical.

AJ35TJ-8S2 Important Parameters
