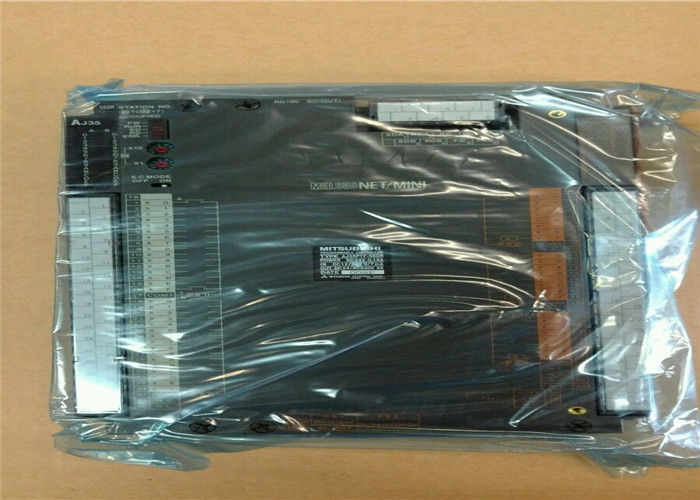

AJ35PTC-CNV-SI Redundant Power Supply Module Mitsubishi Universal Model 0.12 μS

AJ35PTC-CNV-SI Description

AJ35PTC-CNV-SI Key Features

• Dual-Media Conversion: Converts between twisted-pair and SI fiber optic cables, supporting up to 15 km fiber transmission distance for long-range connectivity.
• System Compatibility: Fully supports MELSECNET/MINI(-S3) and A2C data link systems, ensuring seamless integration with Mitsubishi A-series PLCs and remote I/O modules.
• High Reliability: Industrial-grade fiber optic transmission with strong electromagnetic interference (EMI) resistance, ensuring stable data transfer in noisy factory floors.
• 1-Station Occupancy: Occupies only 1 station in the network, simplifying system addressing and resource management.
• Plug-and-Play Integration: Easy installation with standard industrial connectors, compatible with existing MELSEC network topologies without major system reconfiguration.
• Diagnostic Support: Integrated status indicators for quick fault diagnosis and network monitoring, reducing downtime.
• Wide Environmental Tolerance: Operates reliably across a broad temperature and humidity range, suitable for harsh industrial settings.
• Cost-Effective Expansion: Enables cost-efficient network extension by leveraging fiber optics for long-distance runs, reducing copper cable costs and installation complexity.

AJ35PTC-CNV-SI Materials & Applications

Materials

• Housing: High-strength, flame-retardant engineering thermoplastic (UL94 V-0) for durability and fire safety.
• Fiber Optic Components: High-quality laser diodes and photodiodes for low signal loss and high sensitivity.
• Electrical Interfaces: Gold-plated copper alloy contacts for low resistance and corrosion resistance.
• Cable Connectors: Industrial-grade screw terminals and fiber optic adapters for secure, vibration-resistant connections.
• Internal PCB: FR-4 glass epoxy board with high-reliability surface-mount components for stable signal processing.

Typical Applications

• MELSECNET/MINI(-S3) & A2C Systems: Long-distance data link extension between PLC stations and remote I/O modules.
• Factory Automation: Assembly lines, packaging machines, and conveyor systems requiring device connectivity across large workcells.
• Material Handling: Warehouse automation, sorting systems, and lifting equipment spanning wide areas.
• Process Control: Chemical, pharmaceutical, and food processing plants with stringent EMI and distance requirements.
• Machine Tools & Robotics: CNC machines and robotic systems where reliable communication is critical across machine bases or cells.
• Building Automation: Large-scale HVAC, fire safety, and access control systems requiring network segmentation and extension.

AJ35PTC-CNV-SI Important Parameters
