Product Details:
Payment & Shipping Terms:
|
| Brand: | GE | Model: | IC200MDL144 |
|---|---|---|---|
| Origin: | USA | Type: | Module |
| Highlight: | ewing machine servo motor,ac servo motor |
||

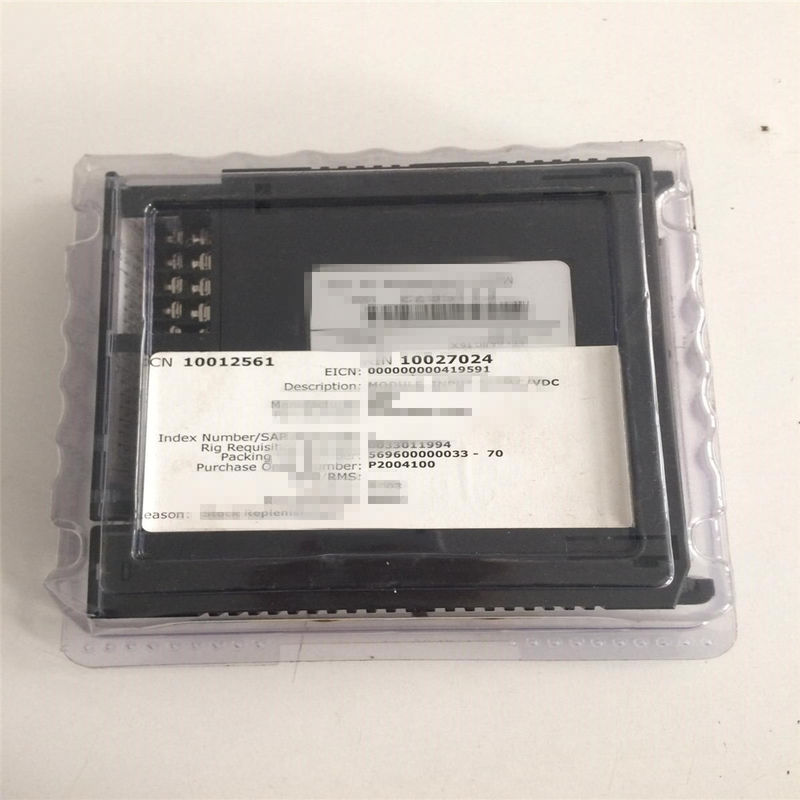

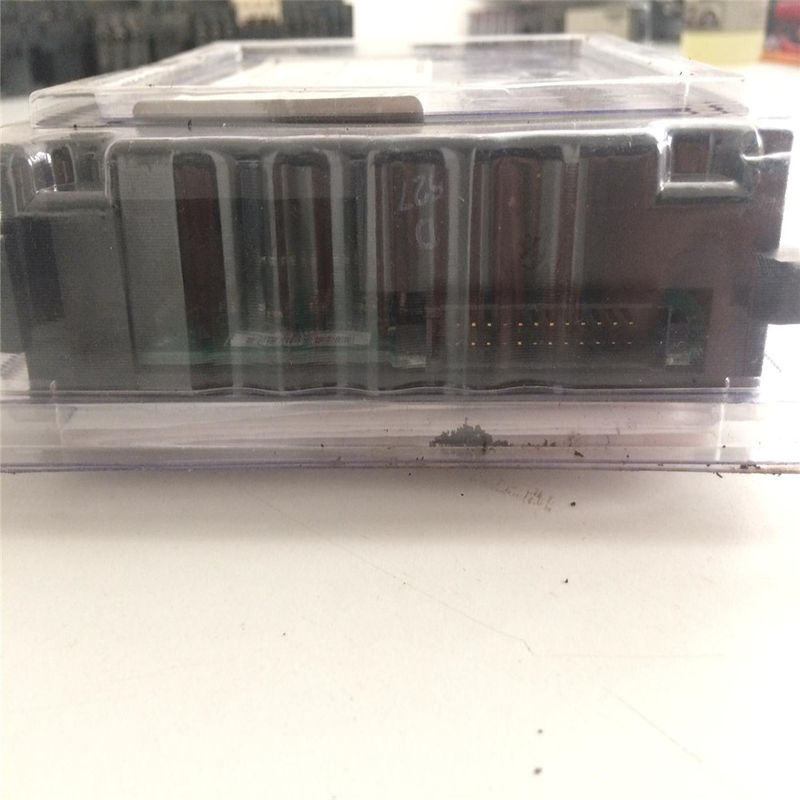

Module 240 VAC Isolated, 4 points IC200MDL144 GE VersaMax Discrete Input
Discrete Input Modules
Discrete input modules receive signals from input devices such as sensors, pushbuttons, and switches
that can have two states: on or off, open or closed . Modules require a carrier base (IC200CHSxxx) .
| IC200MDL144 | IC200MDL240 | IC200MDL241 | |
| Product Name | VersaMax Discrete Input Module 240 VAC Isolated, 4 points |
VersaMax Discrete Input Module, 120 VAC Positive Logic, 16 points |
VersaMax Discrete Input Module, 240 VAC Positive Logic, 16 points |
| Lifecycle Status | Active | Active | Active |
| Input Voltage | 0-264 VAC | 0-132 VAC | 0-264 VAC |
| Number of Points | 4 | 16 | 16 |
| Channel to Channel Isolation | Yes | No | No |
| Input and Output Response Time- On/Off (ms) |
1 cycle/2 cycles | 1 cycle/2 cycles | 1 cycle/2 cycles |
| Points per Common | 4 groups of 1 | 2 groups of 8 | 2 groups of 8 |
| On State Current | 7 mA minimum | 5 mA minimum | 4 mA minimum |
| Off State Current | 3 mA maximum | 2 .5 mA maximum | 1 .5 mA maximum |
| Input Impedance | 38 .5 kOhms (reactive) at 60 Hz, typical; 46 .3 kOhms (reactive) at 50 Hz, typical |
8 .6 kOhms (reactive) at 60 Hz, typical; 10 .32 kOhms (reactive) at 50 Hz, typical |
38 .5 kOhms (reactive) at 60 Hz, typical; 46 .3 kOhms (reactive) at 50 Hz, typical |
| 5V Backplane Current Consumption (mA) |
30 maximum | 110 maximum | 110 maximum |
| LED Indicators | One LED per point shows individual point ON/OFF status . OK LED indicates backplane power is present |
One LED per point shows individual point ON/OFF status . OK LED indicates backplane power is present |
One LED per point shows individual point ON/OFF status . OK LED indicates backplane power is present |
| Dimensions (W x H x D) | 110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
110 mm (4 .3 in) x 66 .8 mm (2 .63 in) x 50 mm (1 .956 in), not including the height of the carrier or the mating connectors |
