Product Details:
Payment & Shipping Terms:
|
| Model: | M701-03400025A | Complete Model: | M701-03400025A10100AB100 |
|---|---|---|---|
| Type: | AC Inverter DRIVE | Series: | Unidrive M700 |
| Brand: | Nidec Control Techniques | Weight: | 5kg |
| Highlight: | electric servo drive,ac servo pack |
||

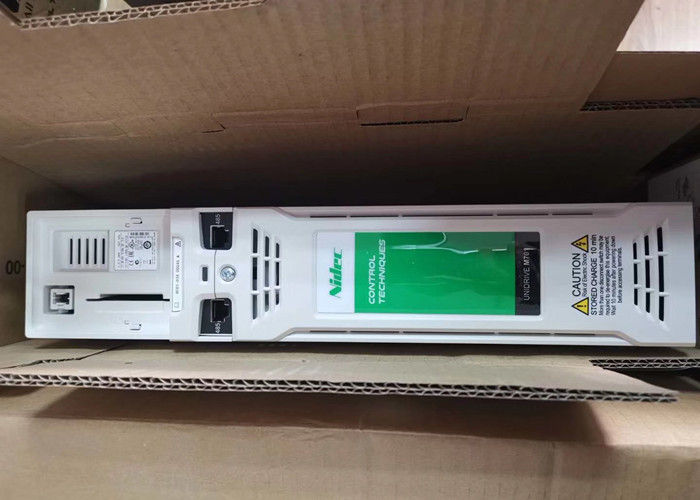

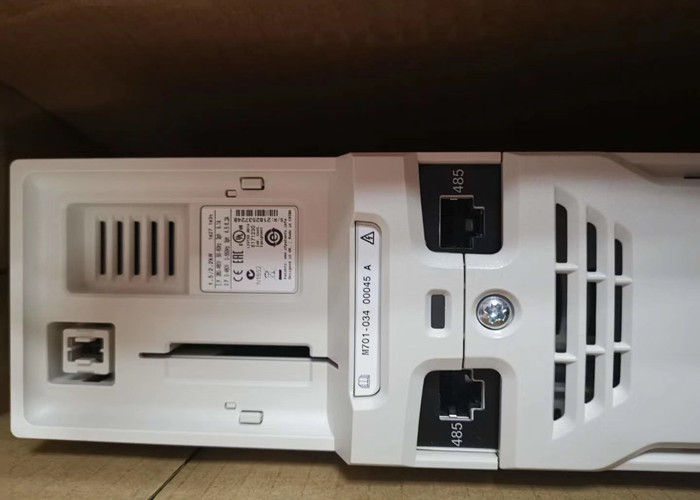

NEW Nidec CONTROL TECHNIQUES AC INVERTER M701-03400025A Unidrive M700 Industrial Drive
Models of AC DRIVE M701-034
| M701-03400025A | Control Techniques M700 Drives Unidrives M700-09601040A-125 Maximum Continuous Current Amps, 110 Motor Shaft Power kW, 150 Motor Shaft Power HP |
|
M701-03400031A |
Control Techniques M700 Drives Unidrives M700-09601040E-125 Maximum Continuous Current Amps, 110 Motor Shaft Power kW, 150 Motor Shaft Power HP |
| M701-03400045 | Control Techniques M700 Drive |
| M701-03400045A | Control Techniques M700 Drives Unidrives M700-09601310A-150 Maximum Continuous Current Amps, 132 Motor Shaft Power kW, 175 Motor Shaft Power HP |
| M701-03400062A | Control Techniques M700 Drives Unidrives M700-09601310E-155 Maximum Continuous Current Amps, 132 Motor Shaft Power kW, 175 Motor Shaft Power HP |
| M701-03400078A | Control Techniques M700 Drives Unidrives M700-10202830E-325 Maximum Continuous Current Amps, 90 Motor Shaft Power kW, 125 Motor Shaft Power HP |
| M701-03400100A |
Control Techniques M700 Drives Unidrives M700-10203000E-360 Maximum Continuous Current Amps, 110 Motor Shaft Power kW, 150 Motor Shaft Power HP |
Keypads
Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)
KI-Keypad
Plain text, multi-language LCD keypad with up to 4 lines of text for in depth parameter and data descriptions, for enhanced user experience
KI-Keypad RTC
All the features of the KI-Keypad, but with battery operated realtime clock. This allows accurate time stamping of events, aiding diagnostics
Description of Unidrive M700
Unidrive M700
Class leading induction and permanent magnet servo motor performance, with real-time Ethernet
The Unidrive M700 family of drives provides top-tier motor control for closed-loop induction, permanent megnet and servo applications. These drives are highly flexible, running from 0.75 kW - 2.8 MW (1 - 4200 hp) at 200V / 400V / 575V / 690V.
Led by the results of extensive customer-driven market research, we have tailored five Unidrive M feature-sets to specific application needs identified within Industrial Automation.
The Unidrive M700 provides class-leading motor control for induction, permanent magnet and servo applications, plus onboard real-time Ethernet. Unidrive M700 provides ultimate control flexibility in order to satisfy the requirements of machine builders and high specification industrial applications.
Unidrive M700 offers an enhanced upgrade for existing Unidrive SP users.
Specifications of AC Drive M700
| 200/240 VAC +/-10% |
Normal Duty | Heavy Duty | ||||
| Order Code | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) |
| M701-03200050A10 | 6,6 | 1,1 | 1,5 | 5 | 0,75 | 1 |
| M701-03200066A10 | 8 | 1,5 | 2 | 6,6 | 1,1 | 1,5 |
| M701-03200080A10 | 11 | 2,2 | 3 | 8 | 1,5 | 2 |
| M701-03200106A10 | 12,7 | 3 | 3 | 10,6 | 2,2 | 3 |
| M701-04200137A10 | 18 | 4 | 5 | 13,7 | 3 | 3 |
| M701-04200185A10 | 24 | 5,5 | 7,5 | 18,5 | 4 | 5 |
| M701-05200250A10 | 30 | 7,5 | 10 | 25 | 5,5 | 7,5 |
| M701-06200330A10 | 50 | 11 | 15 | 33 | 7,5 | 10 |
| M701-06200440A10 | 58 | 15 | 20 | 44 | 11 | 15 |
| M701-07200610A10 | 75 | 18,5 | 25 | 61 | 15 | 20 |
| M701-07200750A10 | 94 | 22 | 30 | 75 | 18,5 | 25 |
| M701-07200830A10 | 117 | 30 | 40 | 83 | 22 | 30 |
| M701-08201160A10 | 149 | 37 | 50 | 116 | 30 | 40 |
| M701-08201320A10 | 180 | 45 | 60 | 132 | 37 | 50 |
| M701-09201760A10100AB | 216 | 55 | 75 | 176 | 45 | 60 |
| M701-09202190A10100AB | 266 | 75 | 100 | 219 | 55 | 75 |
| 380/480 VAC +/-10% |
Normal Duty | Heavy Duty | ||||
| Order Code | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) | Max Continuous Current (A) | Motor Shaft Power (kW) | Motor Shaft Power (HP) |
| M701-03400025A10 | 3,4 | 1,1 | 1,5 | 2,5 | 0,75 | 1 |
| M701-03400031A10 | 4,5 | 1,5 | 2 | 3,1 | 1,1 | 1,5 |
| M701-03400045A10 | 6,2 | 2,2 | 3 | 4,5 | 1,5 | 2 |
| M701-03400062A10 | 7,7 | 3 | 5 | 6,2 | 2,2 | 3 |
| M701-03400078A10 | 10,4 | 4 | 5 | 7,8 | 3 | 5 |
| M701-03400100A10 | 12,3 | 5,5 | 7,5 | 10 | 4 | 5 |
| M701-04400150A10 | 18,5 | 7,5 | 10 | 15 | 5,5 | 10 |
| M701-04400172A10 | 24 | 11 | 15 | 17,2 | 7,5 | 10 |
| M701-05400270A10 | 30 | 15 | 20 | 27 | 11 | 20 |
| M701-05400300A10 | 30 | 15 | 20 | 30 | 15 | 20 |
| M701-06400350A10 | 38 | 18,5 | 25 | 35 | 15 | 25 |
| M701-06400420A10 | 48 | 22 | 30 | 42 | 18,5 | 30 |
| M701-06400470A10 | 63 | 30 | 40 | 47 | 22 | 30 |
| M701-07400660A10 | 79 | 37 | 50 | 66 | 30 | 50 |
| M701-07400770A10 | 94 | 45 | 60 | 77 | 37 | 60 |
| M701-07401000A10 | 112 | 55 | 75 | 100 | 45 | 75 |
| M701-08401340A10 | 155 | 75 | 100 | 134 | 55 | 100 |
| M701-08401570A10 | 184 | 90 | 125 | 157 | 75 | 125 |
| M701-09402000A10100AB | 221 | 110 | 150 | 200 | 90 | 150 |
| M701-09402240A10100AB | 266 | 132 | 200 | 224 | 110 | 150 |
| SP1201 | SP1202 | SP1203 | SP1204 | SP2201 | SP2202 | SP2203 | SP3201 |
| SP3202 | SP4201 | SP4202 | SP4203 | SP5201 | SP5202 | SP3501 | SP3502 |
| SP0401 | SP0402 | SP0403 | SP0404 | SP0405 | SP1401 | SP1402 | SP1403 |
| SP1404 | SP1405 | SP1406 | SP2201 | SP2202 | SP2401 | SP2402 | SP2403 |
| SP2404 | SP3401 | SP3402 | SP3403 | SP4401 | SP4402 | SP4403 | SP5401 |
| SP5402 | SP5403 | SP6401 | SP6402 | SP3505 | ES2401 | ES2402 | ES2403 |
| SP3503 | SP3504 | SP3506 | SP4601 | SP4602 | SP4603 | SP4604 | SP4605 |
| SP4606 | SP5601 | SP5602 | SP6601 | SP6602 | Unidrive SP | Quantum MP | Mentor MP |
| SKA1100025 | SKA1100037 | SKB1100075 | SKB1100110 | SKA1200025 | SKA1200037 | SKA1200055 |
| SKBD200110 | SKBD200150 | SKCD200220 | SKDD200300 | SKD3200400 | SKB3400037 | SKB3400055 |
| SKB3400110 | SKB3400150 | SKB3400220 | SKB3400300 | SKB3400400 | SKB3400550 | SKB3400750 |
| SKA1200075 | SKB3400075 | SK3201 | SK3202 | SK4201 | SK4202 | SK4203 |
| SK2402 | SK2403 | SK2404 | SK3401 | SK3402 | SK3403 | SK4401 |
| SK4403 | SK5401 | SK5402 | SK6401 | SK6402 | SK3501 | SK3502 |
| SK3504 | SK3505 | SK3506 | SK3507 | SK4601 | SK4602 | SK4603 |
| SK4605 | SK4606 | SK5601 | SK5602 | SK6601 | SK6602 | SK6602 |
| SK2401 | SK4402 | SK2201 | SK2202 | SK2203 | SK3503 | SK4604 |
| UNI1201 | UNI1202 | UNI1203 | UNI1204 | UNI1205 | UNI2201 | UNI2202 | UNI2203 |
| UNI3201 | UNI3202 | UNI3203 | UNI3204 | UNI1401 | UNI1402 | UNI1403 | UNI1404 |
| UNI1405 | UNI2401 | UNI2402 | UNI2403 | UNI3401 | UNI3402 | UNI3403 | UNI3404 |
| UNI3405 | UNI4401 | UNI4402 | UNI4403 | UNI4404 | UNI4405 | UNI5401 | SP5402 |
Applications of Industrial AC Drive M700
