Product Details:
Payment & Shipping Terms:
|
| Phase: | 3-phase | Brand: | Mitsubishi Industrial Servo Motor |
|---|---|---|---|
| Model Item: | HG-SN52BJ-S100 | Plan Of Original: | Japan |
| Power: | 0.75kW | Frequency: | 3000r/min |
| AC Voltage: | 2.9A | ||
| Highlight: | ewing machine servo motor,electric servo motor |
||

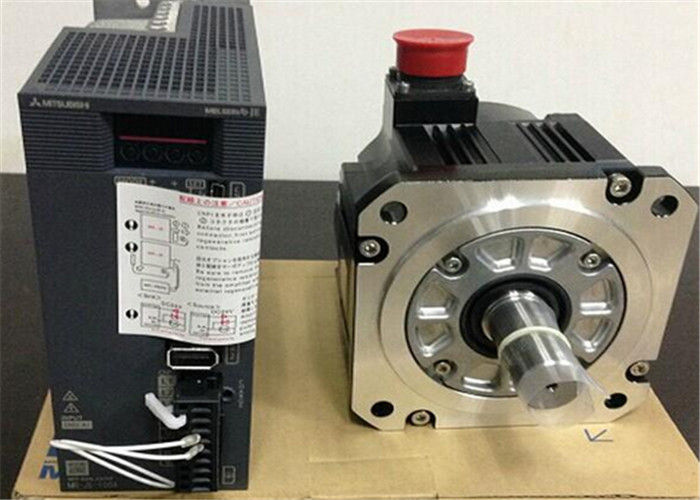

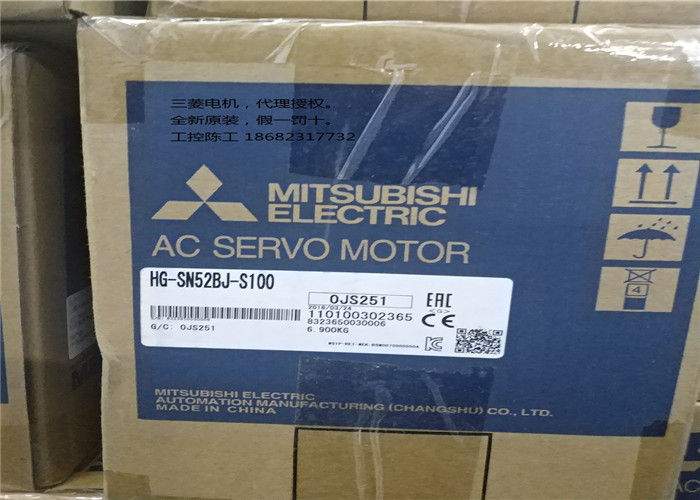

2000r/min 0.5kw Industrial HG-SN52BJ-S100 Mitsubishi Servo Motor
Specifications of Mitsubishi Servo HG-SN52BJ-S100
Servo motor series: low inertia, small capacity.
Rated output: 0.5kw.
Rated speed: 2000r/min.
Electromagnetic brake: there.
Oil seal: have.
Corresponding servo amplifier: MR-JE-10B/MR-JE-10A.
Features of Mitsubishi Servo HG-SN52BJ-S100
Mitsubishi Servo HG-SN52BJ-S100
Support position control, speed control, torque control, push and press control.
Position control can use linear, arc interpolation controller, fixed size feed control, target position change and other rich functions.
The position control and torque control are realized by switching control mode.
The gain adjustment of servo can be simply performed by the advanced one key tuning function.
At the same time, it is also able to suppress the low frequency vibration of the manipulator by the advanced vibration suppression control II,
Shorten the time to complete the positioning, so as to achieve the production of the rhythm of the shortening.
Motor Specifications
|
Servo motor Item |
HF-SN series (3-phase 200 V AC compatible, medium inertia/capacity) |
||||
| 52(B)J-S100 | 102(B)J-S100 | 152(B)J-S100 | 202(B)J-S100 | 302(B)J-S100 | |
| Power facility capacity [kVA] | 1 | 1.7 | 2.5 | 3.5 | 4.8 |
| Rated output | 0.5[KW] | 1.0[KW] | 1.5[KW] | 2.0[KW] | 3.0[KW] |
| Rated torque | 2.39[Nm] | 4.77[Nm] | 7.16[Nm] | 9.55[Nm] | 14.3[Nm] |
| Maximum torque | 7.16[Nm] | 14.3[Nm] | 21.5[Nm] | 28.6[Nm] | 42.9[Nm] |
| Rated rotation speed | 2000[rpm] | ||||
| Maximum rotation speed | 3000[rpm] | 2500[rpm] | |||
| Permissible instantaneous rotation speed | 3450 | 2875 | |||
| Rated current | 2.9[A] | 6.0[A] | 8.6[A] | 9.0[A] | 11[A] |
| Maximum current | 8.7 [A] | 18 [A] | 26 [A] | 27 [A] | 33 [A] |
| Weight | 4.8[kg] | 6.5[kg] | 8.3[kg] | 12[kg] | 15[kg] |
|
Weight (With brake) |
6.7[kg] | 8.5[kg] | 10.3[kg] | 18[kg] | 21[kg] |
| Servo Motor | |||
| Item | Model | Rated output | Rated speed |
| HG-KR series | HG-KR053 | 50 W | 3000 r/min |
| HG-KR13 | 100 W | 3000 r/min | |
| HG-KR23 | 200 W | 3000 r/min | |
| HG-KR43 | 400 W | 3000 r/min | |
| HG-KR73 | 750 W | 3000 r/min | |
| HG-KR series with brake | HG-KR053B | 50 W | 3000 r/min |
| HG-KR13B | 100 W | 3000 r/min | |
| HG-KR23B | 200 W | 3000 r/min | |
| HG-KR43B | 400 W | 3000 r/min | |
| HG-KR73B | 750 W | 3000 r/min | |
| HG-MR series | HG-MR053 | 50 W | 3000 r/min |
| HG-MR13 | 100 W | 3000 r/min | |
| HG-MR23 | 200 W | 3000 r/min | |
| HG-MR43 | 400 W | 3000 r/min | |
| HG-MR73 | 750 W | 3000 r/min | |
| HG-MR series with brake | HG-MR053B | 50 W | 3000 r/min |
| HG-MR13B | 100 W | 3000 r/min | |
| HG-MR23B | 200 W | 3000 r/min | |
| HG-MR43B | 400 W | 3000 r/min | |
| HG-MR73B | 750 W | 3000 r/min | |
| HG-SR series 2000 r/min | HG-SR52 | 0.5 KW | 2000 r/min |
| HG-SR102 | 1.0 KW | 2000 r/min | |
| HG-SR152 | 1.5 KW | 2000 r/min | |
| HG-SR202 | 2.0 KW | 2000 r/min | |
| HG-SR352 | 3.5 KW | 2000 r/min | |
| HG-SR502 | 5.0 KW | 2000 r/min | |
| HG-SR702 | 7.0 KW | 2000 r/min | |
| HG-SR series 2000 r/min | HG-SR52B | 0.5 KW | 2000 r/min with brake |
| HG-SR102B | 1.0 KW | 2000 r/min with brake | |
| HG-SR152B | 1.5 KW | 2000 r/min with brake | |
| HG-SR202B | 2.0 KW | 2000 r/min with brake | |
| HG-SR352B | 3.5 KW | 2000 r/min with brake | |
| HG-SR502B | 5.0 KW | 2000 r/min with brake | |
| HG-SR702B | 7.0 KW | 2000 r/min with brake | |
| HG-SR series 1000 r/min | HG-SR51 | 0.5 KW | 1000 r/min |
| HG-SR81 | 0.85 KW | 1000 r/min | |
| HG-SR121 | 1.2KW | 1000 r/min | |
| HG-SR201 | 2.0 KW | 1000 r/min | |
| HG-SR301 | 3.0 KW | 1000 r/min | |
| HG-SR421 | 4.2 KW | 1000 r/min | |
| HG-SR series 1000 r/min | HG-SR51B | 0.5 KW | 1000 r/min with brake |
| HG-SR81B | 0.85 KW | 1000 r/min with brake | |
| HG-SR121B | 1.2KW | 1000 r/min with brake | |
| HG-SR201B | 2.0 KW | 1000 r/min with brake | |
| HG-SR301B | 3.0 KW | 1000 r/min with brake | |
| HG-SR421B | 4.2 KW | 1000 r/min with brake | |
Similer item we can supply:
| HC-UFS13 | HC-UFS23 | HC-UFS73 | HC-UFS43 |
| HC-UFS72 | HC-UFS152 | HC-UFS202 | HC-UFS352 |
| HC-UFS502 | HC-SFS81 | HF-KP13 | HF-SP102B |
| HC-SFS121 | HC-RFS153 | HF-MP13B | HF-SP152B |
| HC-SFS201 | HC-RFS203 | HF-MP23B | HF-SP202B |
| HC-SFS301 | HC-RFS353 | HF-MP43B | HF-SP352B |
| HC-SFS52 | HC-RFS503 | HF-MP73B | HF-SP502B |
| HC-SFS102 | HA-LFS11K2 | HF-KP13B | HF-SP51 |
| HC-SFS152 | HA-LFS15K2 | HF-KP23B | HF-SP702B |
| HC-SFS202 | HA-LFS22K2 | HF-KP43B | HF-SP81 |
| HC-SFS352 | HA-LFS11K2B | HF-KP73B | HF-SP121 |
| HC-SFS502 | HA-LFS15K2B | HF-SP52 | HF-SP201 |
| HC-SFS702 | HA-LFS22K2B | HF-SP102 | HF-SP51B |
| HC-SFS53 | HF-MP053 | HF-SP152 | HF-SP81B |
| HC-SFS103 | HF-MP13 | HF-SP202 | HF-SP121B |
| HC-SFS153 | HF-MP23 | HF-SP352 | HF-SP201B |
| HC-SFS203 | HF-MP43 | HF-SP502 | HC-SFS202K |
| HC-SFS353 | HF-MP73 | HF-SP702 | HC-SFS201B |
| HC-RFS103 | HF-KP053 | HF-SP52B | HC-SFS202B |
