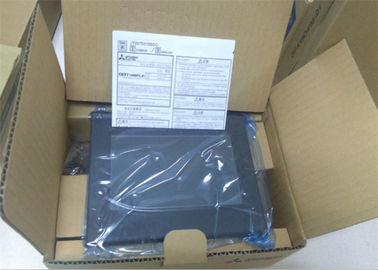

GT2710-STBD Mitsubishi Electric GOT2000 Graphic Operation Terminal Touch Screen SVGA TFT 10.4" HMI

GT2710-STBD Mitsubishi Electric GOT2000 Graphic Operation Terminal Touch Screen SVGA TFT 10.4" HMI

Detailed Product Description

• Manufacturer : Mitsubishi Electric

• GT2710-STBD

• GT 2710 - STBD

• category : GOT body

• series : GOT 2000

• Classification : Large size: 8 to 15 type

• Product model name : GT 2710 - STBD

• Model name : GT 27

• Conforming standard : UL / cUL, CE (EMC), CE (RoHS), KC, ABS, BV, DNV GL, LR, NK, RINA

• Display unit type : TFT color liquid crystal

• Screen size : 10.4 type

• resolution : SVGA: 800 X 600 [dot]

• Display size : 211.2 (W) x 158.4 (H) [mm]

• Number of display characters : 16 dot Standard font: 50 characters x 37 lines (full-width) 12 dots In standard font: 66 characters x 50 lines (full-width)

• Display color : 65536 colors

• Brightness adjustment : 32 step adjustment

• Maximum number of images that can be registered : 4096 screen

• Backlight type : LED (can not be replaced)

• lifespan : About 60,000 hours (time at which the display luminance becomes 50% at an ambient temperature of 25 ° C.)

• color : White

• Touch panel method : Analog resistor type

• Key size : Minimum 2 X 2 [dots] (per one key)

• Number of simultaneous press points : Up to 2 points

• lifespan : 1 million times or more (operation force 0.98 N or less)

• Human sensor Detection distance : -

• Detected temperature : -

• User memory Memory capacity : Storage memory (ROM): 57 MB Operating memory (RAM): 128 MB

• Lifetime (number of writes) : 100 thousand times

• Internal clock accuracy : ± 90 seconds / month (ambient temperature 25 ° C)

• Battery type : GT 11 - 50 BAT type lithium battery

• Backup target : SRAM data, clock data, system status log data

• lifespan : About 5 years (ambient temperature 25 °C)

• Internal interface bus : -

• RS-422/485 (shared) : 1 ch Transmission speed: 115200/57600/38400/19200/9600/4800 bps Connector shape: D sub 9 pins (female)

• RS-422/232 (shared) : -

• RS-422 : -

• RS-232 : 1 ch Transmission speed: 115200/57600/38400/19200/9600/4800 bps Connector shape: D sub 9 pins (male)

• Ethernet : 1 ch data transfer method: 100 BASE - TX / 10 BASE - T connector shape: RJ - 45 (modular jack)

• RGB : -

• Printer : -

• USB (device) : Maximum transfer rate: High-Speed ??480 Mbps 1 ch (Front) Connector shape: USB Mini-B

• USB (host) : Maximum transfer speed: High-Speed ??480 Mbps 2 ch (front / rear) Connector shape: USB-A

• SD memory card : 1ch SDHC compatible (up to 32GB)

• CF card : -

• PC card slot : -

• Option function board : -

• Memory board : -

• Extended interface : For installing communication unit / option unit

• Extended auxiliary interface : 1ch for mounting option unit

• Side interface : For installing communication unit

• Wireless LAN communication unit interface : -

• Audio output interface : -

• switch Switch 1 : -

• Switch 2 : -

• Buzzer output : Single tone (pitch and tone length adjustable)

• POWER LED : Luminescent color: 2 colors (blue, orange)

• Protective structure : Front portion: IP 67 F Panel inside: IP 2 X

• External dimensions : 303 (W) x 218 (H) x 52 (D) [mm]

• Panel cut dimensions : 289 (W) x 200 (H) [mm]

• Mass (excluding mounting hardware) : 2.1 [Kg]

• Operating ambient temperature : 0 to 55 ° C

• Storage ambient temperature : -20 ° C to 60 ° C

• Ambient operating humidity : 10 to 90% RH, non condensing

• Storage ambient humidity : 10 to 90% RH, non condensing

• Anti-vibration Compliance standard : Meets JIS B 3502, IEC 61131-2

• When there is intermittent vibration :Partial amplitude 3.5 mm, Number of sweeps X, Y, Z 10 times in each directionAcceleration 9.8 m / s 2 , Number of sweeps X, Y,

• When there is continuous vibration :Single amplitude 1.75 mmAcceleration 4.9 m / s 2

• Impact resistance : Meets JIS B 3502, IEC 61131-2 (147 m / s 2 (15 G) 3 times in X, Y, Z direction each)

• Use atmosphere : There is no oil smoke, corrosive gas, flammable gas, conductive dust is not serious, it is not exposed to direct sunlight (also during storage)

• Use elevation : 2000 m or less

• Installation location : In the control panel

• Over Voltage category : II or less

• Pollution degree : 2 or less

• cooling method : Self-cooling

• Input supply voltage : DC 24 V (+ 25%, - 20%)

• Input frequency : -

• Input maximum apparent power : -

• power consumption At maximum load : 42 W or less

• Main unit body : 15 W

• Main unit (when backlight is off) : 8 W

• Inrush current : 5 A or less (20 ms, ambient temperature 25 ° C., maximum load)

• Allowable momentary power failure time : Within 10 ms

• Noise tolerance : Noise voltage with 500 Vp-p, noise width 1 μs, noise frequency of 25 to 60 Hz by noise si

• tor

• Withstand voltage : Power supply terminal all together ? earth ground AC 350V 1 minute

• Insulation resistance : Power supply terminal all together ? ground DC 500 V at insulation resistance meter 10 MΩ or more

• Applicable wire size : 0.75 to 2 [mm 2 ]

• Applicable crimp terminal : Crimp terminals for M3 screw RAV1.25-3, V2 - S3.3, V2 - N3A, FV2 - N3A

• Applicable tightening torque (terminal block terminal screw) : 0.5 to 0.8 [N . m]

• ground : Class D grounding (type 3 grounding), connecting to the board when grounding is impossible

• Mounting type : standard

• Shipping Weight : 3 Kg

Product Details

• GT27 10.4 INCH SVGA COLOR TOUCHSCREEN DC (GT2710STBD)
• Manufacturer: Mitsubishi
• Series: GOT2000
