Product Details:
Payment & Shipping Terms:
|
| Brand: | AB | Type: | PLC Processor Controller |
|---|---|---|---|
| Model: | 1747-L543 | Origin Of Country: | USA |
| User Memory:: | 64,000 Words | Module Type:: | SLC 5/04 Processor |
| MOQ: | 1 PIECE | ||
| High Light: | ethernet plc controllers,industrial automation using plc |
||

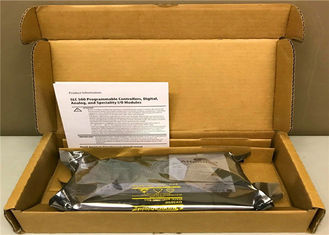

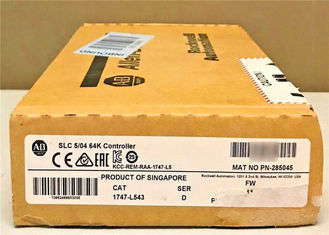

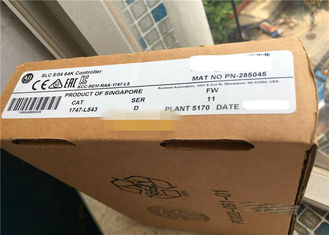

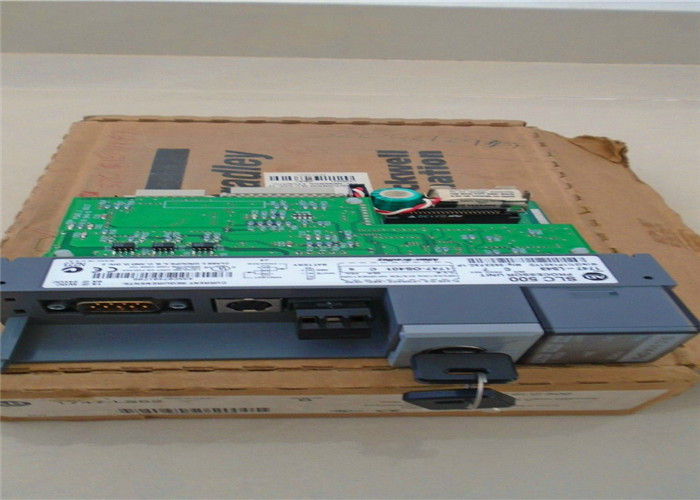

1747-L543 Allen Bradley NEW IN BOX Original SLC 5/04 64K Controller
Quick Details:
ALLEN BRADLEY
1747-L543
1747L543
CPU MODULE
64K USER MEMORY
SLC500
SLC 5/04 CPU
DH+ & RS-232 COMMUNICATION PORTS
AVAILABLE
New one with one year warranty and used one with six months warranty
Weight: 1.07 lbs
Description:
The AB 1747-L543 is a SLC 500 SLC 5/04 Processor. This SLC 5/04 Processor has 4096 Inputs and 4096 Outputs with 480 Analog
I/O. Additionally, this module has 64,000 Words User Memory and DH+, RS-232 Communication.
About 1747-L543:
The AB 1747-L543 is an SLC 500 SLC 5/04 processor that has maximum discrete input and output capacities of 4096 each. It has a maximum of 480local analog I/O, as well as a user memory of 64K words, specifically 60K words for data and program and 4K words for data only. It also comes with a Flash EPROM backup memory and 107 programming instructions. The 64 KB RAM of the 1747-L543 processor is battery-backed. The I/O chassis of the 1747-L543 is a maximum of 3, and it has a maximum of 30 I/O module slots. The communication ports present on this processor are a DH+ port and an RS-232 port. The 1747-L543 It also has status LEDs present for forced I/O, run, CPU fault, RS-232, and DH+.
Program scan time of the 1747-L543 processor is 0.9 milliseconds/K on average, its typical I/O scan time is 0.225 milliseconds, and bit execution is 0.37 µs. It also has a program scan hold-up time after the loss of power between 20 milliseconds and 3 seconds, which is also dependent on the loading of the power supply. The 1747-L543 also runs on backplane currents of 1 A at 5 Volts DC and of 125 mA at 24 Volts DC. Its operating shock is 30 G, and it can withstand an acceleration of 2.5 G at 57 to 2000 Hertz and a displacement of 0.015 inches, peak-to-peak, at 5 to 57 Hertz. Its non-condensing relative humidity is between 5 and 95%, its storage temperature is -40 to 85 degrees Celsius, and its operating temperature is 0 to 60 degrees Celsius.
FAQ
Question: Can this module be purchased with a warranty?
Answer: Yes, the 1747-L543 comes with a free one-year warranty.
Question: Where can I send the 1747-L543 to be repaired?
Answer: we can offers a variety of repair services for the 1747-L543.
Question: What are this module’s communication options?
Answer: The 1747-L543 uses DH+ and RS-232 for communication purposes.
Question: What type of memory does this unit have?
Answer: The 1747-L543 has a user memory that will hold up to 64k Words, along with a Flash backup memory.
