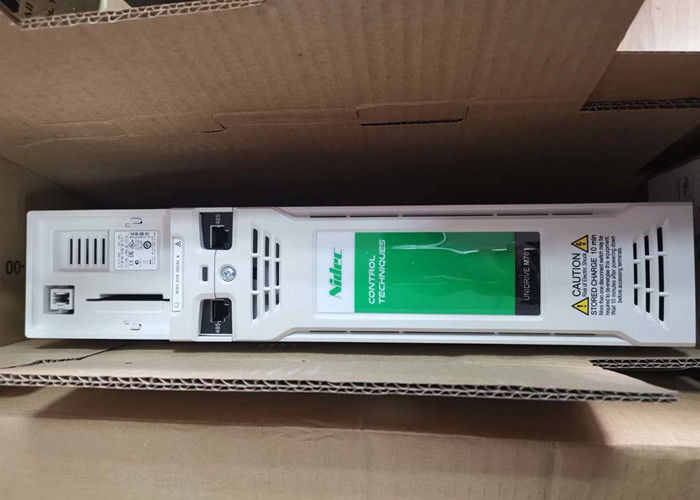

Control Techniques Industrial AC Inverter M701-09202190A Nidec Emerson M700 Unidrives NEW

: Large Image : Control Techniques Industrial AC Inverter M701-09202190A Nidec Emerson M700 Unidrives NEW

Product Details:

Place of Origin:	CHINA
Brand Name:	Emerson CONTROL TECHNIQUES
Certification:	CE
Model Number:	M701-09202190A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	2-3 work days
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	M701-09202190A	Type:	AC Inverter DRIVE
Series:	Unidrive M700	Condition:	NEW
Brand:	Nidec Control Techniques	Weight:	62kg
Highlight:	ac servo pack , ac servo drive

Control Techniques Industrial AC Inverter M701-09202190A Nidec Emerson M700 Unidrives NEW

Specifications

Control Techniques: M701-09202190A
Complete Model:M701-09202190A10100AB
Manufacturer:Control Techniques

Input Voltage (Vac): 200/240 ±10%
Heavy Duty - Max Continuous Current (A): 219
Heavy Duty - Motor Shaft Power (kW): 55
Heavy Duty - (Motor Shaft Power (hp): 75
Normal Duty - Max Continuous Current (A): 266
Normal Duty - Motor Shaft Power (kW): 75
Normal Duty - (Motor Shaft Power (hp):100

Description

The Unidrive M700 family of drives provides top-tier motor control for closed-loop induction, permanent megnet and servo applications. These drives are highly flexible, running from 0.75 kW - 2.8 MW (1 - 4200 hp) at 200V / 400V / 575V / 690V. While being able to control 1.5 axes, the motor is able to be fit with many types of encoders and resolvers to maximize feedback performance.

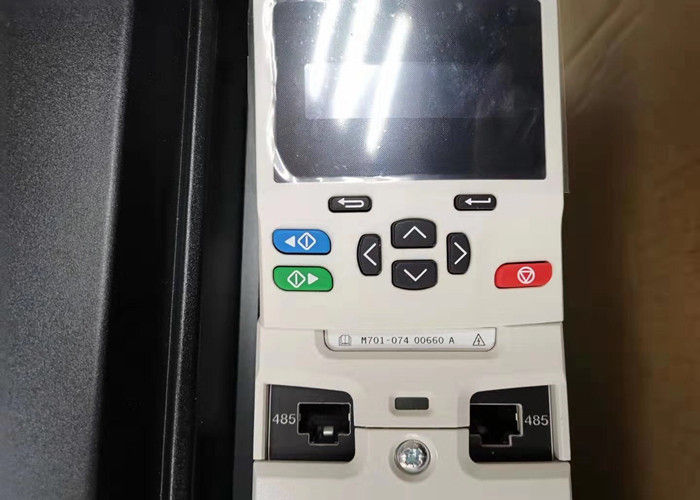

Keypads

Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)

KI-Keypad
Plain text, multi-language LCD keypad with up to 4 lines of text for in depth parameter and data descriptions, for enhanced user experience

KI-Keypad RTC
All the features of the KI-Keypad, but with battery operated realtime clock. This allows accurate time stamping of events, aiding diagnostics

Unidrive M700 AC drive - Class leading induction and permanent magnet servo motor performance, with real-time Ethernet

Control Mode

Open-loop vector or V/Hz induction motor control
Open-loop Rotor Flux Control for induction motors (RFC-A)
Open-loop permanent magnet motor control (RFC-S)
Closed-loop Rotor Flux Control for induction motors (RFC-A)
Closed-loop permanent magnet motor control (RFC-S)
Active Front End (AFE) power quality convertor

Standard features

Intelligence:

Onboard PLC
Advanced Motion Controller

Onboard comms:

M700 & M702 – Ethernet
M701 – RS485

Feedback:

2 x Encoder inputs
1 x Simulated encoder output

Machine safety:

M700 & M701 - 1 x Safe Torque Off (STO) terminal
M702 – 2 x STO terminals

Keypad:No keypad as standard

Option slots:3

Parameter Cloning Via:

PC tools
Smartcard
SD card

Single Drives:

1.0hp-400hp (0.75kW-250KW) Heavy Duty
1.0hp-450hp (0.75kW-280KW) Normal Duty

Modular Drives:

1.0hp-4200hp (0.75kW – 2.8MW)
230V / 460V / 575V / 690V

M700 adds onboard Ethernet, comprehensive position feedback and high performance control of dynamic permanent magnet servo motors
Fully compatible upgrade for existing Unidrive SP users

M700 delivers maximum machine throughput through greater control with single and multi-axis network synchronization. Onboard real-time Ethernet (IEEE 1588 V2), advanced motion control and high speed I/O for position capture enables machine builders to easily create more sophisticated and flexible machines.

Specifications

Key data

Heavy Duty rating: 1.0hp – 4200hp (0.75kW – 2.8MW)
Supply phases: 3 phase

Models of AC DRIVE M701-074

M701-07400660A	Control Techniques M700 Drives Unidrives M701-03400100A-12.3 Maximum Continuous Current Amps, 5.5 Motor Shaft Power kW, 7.5 Motor Shaft Power HP
M701-07400770A	Control Techniques M700 Drives Unidrives M701-04200137A-18 Maximum Continuous Current Amps, 4 Motor Shaft Power kW, 5 Motor Shaft Power HP
M701-07401000A	Control Techniques M700 Drives Unidrives M701-04200185A-24 Maximum Continuous Current Amps, 5.5 Motor Shaft Power kW, 7.5 Motor Shaft Power HP

Specifications of AC Drive M700

200/240 VAC +/-10%	Normal Duty			Heavy Duty
Order Code	Max Continuous Current (A)	Motor Shaft Power (kW)	Motor Shaft Power (HP)	Max Continuous Current (A)	Motor Shaft Power (kW)	Motor Shaft Power (HP)
M701-03200050A10	6,6	1,1	1,5	5	0,75	1
M701-03200066A10	8	1,5	2	6,6	1,1	1,5
M701-03200080A10	11	2,2	3	8	1,5	2
M701-03200106A10	12,7	3	3	10,6	2,2	3
M701-04200137A10	18	4	5	13,7	3	3
M701-04200185A10	24	5,5	7,5	18,5	4	5
M701-05200250A10	30	7,5	10	25	5,5	7,5
M701-06200330A10	50	11	15	33	7,5	10
M701-06200440A10	58	15	20	44	11	15
M701-07200610A10	75	18,5	25	61	15	20
M701-07200750A10	94	22	30	75	18,5	25
M701-07200830A10	117	30	40	83	22	30
M701-08201160A10	149	37	50	116	30	40
M701-08201320A10	180	45	60	132	37	50
M701-09201760A10100AB	216	55	75	176	45	60
M701-09202190A10100AB	266	75	100	219	55	75

380/480 VAC +/-10%	Normal Duty			Heavy Duty
Order Code	Max Continuous Current (A)	Motor Shaft Power (kW)	Motor Shaft Power (HP)	Max Continuous Current (A)	Motor Shaft Power (kW)	Motor Shaft Power (HP)
M701-03400025A10	3,4	1,1	1,5	2,5	0,75	1
M701-03400031A10	4,5	1,5	2	3,1	1,1	1,5
M701-03400045A10	6,2	2,2	3	4,5	1,5	2
M701-03400062A10	7,7	3	5	6,2	2,2	3
M701-03400078A10	10,4	4	5	7,8	3	5
M701-03400100A10	12,3	5,5	7,5	10	4	5
M701-04400150A10	18,5	7,5	10	15	5,5	10
M701-04400172A10	24	11	15	17,2	7,5	10
M701-05400270A10	30	15	20	27	11	20
M701-05400300A10	30	15	20	30	15	20
M701-06400350A10	38	18,5	25	35	15	25
M701-06400420A10	48	22	30	42	18,5	30
M701-06400470A10	63	30	40	47	22	30
M701-07400660A10	79	37	50	66	30	50
M701-07400770A10	94	45	60	77	37	60
M701-07401000A10	112	55	75	100	45	75
M701-08401340A10	155	75	100	134	55	100
M701-08401570A10	184	90	125	157	75	125
M701-09402000A10100AB	221	110	150	200	90	150
M701-09402240A10100AB	266	132	200	224	110	150

SP Drives

SP1201	SP1202	SP1203	SP1204	SP2201	SP2202	SP2203	SP3201
SP3202	SP4201	SP4202	SP4203	SP5201	SP5202	SP3501	SP3502
SP0401	SP0402	SP0403	SP0404	SP0405	SP1401	SP1402	SP1403
SP1404	SP1405	SP1406	SP2201	SP2202	SP2401	SP2402	SP2403
SP2404	SP3401	SP3402	SP3403	SP4401	SP4402	SP4403	SP5401
SP5402	SP5403	SP6401	SP6402	SP3505	ES2401	ES2402	ES2403
SP3503	SP3504	SP3506	SP4601	SP4602	SP4603	SP4604	SP4605
SP4606	SP5601	SP5602	SP6601	SP6602	Unidrive SP	Quantum MP	Mentor MP

Commander SK AC Inverter

SKA1100025	SKA1100037	SKB1100075	SKB1100110	SKA1200025	SKA1200037	SKA1200055
SKBD200110	SKBD200150	SKCD200220	SKDD200300	SKD3200400	SKB3400037	SKB3400055
SKB3400110	SKB3400150	SKB3400220	SKB3400300	SKB3400400	SKB3400550	SKB3400750
SKA1200075	SKB3400075	SK3201	SK3202	SK4201	SK4202	SK4203
SK2402	SK2403	SK2404	SK3401	SK3402	SK3403	SK4401
SK4403	SK5401	SK5402	SK6401	SK6402	SK3501	SK3502
SK3504	SK3505	SK3506	SK3507	SK4601	SK4602	SK4603
SK4605	SK4606	SK5601	SK5602	SK6601	SK6602	SK6602
SK2401	SK4402	SK2201	SK2202	SK2203	SK3503	SK4604

UNI Drives:

UNI1201	UNI1202	UNI1203	UNI1204	UNI1205	UNI2201	UNI2202	UNI2203
UNI3201	UNI3202	UNI3203	UNI3204	UNI1401	UNI1402	UNI1403	UNI1404
UNI1405	UNI2401	UNI2402	UNI2403	UNI3401	UNI3402	UNI3403	UNI3404
UNI3405	UNI4401	UNI4402	UNI4403	UNI4404	UNI4405	UNI5401	SP5402

Applications of Industrial AC Drive M700
