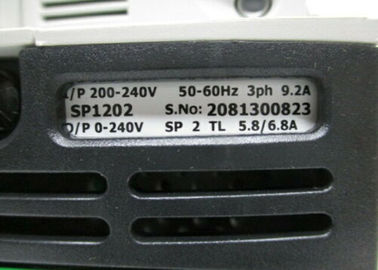

NIDEC Emerson Control Techniques Unidrive SP1202 200VAC Panel Mount Drive SP2TL 5.8/6.8A

Specifications

Description

Unidrive SP 230/460/690 VAC Servo Drive

The Unidrive SP offers flexibility with an extensive range of options that can be combined for space saving solutions. This drive is available in panel mount, free-standing, and modular models. Ranging from 1 to 200 HP, panel mount models are available in 6 frame styles. Free-standing models range from 150 to 1000 HP and are pre-engineered drives, packaged in an IP20 enclosure. Modular systems are pre- packaged solutions for the most common industrial applications ranging from 60 to 2000 HP.The Unidrive SP is dual duty rated and available in all AC voltages. This drive is available without a keypad (NKP) or with an LED, or more advanced, remount-able LCD keypad. The keypad is used to navigate parameter structure but this drive can also be used without one. Other standard features are a SmartCard which enables simple configuration of parameters, Modbus RTU communications, and an internal EMC filter.Additional SM Modules add PLC functionality and drive-to-drive networking capabilities. The most popular industrial protocols are available. Customize your drive with additional option modules that easily plug in beneath the cover. Modules are available for specialized I/O, enhanced encoder feedback, resolver, communications, and programming functions. Other optional accessories include HMI units, dynamic braking resistors (internal and external styles available), advanced external EMC filters, and DC back up power supplies. Optimize your motion control with a cost-effective SP Drive system today!

Flexibility

• Open loop, Closed loop, Servo and Regeneration modes of operation all selectable as standard by the user.
• Widest possible fieldbus option range with PROFIBUS, DeviceNet, CANopen, Modbus RTU,INTERBUS, CTNet.
• Unique fieldbus to fieldbus gateway approach eliminates costly interfaces when more than one fieldbus type is required.
• True scalability of the PLC processing power with internal SM-Applications technology.
• System status can be accessed whilst drives are running using the "hot-pluggable" RJ45 port and CTSoft PC tool.
• User interface requirements can be scaled to budget and application with a choice of LED or dual language LCD keypads.
• Universal encoder feedback accepts 14 different types.
• Global voltage supply, 200V to 575V ac.

Performance

• Powerful SM-Applications module option for implementing fully customized solutions, or executing pre-engineered solutions. Conforms to IEC61131-3.
• Ultra fast speed and torque updates maximize dynamic response in demanding applications.
• Drive to drive synchronization for multiaxis motion co-ordination.
• Distributed control via CTNet fieldbus.
• Rapid response to motion profile demands with dynamic 250µs update rate.
• True system drive performance scalable to your solution.
• Integrated EMC filter meets EN61800-3.
• Secure Disable feature as standard reduces cost by lowering system component count while meeting EN954-1 category 3.
• Modbus RTUas standard.
• Auto parameter back-up by using the for security and fast commissioning.
• Only one learning curve for mastering all types of drives.
• Zero space PLC (IEC61131-3) option.
• Prepackaged applications software for Winders,Flying Shears, etc, etc.
• Truly scalable PLC power with up to 3 zero-space SM-Applications modules.

Models of Unidrives SP1201 to SP1204:
