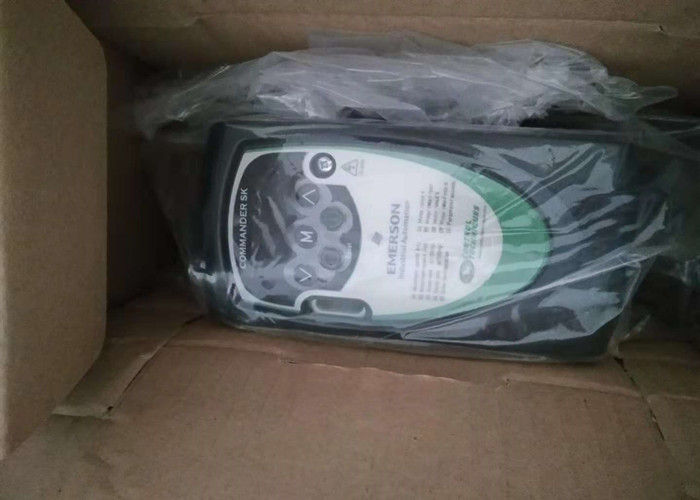

Control Techniques AC Drives, Commander SK Series Item# SKB1100075 - DRIVE, AC, 1HP, 240V, 4A, CT, 115V 1-Ph In, 1HP 4A VT W/DB Trans, 8.1"Hx3.4"Wx6.2"D
Commander SK Series InformationGeneral Purpose Open Loop Vector Control0.25 to 132kW (0.33 to 200HP) 120V, 240V, 480V, 575V, 690VNEMA 1 (IP20)
The Commander SK is a simple to use compact drive suitable for a variety of applications demanding high cycle rates and tight speed control to fan and pump applications requiring optimum energy savings.Simple installation ‑ choose between panel mounting or DIN‑rail mounting (up to 2 hp)Simple connection ‑ clearly marked easy access terminalsSimple startup ‑ pushbutton set up of all the parameters, the 10 most used parameters are on the front of the drive covering 90% of the applications.Select from nine pre‑configured I/O modesBuilt-in EMC filter 4a 1ph emerson control techniques commander inverter sk x 0.75kw 110vac
Specifications
| Item Category |
Drives |
|---|
| Subcategory |
AC |
|---|
| Input Phase |
1 |
|---|
| Application |
Industrial |
|---|
| Amps (CT) |
4 Amps |
|---|
| Amps (VT) |
4 Amps |
|---|
| Max. Frequency |
550 Hertz |
|---|
| Braking Type |
DC Injection;Dynamic Braking Transistor Included |
|---|
| AC Line Regenerative? |
No |
|---|
| Closed Loop |
No |
|---|
| Motor Control-Max Level |
Open Loop Vector (Sensorless Vector) |
|---|
| Operator Controls |
Built In |
|---|
| Enclosure Rating |
NEMA 1;IP20 |
|---|
| Comments |
Drive has open vents. Standard control panel features a 7-digit LED display. LCD display avail. |
|---|
| Mounting |
Floor |
|---|
| Package |
SKBIP20 |
|---|
| Height |
8.1 Inches |
|---|
| Width |
3.4 Inches |
|---|
| Depth |
6.2 Inches |
|---|
| H x W x D |
8.1 in x 3.4 in x 6.2 in |
|---|
| Net Weight |
3 lb |
|---|
| Gross Weight |
3 lb |
|---|
| output |
0.75 KW |
|---|
| HP (CT) |
1 Horsepower |
|---|
| HP (VT) |
1 Horsepower |
|---|
| Nominal Input VAC |
120 Volts AC |
|---|
| Input Range VAC |
108 to 132 Volts AC |
|---|
| current |
4 A |
|---|
| phase |
1 PHASE |
|---|
