Description
Control Techniques' Commander SK is easy to use and offers great value. The drive modules are compact and offer excellent motor control. With onboard intelligence, I/O, Ethernet and fieldbus communications options, Commander SK allows you to do far more than you would expect from a standard open loop drive. Control Techniques Part Reference: SKB1100075.
The Commander SK is a simple to use compact drive suitable for a variety of applications demanding high cycle rates and tight speed control to fan and pump applications requiring optimum energy savings.Simple installation ‑ choose between panel mounting or DIN‑rail mounting (up to 2 hp)Simple connection ‑ clearly marked easy access terminalsSimple startup ‑ pushbutton set up of all the parameters, the 10 most used parameters are on the front of the drive covering 90% of the applications.Select from nine pre‑configured I/O modesBuilt-in EMC filter 4a 1ph emerson control techniques commander inverter sk x 0.75kw 110vac
Specifications
Size A: 75mm Wide x 145mm Deep x 154mm High. IP20
Weight: 1kg.
Overload: 150% x 60 seconds
Speed Control Range: 0-1500Hz
Braking: Minimum 68 Ohm, Maximum 1.1kW external resistor (not supplied) - use the 'Which Resistor' button on this page.
1 Analogue Input, 1 Analogue/Digital Input, 4 Digital Inputs, 1 Analogue Output, 1 Digital Input/Output, 1 Relay Contact set, RJ45 port for Modbus.
Input Current: 10.5A
Input Voltage: 200-240V Single Phase ±10% at 50-60Hz ±5%
EMC Filters: EN 61800-3:2004 Second Environment (Industrial). Can be disabled using pull-tab.
Wall mount in clean environment or cubicle mount.
Rated 40°C Ambient.
Ventilation space in front: [not specified].
Ventilation space above and below: 100mm.
Ventilation space at sides: 10mm (0mm between drives).
Heat Loss at max output: 48W (at rated ambient temperature and default switching frequency).
Mounting via 35mm DIN rail or 4 x holes at rear for M4 screws on 53mm x 140mm centres.

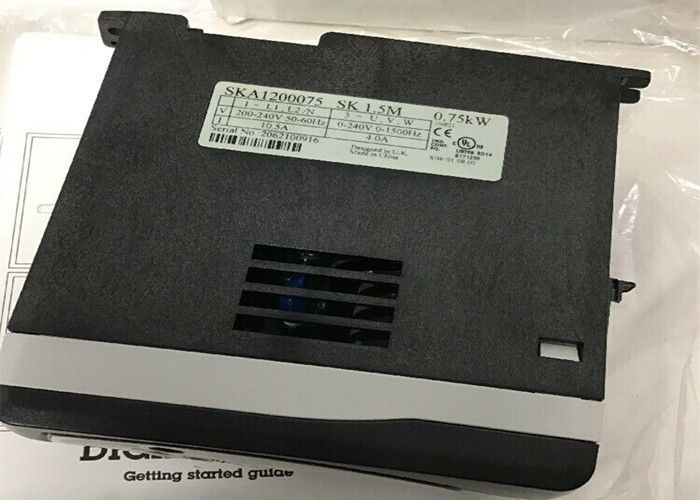

Manufacturer part number is SKA1200075. Replaces Commander SE.
Some Similiar Drive
SKA1100025 |
SKA1100037 |
SKA1200025 |
SKA1200037 |
SKA1200055 |
SKA1200075 |
SKB1100075 |
SKB1100110 |
SKBD200110 |
SKBD200150 |
SKB3400037 |
SKB3400055 |
SKB3400075 |
SKB3400110 |
SKB3400150 |
SKCD200220 |
SKC3400220 |
SKC3400300 |
SKC3400400 |
SKDD200300 |
SKD3200400 |
SKD3400550 |
SKD3400750 |
SKA1100025 |
SKA1100037 |
SKA1200025 |
SKA1200037 |
SKA1200055 |
SKA1200075 |
SKB1100075 |
SKB1100110 |
SKBD200110 |
SKBD200150 |
SKB3400037 |
SKB3400055 |
SKB3400075 |
SKB3400110 |
SKB3400150 |
SKCD200220 |
SKC3400220 |
SKC3400300 |
SKC3400400 |
SKDD200300 |
SKD3200400 |
SKD3400550 |
SKD3400750 |
SK KEYPAD |
SM KEYPAD |

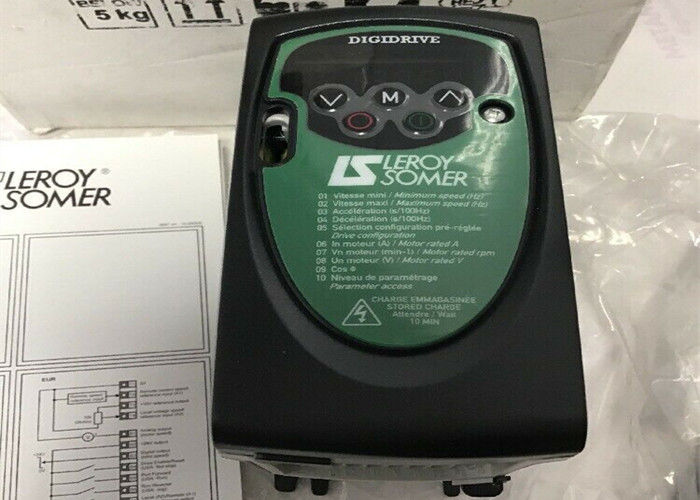

Keypad and display
The keypad and display are used for the following:
•Displaying the operating status of the drive
•Displaying a fault or trip code
•Reading and changing parameter values
•Stopping, starting and resetting the drive
Unidrive M: compatibility with Commander SK and Unidrive SP
Mechanical
• Compatible physical dimensions, weights and surface mount footprint.
• When retrofitting surface mount drives, existing mounting holes can be reused-negating the need for additional drilling. Mounting holes are in the same place or retrofit kits are available.
Electrical
• Power and control wiring adopt the same philosophy as Commander SK and Unidrive SP.
Parameters
• The same menu and parameter structure is adopted by Unidrive M.
• Parameters can be transferred from Unidrive SP to Unidrive M using a Smartcard.
• Unidrive M Connect can be used to transfer parameters from Unidrive SP and Commander SK to Unidrive M.
Software programs
• The SI-Applications Plus option module can compile SyPTPro programs for Unidrive M.
