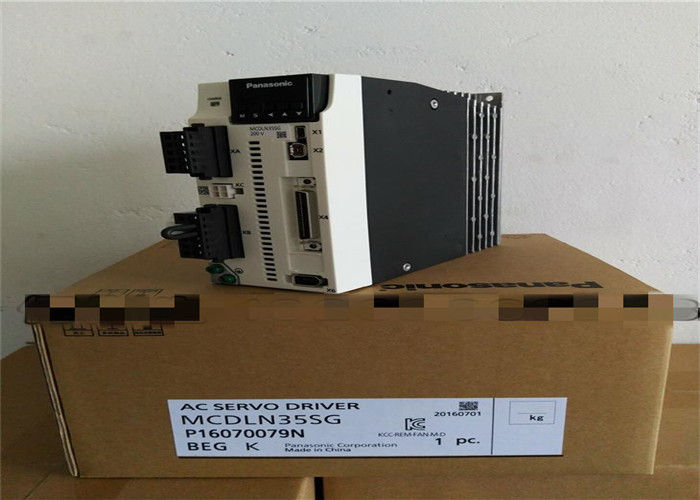

Single/3-phase 750W 200V MCDLN35SG Industrial Servo Drives Panasonic

Name: Single/3-phase 750W 200V MCDLN35SG Industrial Servo Drives Panasonic
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: MCDLN35SG
Price: 10000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE
Model Number:	MCDLN35SG

Detail Information

Place of Origin:

Japan

Brand Name:

Panasonic

Certification:

Model Number:

MCDLN35SG

Brand:

Panasonic

Modenl Number:

MCDLN35SG

Country Of Origin:

Japan

AC Voltage:

200V

Frequency Response:

3.2 KHz

Current - Output:

12A

Supply Voltage:

Single/3-phase 200 V

Type:

Industrial Servo Drives

Series:

A6SF Series

Highlight:

High Light

Highlight:

ac servo pack

ac servo drive

Trading Information

Minimum Order Quantity:

Price:

Contact

Packaging Details:

new and original

Delivery Time:

3-5days

Payment Terms:

T/T, Western Union,paypal

Product Description

Single/3-phase 750W 200V MCDLN35SG Industrial Servo Drives Panasonic

Detailed Product Description

Part Status Active

Type Module

Motor Type Servo

Control / Drive Type Servo AC

Number of Motors 1

Voltage - Load 200V

Current - Output 22A

Wattage - Load 750W

Voltage - Supply 200VAC

Interface RS-232, RS-485, USB

Mounting Type Chassis Mount

Operating Temperature 0°C ~ 55°C

Features -

For Use With/Related Products MINAS A6 Series

Specifications

Part Number	MCDLN35SG
Details	A6SG series RS485/RS232 Communication type (Pulse train only) without safety function
Family Name	MINAS A6
Series	A6SG series
Type	RS485/RS232 Communication type
Frame	C-Frame
Frequency response	3.2 kHz
Control method	Position control
Safety Function	without the safety function
Supply voltage	Single/3-phase 200 V
I/F Classification of type	Pulse, Modbus (RS485 /RS232)
Dimensions (W) (Unit: mm)	65
Dimensions (H) (Unit: mm)	150
Dimensions (D) (Unit: mm)	170
Mass (kg)	1.6
Environment	For more details, please refer to the instruction manual.

nput power: Main circuit	Single/3-phase 200 to 240V +10% -15% 50/60 Hz
Input power: Control circuit	Single phase 200 to 240V +10% -15% 50/60 Hz
Encoder feedback	23-bit (8388608 resolution) absolute encoder, 7-wire serial
Parallel I/O connector: Control signal Input	General purpose 10 inputs The function of general-purpose input is selected by parameters.
Parallel I/O connector: Control signal Output	General purpose 6 output The function of general-purpose output is selected by parameters.
Parallel I/O connector: Analog signal Output	2 outputs (Analog monitor: 2 output)
Parallel I/O connector: Pulse signal Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O connector: Pulse signal Output	4 outputs (Line driver: 3 output, open collector: 1 outp

We also have other products, If you any needs ,just feel free to contact me

MSMF012L1U2M	100W MSMF	Motor without brake
MSMF012L1V2M		Motor with brake
MSMF012L1U1M		Motor without brake
MSMF012L1V1M		Motor with brake
MADLT05SF		All in one Amplifier
MADLN05SE		Pulse Amplifier
MADLN05SG		Communication type Amplifier


MSMF042L1U2M	400W MSMF, MHMF	Motor without brake
MSMF042L1V2M		Motor with brake
MHMF042L1U2M		Motor without brake
MHMF042L1V2M		Motor with brake
MSMF042L1U1M		Motor without brake
MSMF042L1V1M		Motor with brake
MBDLT25SF		All in one Amplifier
MBDLN25SE		Pulse Amplifier
MBDLN25SG		Communication type Amplifier

MSMF082L1U2M	750W MSMF, MHMF	Motor without brake
MSMF082L1V2M		Motor with brake
MHMF082L1U2M		Motor without brake
MHMF082L1V2M		Motor with brake
MSMF082L1U1M		Motor without brake
MSMF082L1V1M		Motor with brake
MCDLT35SF		All in one Amplifier
MCDLN35SE		Pulse Amplifier
MCDLN35SG		Communication type Amplifier

MDMF102L1G6M	1KW MDMF	Motor without brake
MDMF102L1H6M		Motor with brake
MDDLT45SF		All in one Amplifier
MDDLN45SE		Pulse Amplifier
MDDLN45SG		Communication type Amplifier

MDMF152L1G6M	1.5KW MDMF	Motor without brake
MDMF152L1H6M		Motor with brake
MDDLT55SF		All in one Amplifier
MDDLN55SE		Pulse Amplifier
MDDLN55SG		Communication type Amplifier


MSMF102L1G6M	1KW MSMF	Motor without brake
MSMF102L1H6M		Motor with brake
MDDLT55SF		All in one Amplifier
MDDLN55SE		Pulse Amplifier
MDDLN55SG		Communication type Amplifier

MSMF152L1G6M	1.5KW MSMF	Motor without brake
MSMF152L1H6M		Motor with brake
MDDLT55SF		All in one Amplifier
MDDLN55SE		Pulse Amplifier
MDDLN55SG		Communication type Amplifier


MHMF102L1G6M	1KW MHMF	Motor without brake
MHMF102L1H6M		Motor with brake
MDDLT45SF		All in one Amplifier
MDDLN45SE		Pulse Amplifier
MDDLN45SG		Communication type Amplifier

MHMF152L1G6M	1.5KW MHMF	Motor without brake
MHMF152L1H6M		Motor with brake
MDDLT55SF		All in one Amplifier
MDDLN55SE		Pulse Amplifier
MDDLN55SG		Communication type Amplifier
