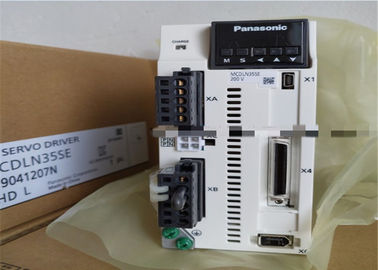

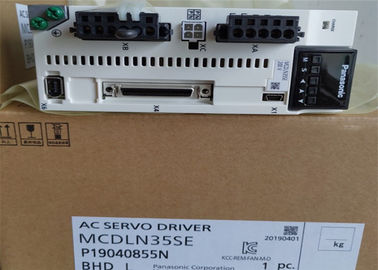

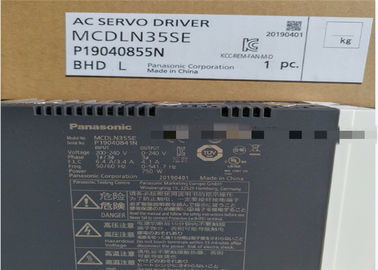

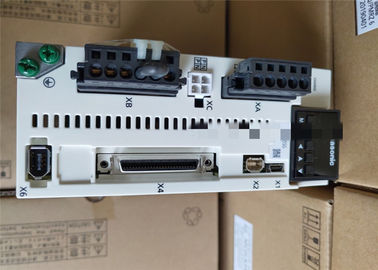

Panasonic MCDLN35SE Servo AC 200VAC Supply 22A 200V Industrial Servo Drives
Detailed Product Description
| Manufacturer |
Panasonic Industrial Automation Sales |
| Series |
MINAS A6 |
| Part Status |
Active |
| Type |
Module |
| Motor Type |
Servo |
| Control / Drive Type |
Servo AC |
| Number of Motors |
1 |
| Voltage - Load |
200V |
| Current - Output |
22A |
| Wattage - Load |
750W |
| Voltage - Supply |
200VAC |
| Interface |
RS-232, RS-485, USB |
| Mounting Type |
Chassis Mount |
| Operating Temperature |
0°C ~ 55°C |
| Features |
- |
| For Use With/Related Products |
MINAS A6 Series |
Specifications
Part Number MCDLN35SE
Details A6SE series
Position control type (Incremental system only, Pulse train only)
without the safety function
Family Name MINAS A6
Series A6SE series
Type Position control type
Frame C-Frame
Frequency response 3.2 kHz
Control method Position control
About control method A6SE series driver (Position control only) does not correspond to the absolute system of using the serial communication with the host device. It supports incremental system only.
Safety Function without the safety function
Supply voltage Single/3-phase 200 V
I/F Classification of type Pulse train only
Dimensions (W) (Unit: mm) 65
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.6
Environment For more details, please refer to the instruction manual.
We also have other products, If you any needs ,just feel free to contact me
| MSMF012L1U2M |
100W
MSMF |
Motor without brake |
| MSMF012L1V2M |
Motor with brake |
| MSMF012L1U1M |
Motor without brake |
| MSMF012L1V1M |
Motor with brake |
| MADLT05SF |
All in one Amplifier |
| MADLN05SE |
Pulse Amplifier |
| MADLN05SG |
Communication type Amplifier |
| |
|
|
| |
|
|
| MSMF042L1U2M |
400W
MSMF, MHMF |
Motor without brake |
| MSMF042L1V2M |
Motor with brake |
| MHMF042L1U2M |
Motor without brake |
| MHMF042L1V2M |
Motor with brake |
| MSMF042L1U1M |
Motor without brake |
| MSMF042L1V1M |
Motor with brake |
| MBDLT25SF |
All in one Amplifier |
| MBDLN25SE |
Pulse Amplifier |
| MBDLN25SG |
Communication type Amplifier |
| |
|
|
| MSMF082L1U2M |
750W
MSMF, MHMF |
Motor without brake |
| MSMF082L1V2M |
Motor with brake |
| MHMF082L1U2M |
Motor without brake |
| MHMF082L1V2M |
Motor with brake |
| MSMF082L1U1M |
Motor without brake |
| MSMF082L1V1M |
Motor with brake |
| MCDLT35SF |
All in one Amplifier |
| MCDLN35SE |
Pulse Amplifier |
| MCDLN35SG |
Communication type Amplifier |
| |
|
|
| MDMF102L1G6M |
1KW
MDMF |
Motor without brake |
| MDMF102L1H6M |
Motor with brake |
| MDDLT45SF |
All in one Amplifier |
| MDDLN45SE |
Pulse Amplifier |
| MDDLN45SG |
Communication type Amplifier |
| |
|
|
| MDMF152L1G6M |
1.5KW
MDMF |
Motor without brake |
| MDMF152L1H6M |
Motor with brake |
| MDDLT55SF |
All in one Amplifier |
| MDDLN55SE |
Pulse Amplifier |
| MDDLN55SG |
Communication type Amplifier |
| |
|
|
| |
|
|
| MSMF102L1G6M |
1KW
MSMF |
Motor without brake |
| MSMF102L1H6M |
Motor with brake |
| MDDLT55SF |
All in one Amplifier |
| MDDLN55SE |
Pulse Amplifier |
| MDDLN55SG |
Communication type Amplifier |
| |
|
|
| MSMF152L1G6M |
1.5KW
MSMF |
Motor without brake |
| MSMF152L1H6M |
Motor with brake |
| MDDLT55SF |
All in one Amplifier |
| MDDLN55SE |
Pulse Amplifier |
| MDDLN55SG |
Communication type Amplifier |
| |
|
|
| |
|
|
| MHMF102L1G6M |
1KW
MHMF |
Motor without brake |
| MHMF102L1H6M |
Motor with brake |
| MDDLT45SF |
All in one Amplifier |
| MDDLN45SE |
Pulse Amplifier |
| MDDLN45SG |
Communication type Amplifier |
| |
|
|
| MHMF152L1G6M |
1.5KW
MHMF |
Motor without brake |
| MHMF152L1H6M |
Motor with brake |
| MDDLT55SF |
All in one Amplifier |
| MDDLN55SE |
Pulse Amplifier |
| MDDLN55SG |
Communication type Amplifier
|
