NIDEC EMERSON Control Techniques Panel Mount Drive SP5601 Industrial Inverter NEW in stock

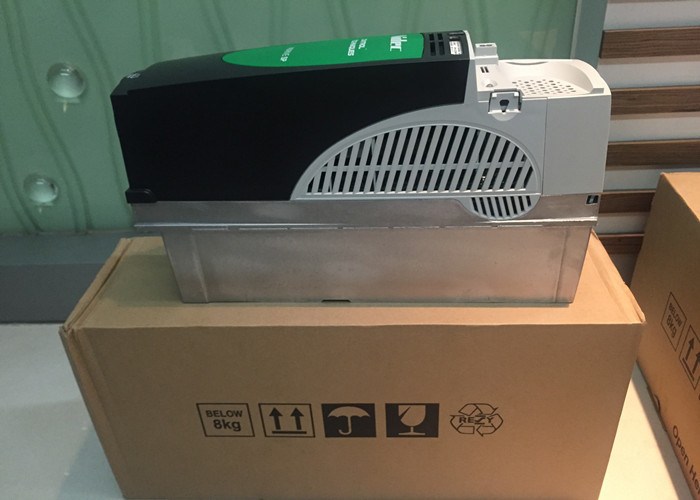

: Large Image : NIDEC EMERSON Control Techniques Panel Mount Drive SP5601 Industrial Inverter NEW in stock

Product Details:

Place of Origin:	CHINA
Brand Name:	Emerson CONTROL TECHNIQUES
Certification:	CE
Model Number:	SP5601

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	2-3 work days
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Model:	SP5601	Type:	AC DRIVE
Series:	Unidrive SP	Voltage:	200-240V
Brand:	Nidec Control Techniques	Weight:	50kg
High Light:	electric servo drive , ac servo pack

NIDEC EMERSON Control Techniques Panel Mount Drive SP5601 Industrial Inverter NEW in stock

Specifications:

Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current (hp): Normal Duty - 84A (75/100hp), Heavy Duty - 63A (60/75hp)

Description

Unidrive SP 230/460/690 VAC Servo Drive

Unidrive SP is a complete drive automation range that covers the power spectrum from 0.37kW to 1.9MW. All drives share the same ﬂexible control interface regardlessof the power rating. Drives are packaged in three formats:Panel Mount, Free Standing and Modular.

Unidrive SP in Servo Mode
1.3 A – 210 A rms (2.27 A – 315 A Peak)
230 V | 460 V
Unidrive SP can control a wide range of industrial motors. In servo mode, the drive operates as a high performance servo amplifier, matched to the Unimotor fm range and optimized for continuous duty applications due to its high continuous output rating. Typical continuous duty applications include printing, winding and labeling.

SP Drives

SP1201	SP1202	SP1203	SP1204	SP2201	SP2202	SP2203	SP3201
SP3202	SP4201	SP4202	SP4203	SP5201	SP5202	SP3501	SP3502
SP0401	SP0402	SP0403	SP0404	SP0405	SP1401	SP1402	SP1403
SP1404	SP1405	SP1406	SP2201	SP2202	SP2401	SP2402	SP2403
SP2404	SP3401	SP3402	SP3403	SP4401	SP4402	SP4403	SP5401
SP5402	SP5403	SP6401	SP6402	SP3505	ES2401	ES2402	ES2403
SP3503	SP3504	SP3506	SP4601	SP4602	SP4603	SP4604	SP4605
SP4606	SP5601	SP5602	SP6601	SP6602	Unidrive SP	Quantum MP	Mentor MP

Options:

Item	Description
SYPT-LITE	Programming tool for drive's with built in PLC capability and SM-Apps Lite Module
SYPTPRO	Coprocessor module programming and CTNet system configuration tool, Software registration required
SM-APPLICATIONS	Applications Solutions Module, Programmable with SyPT via CTNet or RS485, 2 digital inputs and 2 digital outputs for high speed I/O operations
SM-APPS-LITE	Applications Lite Solutions Module, Programmable with SyPT or SyPT Lite
SM-APPS-LITE-PLUS	Applications Lite Solutions Module with faster processor, Programmable with SyPT or SyPT Lite
SM-APPS-PLUS	Applications Solutions Module with faster processor, Programmable with SyPT via CTNet or RS485, 2 digital inputs and 2 digital outputs for high speed I/O operations
SM-EZMOTION	Motion Made Easy Solutions Module, Utilizing PowerTools programming software
SM-ETC	15 Pin D Shell to 15 pin screw terminal break out board for servo and vector motor encoder feedback cable
DST-KEYPAD	LED Keypad, Configured for Digitax ST
SM-HEATSINK-DBR1	DB Resistor, 75 Ohm, 50 Watt, Heatsink for Unidrive SP size 1 & Epsilon EP
SM-HEATSINK-DBR2	DB Resistor, 37.5 Ohm, 100 Watt, Heatsink for Unidrive SP size 2
BRM-1	Brake Relay module, 24V, 1 contact, 6 amp, DIN rail mounting (EN, EP, Epsilon, MDS to CBMS, CBMF, XTBMS, XCMDBS)
4200-6000	EMC (RFI) Filter, amps, 230V 1 input, Panel Mount
4200-6001	EMC (RFI) Filter, amps, 230V 3 input, Panel Mount
4200-6002	EMC (RFI) Filter, amps, 460V 3 input, Panel Mount
SM-ENCODER-OUT	Incremental Encoder Output Solution Module to enable connection with external motion controllers
SM-ENCODER-PLUS	Encoder Plus Solutions Module, provides an additional incremental encoder feedback port.
SM-UNI-ENCODER	Universal Encoder Plus Solutions Module, provides an additional increamental or Absolute encoder feedback port and simulated encoder output.
SM-RESOLVER	Resolver Solutions Module, providing a resolver feedback port, w/simulated encoder output
SM-I/O-120	I/O Solutions Module, 6 inputs (120Vac) or 3 inputs (240Vac) & 2 Relay Outputs (2A @ 240Vac or 4A@30Vdc)
SM-I/O-24V	I/O Solutions Module, 24V Protected, 3 DI, 4 DI/DO, 2 Relay Outputs, 2 current AO
SM-I/O-32	I/O Solutions Module with (32) Assignable 24VDC Digital Inputs/Outputs (Requires application programming.)
SM-I/O-LITE	I/O Lite Solutions Module - (1) +/- 10V Bi-polar or 4-20mA input, (3) digital inputs, (1)? 0-10V or 4-20mA output, (1) relay output, (1) Incremental Encoder Speed Reference input
SM-I/O-PLUS	I/O Solutions Module, High Performance, (2) +/- 10V analog input, (1)? +/- 10V? output, (3) digital inputs, (3) programmable digital I/O,? (2) relay output,
SM-I/O-TIMER	I/O Lite Solutions Module w/real time clock for scheduling events, (1) +/- 10V Bi-polar or 4-20mA input, (3) digital inputs, (1)? 0-10V or 4-20mA output, (1) relay output, (1) Incl Enc Spd Ref input

Protocols:

Item	Description
SM-CAN	CAN Solutions Module
SM-CANOPEN	CANOpen Solutions Module
SM-DEVICENET	DeviceNet Solutions Module
SM-EtherCAT	EtherCAT Solutions Module
SM-ETHERNET	Ethernet /IP and Modbus TCP/IP Solutions Module
SM-INTERBUS	Interbus-S Solutions Module
SM-PROFIBUS-DP	Profibus-DP Solutions Module
SM-SERCOS	SERCOS Solutions Module

Commander SK AC Inverter

SKA1100025	SKA1100037	SKB1100075	SKB1100110	SKA1200025	SKA1200037	SKA1200055
SKBD200110	SKBD200150	SKCD200220	SKDD200300	SKD3200400	SKB3400037	SKB3400055
SKB3400110	SKB3400150	SKB3400220	SKB3400300	SKB3400400	SKB3400550	SKB3400750
SKA1200075	SKB3400075	SK3201	SK3202	SK4201	SK4202	SK4203
SK2402	SK2403	SK2404	SK3401	SK3402	SK3403	SK4401
SK4403	SK5401	SK5402	SK6401	SK6402	SK3501	SK3502
SK3504	SK3505	SK3506	SK3507	SK4601	SK4602	SK4603
SK4605	SK4606	SK5601	SK5602	SK6601	SK6602	SK6602
SK2401	SK4402	SK2201	SK2202	SK2203	SK3503	SK4604

UNI Drives:

UNI1201	UNI1202	UNI1203	UNI1204	UNI1205	UNI2201	UNI2202	UNI2203
UNI3201	UNI3202	UNI3203	UNI3204	UNI1401	UNI1402	UNI1403	UNI1404
UNI1405	UNI2401	UNI2402	UNI2403	UNI3401	UNI3402	UNI3403	UNI3404
UNI3405	UNI4401	UNI4402	UNI4403	UNI4404	UNI4405	UNI5401	SP5402
