GE FANUC IC693CHS393F ENHANCED 10-SLOT REMOTE BASE EXPANSION EMI one year warranty

GE FANUC IC693CHS393F ENHANCED 10-SLOT REMOTE BASE EXPANSION EMI one year warranty

QUICK DETAILS

1. Brand :GE
2. Model :IC693CHS393F
3. Place of Origin : USA

OTHER SUPERIOR PRODUCTS

There can be no more than 700 feet of cable connecting all baseplates in a system that uses Remote baseplates. A Remote baseplate cannot stand alone. It must be connected to a system that has a CPU. The CPU can be in a PLC or in a Personal Computer that is equipped with a Personal Computer Interface Card (see Chapter 11). Remote capability is facilitated by the Remote baseplate’s built-in isolation between the +5 volt logic supply used by the I/O modules residing in the Remote baseplate and the supply for the interface circuit associated with the I/O Bus Expansion Interface. Isolation helps prevent problems associated with unbalanced ground conditions. Maximum number of Remote baseplates allowed per system depends on the type of CPU they are used with. For CPUs 331, 340, and 341, the maximum is 4. For CPUs numbered 350 and higher, the maximum is 7. Each remote baseplate has a 25-pin female D-type Expansion connector mounted at its right end for connection to other baseplates. Remote baseplates are available in two sizes; 5-slot (IC693CHS398) and 10-slot (IC693CHS392) A Remote backplane does not support the following intelligent option modules: PCM, ADC, BEM330, and CMM. These modules must be mounted in a CPU baseplate. All other I/O and option modules can be mounted in any type of baseplate. Remote baseplates are the same physical size, use the same type power supplies, and support the same I/O and option modules as the Expansion baseplates. Each Remote baseplate has a Rack Number Selection DIP switch.

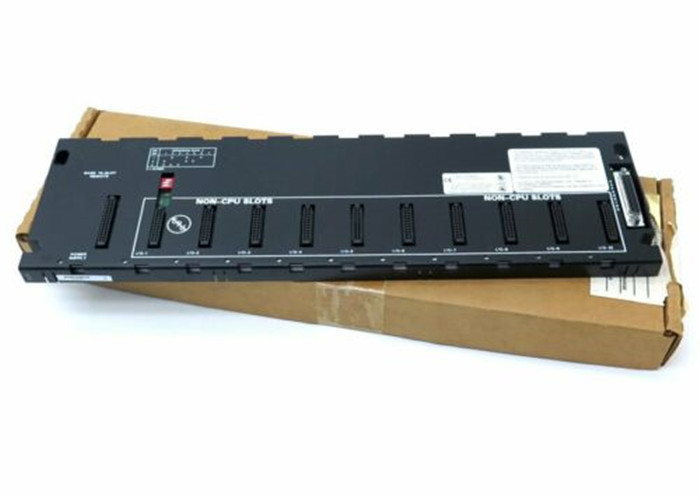

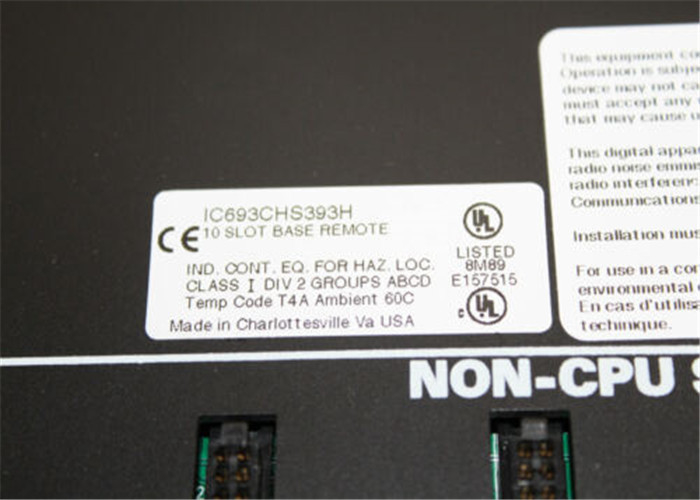

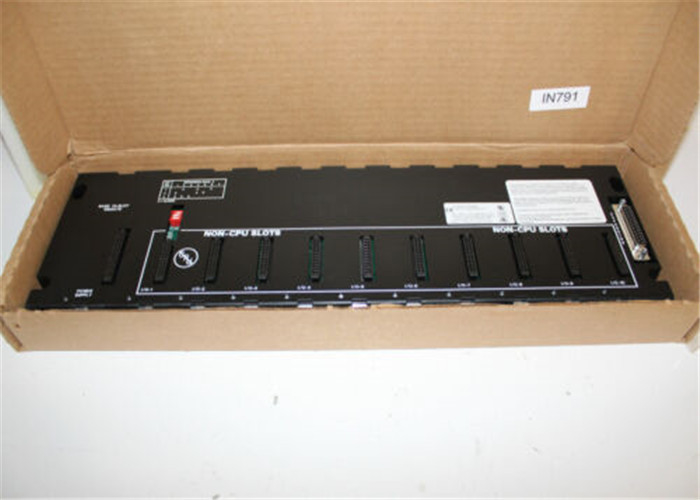

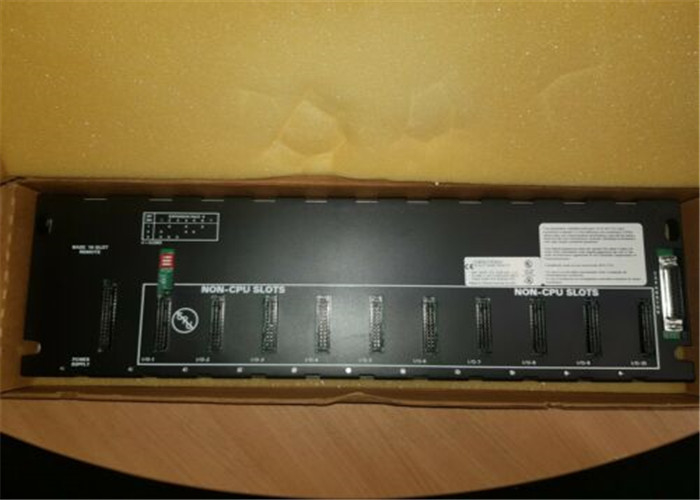

The GE Fanuc IC693CHS393 is a 10-slot remote baseplate. This component designed for the GE Series 90-30 PLC system. When operating any applications, users should be aware of a few things regarding this unit. Firstly, in any system that uses remote baseplates, the total amount of cable connecting all the baseplates must be less than 700 feet. Also, a remote baseplate cannot be a stand-alone unit. Instead, it must be connected to a system that has a CPU. This CPU may be in a programmable logic controller (PLC) or else in a PC. However, the PC must be equipped with a Personal Computer Interface Card.

The remote baseplate has built-in isolation. This is between the +5 volt logic supply used by the I/O modules that reside in the Remote baseplate and the supply for the interface circuit, which is associated with the I/O Bus Expansion Interface. Unbalanced ground conditions can lead to problems, so it is important to have isolation to counter these issues. The type of CPU in a system will determine the number of remote baseplates that can be used. The maximum is 4 for CPUs 331, 340, and 341. For all CPUs numbered 350 and higher, the maximum number that can be used is 7.
