GE 10V Analog Output IC693APU301 / AXIS POSITION MODULE 1 AXIS Series 90-30

Large Image :  GE 10V Analog Output IC693APU301 / AXIS POSITION MODULE 1 AXIS Series 90-30

Product Details:

Brand Name: GE
Model Number: IC693APU301

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: TT West Union
Supply Ability: 100
Detailed Product Description
Place Of Origin: USA Brand: GE
Model: IC693APU301 Product Name: Programmable Controller
Series: 90-70 Weight: 4.00 Lbs
Power: 100W Current: 125V
High Light:

ethernet plc controllers

,

industrial automation using plc

GE 10V Analog Output IC693APU301 / AXIS POSITION MODULE 1 AXIS Series 90-30







QUICK DETAILS



FANUC
GE FANUC
IC693APU301
DISCONTINUED BY MANUFACTURER
MOTION MATE AXIS POSITIONING MODULE
SERIES 90-30 PLC
24-PIN HIGH DENSITY CONNECTORS
AVAILABLE
REBUILT SURPLUS
NEVER USED SURPLUS
REPAIR YOURS
24-48 HOUR RUSH REPAIR
2 - 15 DAY REPAIR
2 YEAR RADWELL WARRANTY











OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
Fanuc motor A0- Yokogawa transmitter EJA-




The Motion Mate APM is an easy-to-use intelligent, fully programmable one-axis (IC693APU301) or two-axis (IC693APU302) motion control module for the Series 90-30 PLC. The APM allows a PLC user to combine high-performance control with PLC logic solving functions in one integrated system. The APM can be configured to operate in either Standard mode or Follower mode. When used in Standard mode, it combines high-performance motion control with PLC logic solving functions in one integrated system. When used in Follower mode, it provides high-performance “electronic gearing” for continuous master/slave applications. The desired mode is easily selected by configuring a setup parameter in the configuration software.


The Series 90-30 and APM operate together as one integrated motion control package. The APM controls axis motion and handles all direct communications to the drive and machine while the PLC automatically transfers data between PLC tables and the APM. The PLC also provides a means for connecting Operator Interfaces, which can control and monitor system operation. An example of an APM servo system showing the hardware and software used to configure, program, and operate the system is shown below. The APM can be installed in any Series 90-30 CPU, expansion, or remote baseplate. For embedded CPUs (311, 313, or 323), you may have up to three APM modules. For a modular CPU (331 or higher), you may have up to eight APM modules in one system, with a maximum of three APM modules per baseplate. Multiple motion programs may be created and stored in the APM (maximum of 10 may be stored in the APM) with the Motion Programmer software package. The APM is configured and programmed with VersaPro software (Version 1.1 or later) or Logic Developer-PLC.









SIMILAR PRODUCTS
IC697CPU782A IC697CPU782B IC697CPU782C
IC697CPU782D IC697CPU782E IC697CPU782F
IC697CPU782G IC697CPU782H IC697CPU782I
IC697CPU782J IC697CPU782K IC697CPU782L
IC697CPU782M IC697CPU782N IC697CPU782O
IC697CPU782P IC697CPU782Q IC697CPU782R
IC697CPU782S IC697CPU782T IC697CPU782U
IC697CPU782V IC697CPU782W IC697CPU782X
IC697CPU782Y IC697CPU782Z IC697CPU782-AA
IC697CPU782-AB IC697CPU782-AC IC697CPU782-AD
IC697CPU782-AE IC697CPU782-AF IC697CPU782-AG
IC697CPU782-AH IC697CPU782-BA IC697CPU782-BB
IC697CPU782-BC IC697CPU782-BD IC697CPU782-BE
IC697CPU782-BF IC697CPU782-BG IC697CPU782-BH
IC697CPU782-CA IC697CPU782-CB IC697CPU782-CC
IC697CPU782-CD IC697CPU782-CE IC697CPU782-CF
IC697CPU782-CG IC697CPU782-DA IC697CPU782-DB
IC697CPU782-DC IC697CPU782-DD IC697CPU782-DE
IC697CPU782-DF IC697CPU782-DG IC697CPU782-EA
IC697CPU782-EB IC697CPU782-EC IC697CPU782-ED
IC697CPU782-EE IC697CPU782-EF IC697CPU782-EG
IC697CPU782-FA IC697CPU782-FB IC697CPU782-FC
IC697CPU782-FD IC697CPU782-FE IC697CPU782-FF
IC697CPU782-FG IC697CPU782-GA IC697CPU782-GB
IC697CPU782-GC IC697CPU782-GD IC697CPU782-GE
IC697CPU782-GF IC697CPU782-GG IC697CPU782-GJ
IC697CPU782-GK IC697CPU782-HA IC697CPU782-HB
IC697CPU782-HC IC697CPU782-JC

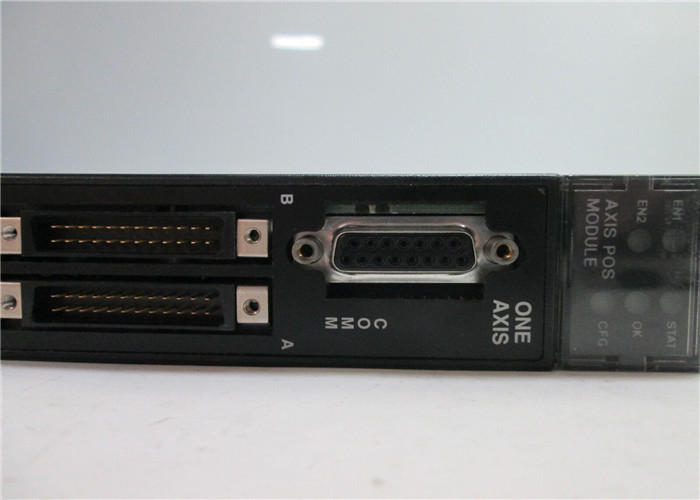

The APM faceplate (front panel) has two 24-pin high-density connectors for servo connections. The connector labeled A contains connections for Axis 1. Connector B, for a 1-axis APM, contains general purpose connections. Connector B, for a 2-axis APM, has connections for Axis 2 as well general purpose connections. To make wiring easier to the drive and machine, each high-density connector is typically connected by a short cable to a terminal block.





These cables consists of a 24-pin I/O connector , a cable, and a 25-pin D-type terminal block connector. (Cables are documented in Chapter 10.) Available cables are: „ IC693CBL311 (10 feet/3 meters) „ IC693CBL319 (3 feet/1 meter) „ IC693CBL317 (10 feet/3 meters) with an 8” external shield pigtail „ C693CBL320 (3 feet/1 meter) with an 8” external shield pigtail For building custom-length cables, the 24-pin I/O cable connector is available in three different kits (solder eyelet receptacle, crimp wire receptacle, and IDC (ribbon) receptacle). The terminal block is Weidmuller RD25 910648 or equivalent (must be compatible with the I/O cable IC693CBL311/319/317/320 - see Chapter 10 for details).





See the following manuals for detailed information on Power Mate APM Modules: „ GFK-0840 Motion Mate APM for Series 90-30 PLC Standard Mode User’s Manual „ GFK-0781 Motion Mate APM for Series 90-30 PLC Follower Mode User’s Manual „ GFK-0664 Series 90 PLC APM Programmer’s Manual
