Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Modenl Number: | MBDLT25SF |
|---|---|---|---|
| Country Of Origin: | Japan | Frequency Response: | 3.2 KHz |
| Supply Voltage: | Single/3-phase 200 V | Power: | 400W |
| Voltage Supply: | 200VAC | Type: | Industrial Servo Drives |
| Highlight: | electric servo drive,ac servo drive |
||

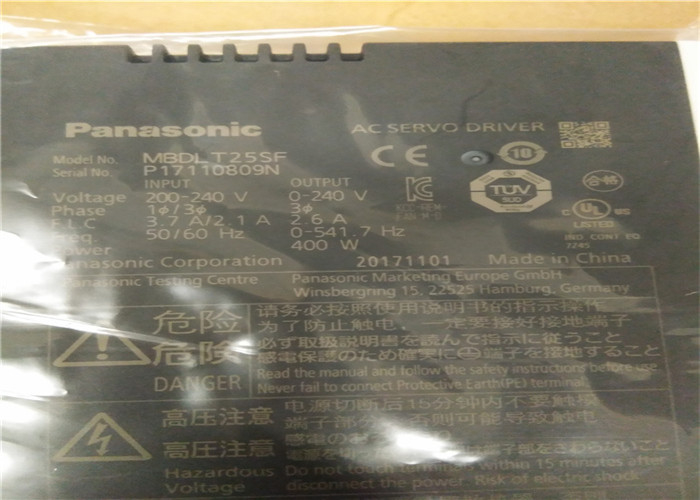

Industrial Servo Drives Panasonic MBDLT25SF 3-phase 200 V 3.2 kHz
Detailed Product Description
Manufacturer : Panasonic
Model : MBDLT25SF
Frame : MBD = B-frame
Series : L = A6 series
Safety function : T = Safety torque off
Max. current rating of amp : 2 = 12 A
Power supply : 5 = Single/3-phase, 200 V
Interface specifications : S = Analog/Pulse
Rotary specifications : F = Multi-function type
Dimensions, approx : 5.5cm x 15cm x 15cm
Quick Detail
Specifications
| Item | Specifications |
|---|---|
| Part Number | MBDLT25SF |
| Details | A6SF series Multifunction type (Pulse analog full-closed) with the safety function |
| Family Name | MINAS A6 |
| Series | A6SF series |
| Type | Multifunction type |
| Frame | B-Frame |
| Frequency response | 3.2 kHz |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | With the safety function |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog /Pulse, Modbus (RS485 /RS232) |
| Dimensions (W) (Unit: mm) | 55 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 130 |
| Mass (kg) | 1.0 |
| Environment | For more details, please refer to the instruction manual. |
The following are some of the drive models, both new and used are stocked:
| MSDA3A3A1A | MSDA5A3A1A | MSDA013A1A |
| MSDA023A1A | MSDA043A1A | MSDA083A1A |
| MDDA103A1A | MDDA153A1A | MDDA203A1A |
| MDDA253A1A | MDDA303A1A | MDDA353A1A |
| MSDA403A1A | MSDA503A1A | MSD023A1XXV |
| MSDA083A1XXV | MSD043A1X | MSDA043D1A |
| MQDA043A1A | MUDS043A1A | MUDS023A1A |
| MUDS083A1A | MUMS082A1E0S | MUDS083A1M |
| MUMA012P1T | MUMA022P1T | MUMA042P1T |
| MUMA042P1S | MUMA012P1S | MUMA022P1S |
| MUMS082P1S | MSDA043A1XXV | MSDA013A1XXV |
| MKDET1505P | MLDET2310P | MUMA082P1T |
| MLDET2510P | MKDET1310P | MUMS042A1AOS |
| MSM041A211 | MQMA042A1E | MSMA022P1A |
| MSM042P1B | MSM042AJB | MSM011P1N |
| MQMA022S2P | MSM012AJA | MSM012P1F |
| MDMA152S1C | MSM042AJA | MQMA012C2P |
| MSMA022A1B | MSM021DJE | MSD043A1X |
| MSD043A1XX | MSM042A1A | MSM5AZA1B |
| MUMS012C2U1S | MUMS012A1F0S | MSMZ082A1B |
| MSD013A1XX | MSM012A1A | MSMA012C1A |
| MSDA013D1A | MSMA5AZS1A | MQMA012P1B |
| MSMD042P1T | MUMS022A1B0S | MFM082A1C |
| MQMA042A1E | MSMA022C1A | MSMA022C1E |
