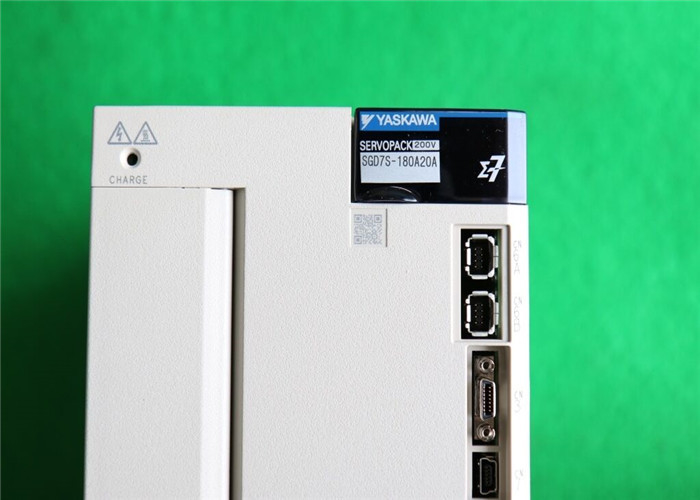

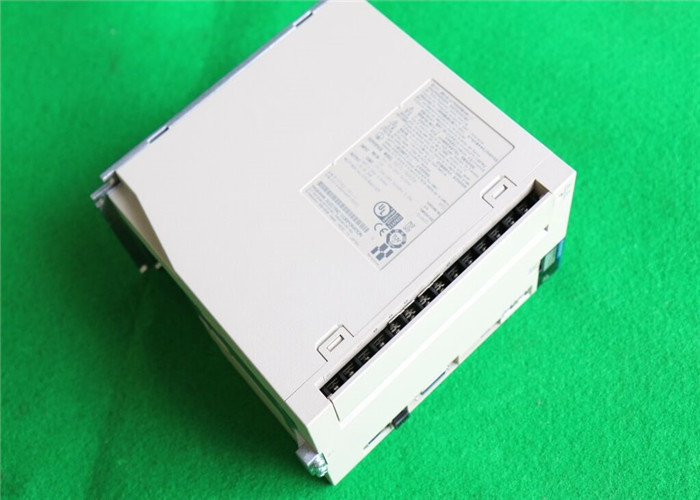

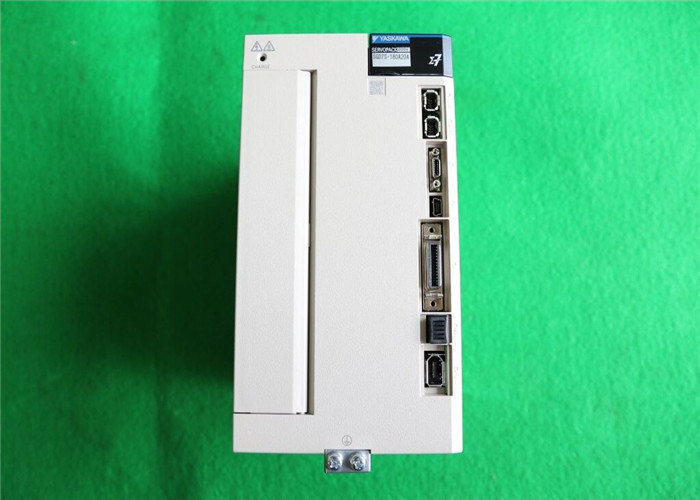

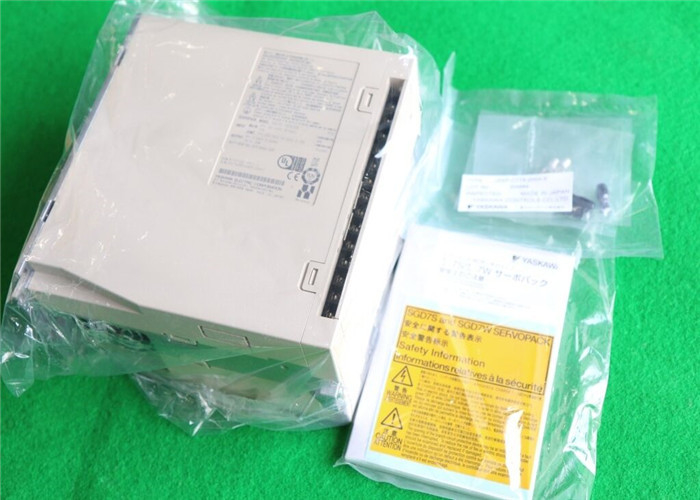

1PCS Industrial Electric YASKAWA New Servopack SGD7S Series SGD7S-180A20A 2KW

Specifications

Servo motor SGMGH type.
Rated speed: 1500r/min.
Power: 0.45kw.
Power supply voltage: three phase AC200V.
Serial encoder: 17 bit absolute value.
Design sequence: A.
Shaft end: straight shaft with screw key.
Optional parts: no brake oil seal.
High speed feed series: high speed running when no load.
Complete separation of the main circuit and the control circuit,
Alarm can only turn off the main circuit power supply, easy to maintain SGD7S-180A20A
Parameter setting device.
The parameters can be directly entered by the servo drive body.
Saving wiring.
Using a serial encoder, encoder wiring number than the original product reduced by 1/2.
Multi in one control: the use of the parameters of the switch can not use the torque, position, speed controlSigma -V series servo motor SGMGV SGD7S-180A20A.
Rated output: 11kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with oil seal.
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake) SGD7S-180A20A.
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool.
Transport machinery.
Handling machinery.
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotationSGM7P type (rated speed: 3000r/min) of inertia and flat servo motor with speed reducer.
Rated output: 0.2kw.
Power supply voltage: AC200V.
Serial encoder: 24 bit delta.
Design sequence: IP55.
Type of speed reducer: precision HDS planetary reducer.
Reduction ratio: 1/5.
Shaft end: flange output.
