Schneider 140CPU53414A Electronic Interface Module Processor / Controller

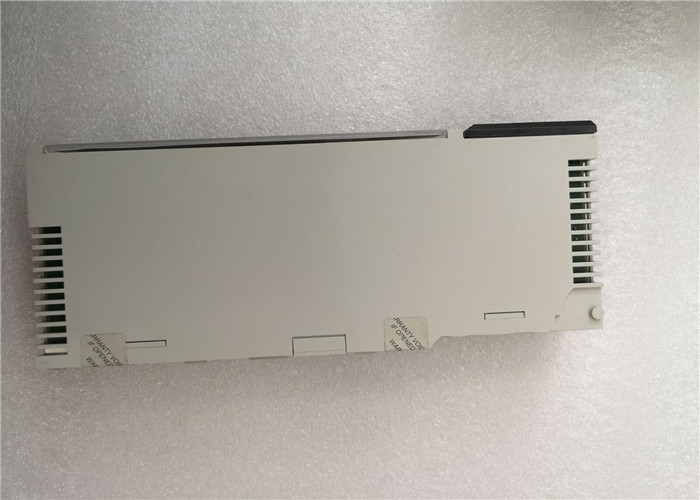

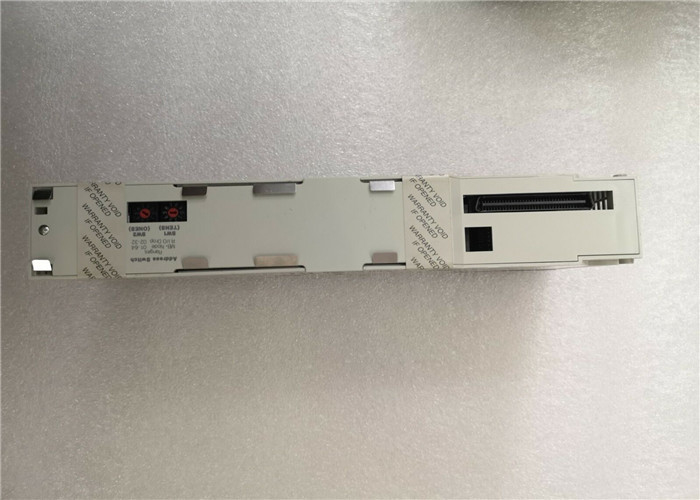

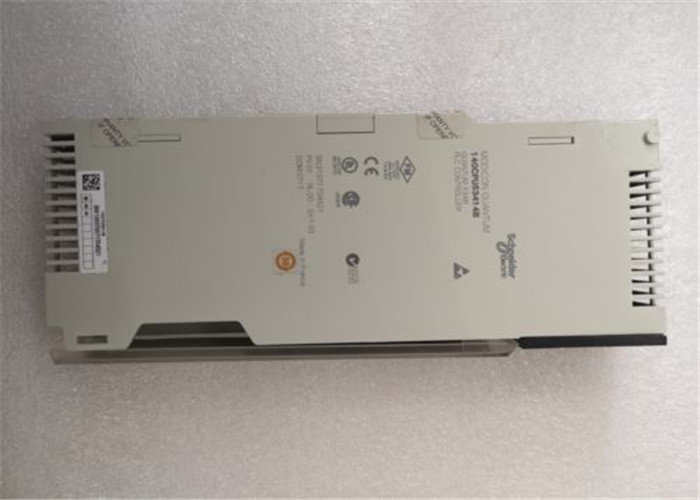

Large Image :  Schneider 140CPU53414A Electronic Interface Module Processor / Controller

Product Details:

Place of Origin: FR
Brand Name: Schneider
Model Number: 140CPU53414A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: New in original box
Delivery Time: 2-3 work days
Payment Terms: T/T, Western Union
Supply Ability: 100
Detailed Product Description
Brand: Schneider Model: 140CPU53414A
Palce Of Origin: FR Type: Quantum I/O
Series: 140CPU Module Format: Standard
Clock Frequency: 100 MHz Weight: 0.85KG
High Light:

analog interface module


diode redundancy module

Redundant Power Supply Module Schneider 140CPU53414A Processor/Controller





Manufacturer Schneider Electric
Series Modicon Quantum
Warranty 2 year
Execution time for 1 K instruction 2.49 65 % Boolean and 35 % numerical
1.86 100 % Boolean
Product or component Processor
Software name Concept
ProWORX 32
Processor name 80486
Mathematical coprocessor With
Clock frequency 100 MHz
Memory description Internal RAM 2972 kB
Exact time for 1 Kinstruction 0.1...0.5 ms LL984
Watchdog timer 250 ms
Clock drift +/-8 s/day at 0...60 °C
I/O words 64 I/64 O remote
64 I/64 O max local
30 I/32 O distributed
I/O words/network 500 I/500 O distributed
Drops/Network 63 distributed
Number of drops 31 remote
Number of network 3 distributed
2 remote
Battery type Lithium 10 µA 420 µA
Battery capacity 1.2 AH
Battery life 10 yr
Switch function Key switch
Marking CE
Bus current requirement 1250 mA



– The 140CPU53414B is functionally identical to the non-B version, however the following must be considered:
– If you are using the CPU in a hot standby system, you must use either two non-A versions, two A versions, or two B versions. – The B version required a new flash exec.
– The B version, A version, and non-A flash execs are not interchangeable.
– Schneider software (Concept, ProWorx, and Modsoft) supports the B version.


The 140CPU53414B is a Modicon Quantum processor for use with ProWorx 32 or Concept software. It includes a mathematical coprocessor and an internal memory of 2972 kB RAM. This unit is functionally identical to the non-B version, with some considerations. If you are using the CPU in a Hot Standby setup, you must use with two non-A, two A, or two B versions. The B version also requires a new flash exec, which is not interchangeable with the A and non-A flash executives.



The front panel has a slide switch which is used to select the comm parameter settings for the Modbus RS232 ports on the 140CPU53414B. There are three options, the top is for ASCII functionality, the middle is for RTU functionality, and the bottom allows you to assign comm parameters to the port. The CPU hardware defaults to bridge mode when the switch is set to RTU or ASCII mode.



Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140CPU53414B, take a look at more from our Modicon Quantum line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

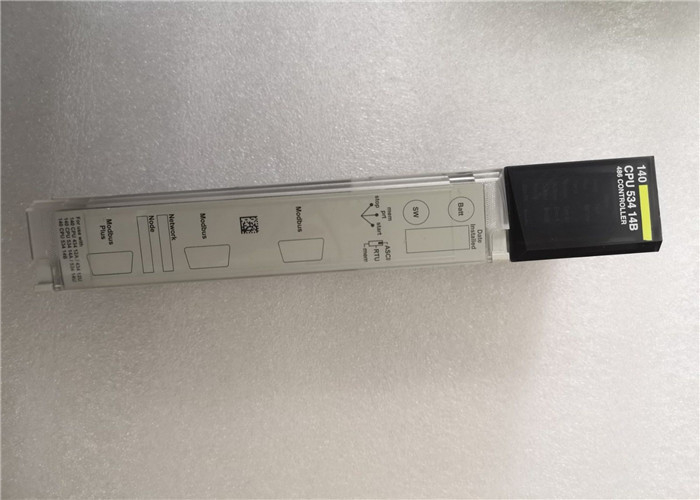

The following illustration shows the 140 CPU 434 12A module and its components. The following illustration shows the 140 CPU 434 12A module and its components. The 140 CPU 534 14A and 140 CPU 534 14B modules have the same components. Modbus Comm 1 Network Node Customer Identification Label(Fold label and place it insidedoor) Part #31002249 Removable door Part #043513804 Model Number Module Description Color Code Battery Key Switch Modbus Connector 140CPU 434 12A 486 CONTROLLER Modbus Connector Modbus Plus Connector Modbus Comm 2 Modbus Plus Slide Switch ASCIIRTU mem XLEDSW stop mem prt start ModbusPlus. For use with140 CPU 434 12A140 CPU 534 14A.
