Product Details:
Payment & Shipping Terms:
|

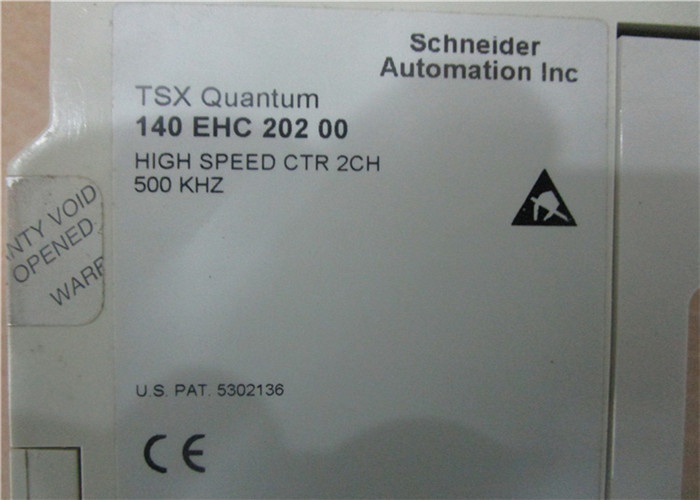

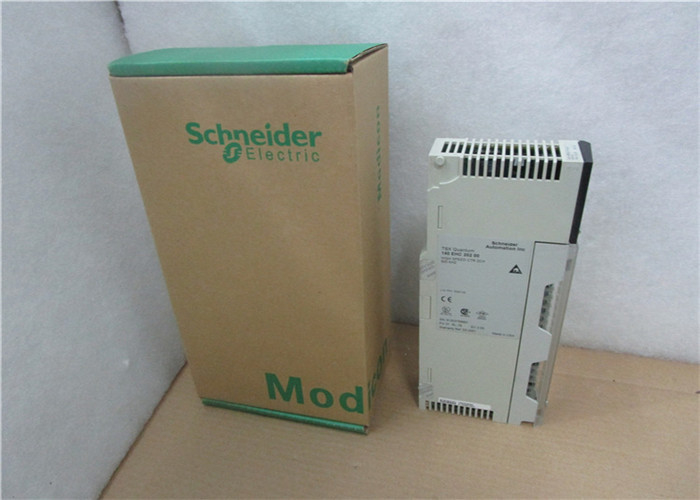

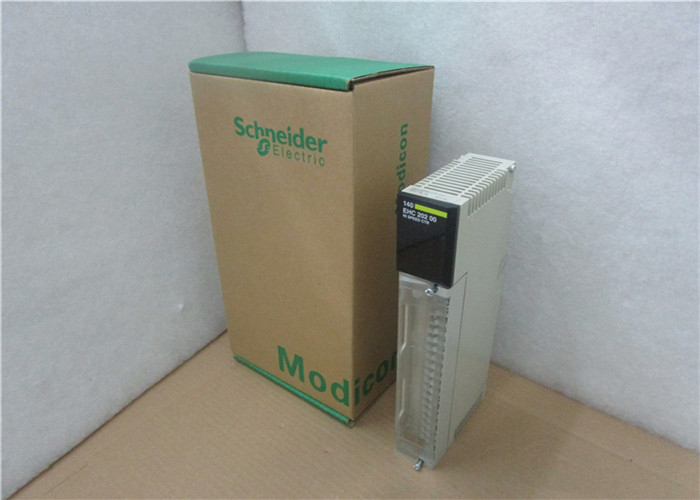

| Range Of Product: | Modicon Quantum Automation Platform | Country Of Origin: | France |
|---|---|---|---|
| Brand: | Schneider | PN: | 140EHC20200 |
| Condition: | Brand New | Type: | QUANTUM PROCESSOR |
| MOQ: | 1 PIECE | Warranty: | 1 Year |
| High Light: | modicon quantum processor,quantum unity processor |
||
| range of product |
Modicon Quantum automation platform
|
|
|---|---|---|
| product or component type |
High-speed counter module
|
|
| number of channels |
2
|
| addressing requirement |
6 output words
6 input words |
|
|---|---|---|
| data format |
2147483647 dec 32 bits
65535 dec 16 bits |
|
| counting input type |
Incremental or quadrature
|
|
| counting frequency |
500000 Hz
|
|
| discrete input voltage |
< 30 V
|
|
| operating mode |
Incremental or quadrature discrete input
|
|
| input resistance |
10 kOhm discrete input
|
|
| operating threshold |
0...11 V single ended mode 24 V DC at state off
0...2 V single ended mode 5 V DC at state on 0 V single ended mode 12 V DC at state on 13...24 V single ended mode 24 V DC at state on 2...7 V single ended mode 12 V DC at state off >= 1.8 V differential mode 3.5...5 V single ended mode 5 V DC at state off |
|
| discrete output number |
4
|
|
| discrete output type |
Field Effect Transistor (FET)
|
|
| discrete output voltage |
0 V switch off DC
0.4 V switch on DC |
|
| load current |
0.5 A
|
|
| maximum leakage current |
0.4 mA state off
|
|
| maximum voltage drop |
<0.4 V state on
|
|
| protection type |
36 V transorb for discrete output
|
|
| isolation between channels and bus |
1780 Vrms for 60 s
|
|
| fault type |
Loss of output field power
|
|
| output short-circuit protection |
Blown fuse 2.5 A
|
|
| power dissipation |
4 + (0.4 x total module load current)
|
|
| bus current requirement |
650 mA
|
|
| external power requirement |
19.2...30 V
|
|
| rack type |
Local
Remote Distributed |
|
| local signalling |
2 LEDschannel status:
|
|
| marking |
CE
|
|
| current consumption |
<= 1050 mA at 24 V DC external power supply
|
|
| module format |
Standard
|
| resistance to electrostatic discharge |
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2 |
|
|---|---|---|
| resistance to electromagnetic fields |
10 V/m 80…1000 MHz conforming to IEC 801-3
|
|
| ambient air temperature for operation |
0…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
95 % without condensation
|
|
| operating altitude |
<= 5000 m
|
|
| standards |
UL 508
|
|
| product certifications |
C-Tick.1
CSA No 142 FM Class 1 Division 2 UL |
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
