Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Quantum Automation Platform | Country Of Origin: | France |
|---|---|---|---|

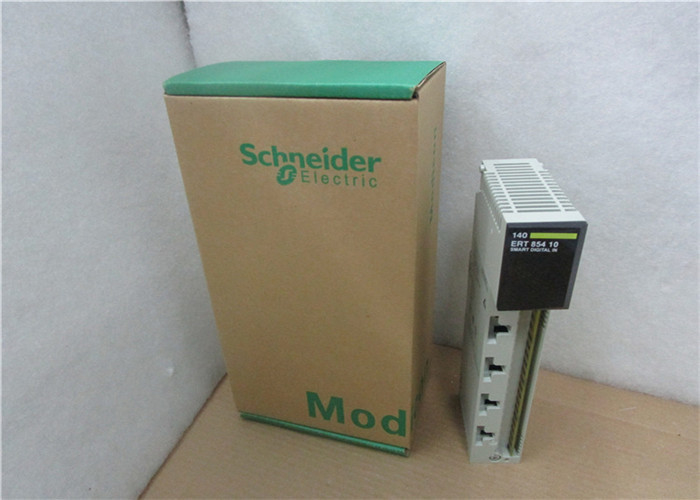

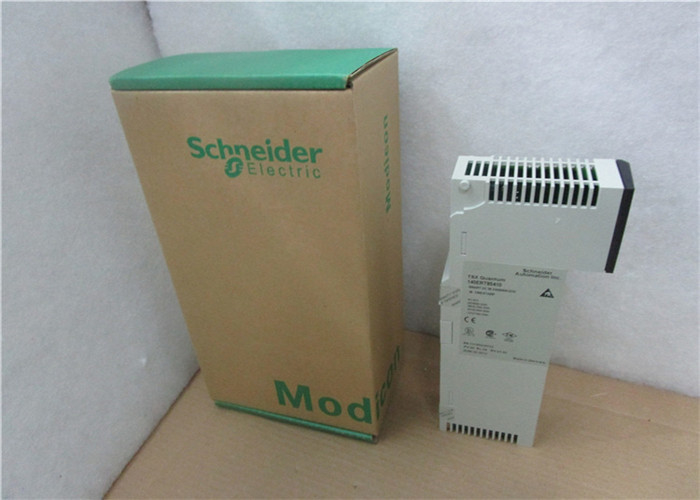

| Brand: | Schneider | PN: | 140ERT85410 |
| Condition: | Brand New | Type: | QUANTUM PROCESSOR |
| Warranty: | 1 Year | ||
| Highlight: | modicon quantum processor,quantum unity processor |
||
| range of product |
Modicon Quantum automation platform
|
|
|---|---|---|
| product or component type |
Multifunction input module
|
|
| number of terminals |
40
|
| function of module |
Status logging counting 500 Hz
Status monitoring on discrete inputs Time and date stamped event logging |
|
|---|---|---|
| time synchronisation protocol |
DCF77
|
|
| product compatibility |
Concept
Unity Pro |
|
| group of channels |
2 groups of 16 inputs process input
|
|
| discrete input number |
1 24 V clock signal input
32 24...125 V process input |
|
| switching voltage |
125 V 1 mA process input
24 V 6 mA process input 48 V 2.5 mA process input 60 V 2.5 mA process input |
|
| maximum power consumption in W |
7.5 W process input
|
|
| insulation |
By optocoupler clock signal input
|
|
| insulation between group of channels |
By optocoupler
|
|
| anti bounce filtering |
Configurable from 0 to 255 ms
|
|
| input state |
Inversion configurable
|
|
| acquisition time |
1 ms clock signal input
|
|
| input current |
5 mA clock signal input
|
|
| electrical connection |
Cable - shielded cable <1968.50 ft (600 m) process input
Cable - unshielded cable <1312.34 ft (400 m) process input |
|
| connections - terminals |
Screw terminal block
|
|
| local signalling |
Communication on the bus (Active) 1 LED green)
Self test OK, module ready (R) 1 LED green) Fault (F) 1 LED red) Status of inputs (1 to 32) 32 LEDs |
|
| current consumption |
0.07 mA 24 V DC 140XCP90000 module
3 mA 24...125 V DC external power supply per group of channel 300 mA 5 V DC bus |
|
| module format |
Standard
|
|
| net weight |
0.99 lb(US) (0.45 kg)
|
| resistance to electrostatic discharge |
4 kV contact IEC 801-2
8 kV on air IEC 801-2 |
|
|---|---|---|
| resistance to electromagnetic fields |
9.14 V/m (10 V/m) 80...2000 MHz IEC 801-3
|
|
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
| ambient air temperature for storage |
-40…185 °F (-40…85 °C)
|
|
| relative humidity |
95 % without condensation
|
|
| operating altitude |
<= 16404.2 ft (5000 m)
|
|
| protective treatment |
TC
|
|
| standards |
HazLoc
UL 508 |
|
| product certifications |
CSA Class 1 Division 2
UL LR C-Tick GOST Merchant Navy |
| Category |
18155-QUANTUM I/O & POWER SUPPLIES
|
|
|---|---|---|
| Discount Schedule |
PC21
|
|
| GTIN |
00785901706199
|
|
| Package weight(Lbs) |
1.07 lb(US) (0.485 kg)
|
|
| Returnability |
No
|
|
| Country of origin |
FR
|
