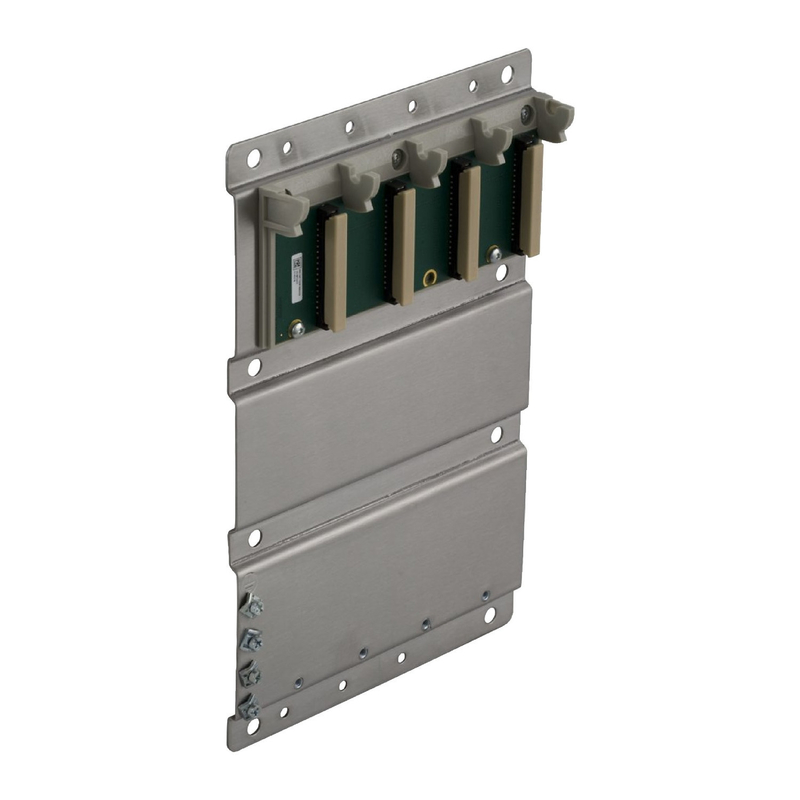

Schneider Electric 140XBP00400 Quantum backplane 4 slots New Original

Similar Model Products

(1) CPUs updated with the Unity Pro firmware.
(2) The addition of a complete Ethernet RIO drop function is available for these CPUs with
Unity Pro u V7.0.

ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.

1  Primary ring, copper/fiber optic medium

3  Ethernet head adaptor 140NOA61100 installed in the Quantum™ rack.

4  ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5  ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6  ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7  Modicon™ STB Ethernet DIO (3) (4)

8  Connection to Ethernet DIO device cloud, copper medium only

9  Ethernet DIO device cloud (3)

10  Ethernet communication module 140CPU31110

11  Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
