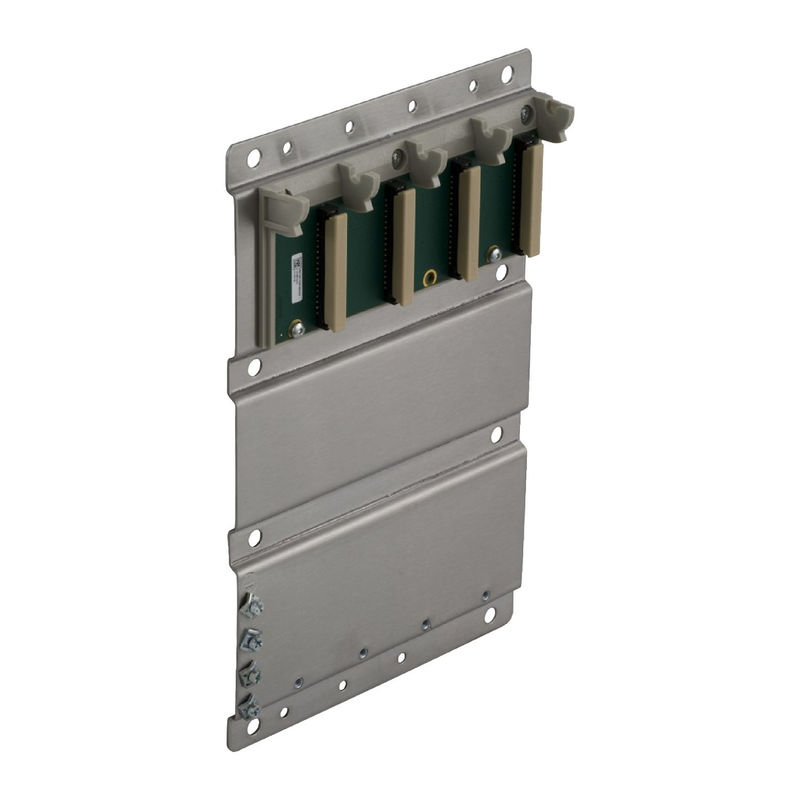

140XBP00400 Schneider Electric Quantum backplane 4 slots New Original
140XBP00400 Main
| range of product |
Modicon Quantum automation platform
|
|
| product or component type |
Racks backplanes
|
|
| product specific application |
For distributed I/O modules
For local I/O modules
For remote I/O modules
|
|
140XBP00400 Complementary
| free slots |
4
|
|
| mounting support |
Mounting plate
|
|
| fixing mode |
By screw
|
|
| net weight |
0.45 kg
|
|
140XBP00400 Offer Sustainability
| Sustainable offer status |
Green Premium product
|
|
| REACh Regulation |
REACh Declaration
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
Yes
|
|
| China RoHS Regulation |
China RoHS declaration
|
|
| Environmental Disclosure |
Product Environmental Profile
|
|
| Circularity Profile |
End of Life Information
|
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
