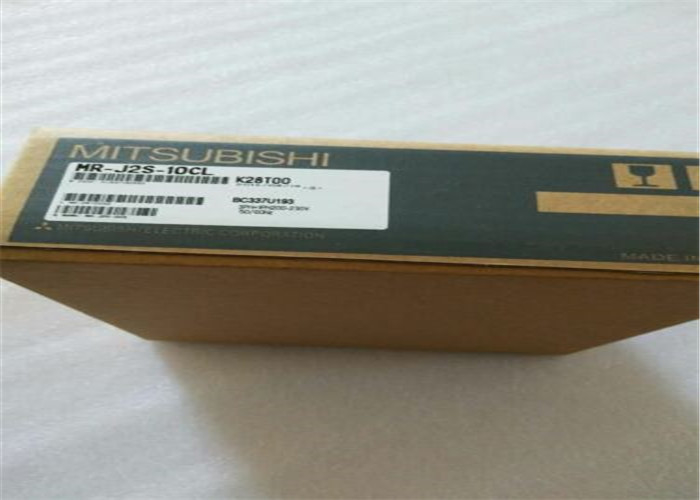

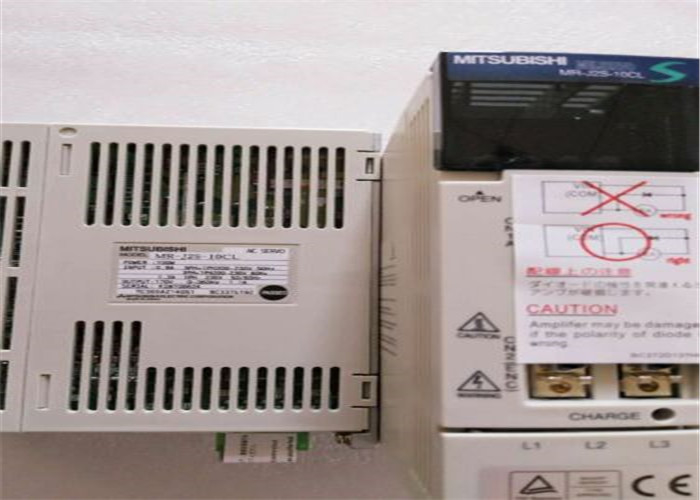

MR-J2S-10CL Mitsubishi Industrial Servo Drives AC Servo Amplifier 250AC 100W 200V

: Large Image : MR-J2S-10CL Mitsubishi Industrial Servo Drives AC Servo Amplifier 250AC 100W 200V

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	MR-J2S-10CL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact us
Packaging Details:	New Original Box
Delivery Time:	3-5 work days
Payment Terms:	T/T / Paypal
Supply Ability:	50

Contact Now

Detailed Product Description

Model 1:	MR-J2S-20CL	Model 2:	MR-J2S-10CL
Model 3:	MR-J2S-40CL	Brand:	Mitsubishi
Power:	100W	Type:	AC Servo
Highlight:	electric servo drive , ac servo pack

MR-J2S-10CL Mitsubishi Industrial Servo Drives AC Servo Amplifier 250AC 100W 200V

Description

Manufacturer: Mitsubishi Electric
MR-J2S-10CL
Servo amplifier : MR-J2S-10CL (1)
No-fuse breaker : 30 frame 5A
Class : K5
Current [A] : 10
Voltage [V] : 250AC
Magnetic contactor : S-N10
Recommended filter: Model: SF1252
Leakage current [mA] : 38
Mass [kg]([lb]) : 0.75 (1.65)
Shipping Weight : 2 Kg

1. WHAT ARE EC DIRECTIVES?

The EC directives were issued to standardize the regulations of the EU countries and ensure smooth

distribution of safety-guaranteed products. In the EU countries, the machinery directive (effective in

January, 1995), EMC directive (effective in January, 1996) and low voltage directive (effective in January,

1997) of the EC directives require that products to be sold should meet their fundamental safety requirements and carry the CE marks (CE marking). CE marking applies to machines and equipment

into which servo amplifiers have been installed.

(1) EMC directive

The EMC directive applies not to the servo units alone but to servo-incorporated machines and equipment. This requires the EMC filters to be used with the servo-incorporated machines and equipment to comply with the EMC directive. For sp ecific EMC directive conforming methods, refer to

the EMC Installation Guidelines (IB(NA)67310).

(2) Low voltage directive

The low voltage directive applies also to servo units alone. Hence, they are designed to comply with

the low voltage directive. This servo is certified by TUV, third-party assessment organization, to comply with the low voltage directive.

(3) Machine directive

Not being machines, the servo amplifiers need not comply with this directive.

2. PRECAUTIONS FOR COMPLIANCE

(1) Servo amplifiers and servo motors used

Use the servo amplifiers and servo motors which comply with the standard model.

Servo amplifier series :

MR-J2S-10CL to MR-J2S-700CL

MR-J2S-10CL1 to MR-J2S40CL1

Servo motor series :

HC-KFS

HC-MFS

HC-SFS

HC-RFS

HC-UFS

HA-LFS

(2) Configuration

(3) Environment

Operate the servo amplifier at or above the contamination level 2 set forth in IEC60664-1. For this purpose, install the servo amplifier in a control box which is protected against water, oil, carbon, dust, dirt, etc.

(4) Power supply

(a) Operate the servo amplifier to meet the requirements of the overvoltage category II set forth in IEC60664-1. For this purpose, a reinforced insulating transformer conforming to the IEC or EN Standard should be used in the power input section.

(b) When supplying interface power from external, use a 24VDC power supply which has been insulation-reinforced in I/O.

(5) Grounding

(a) To prevent an electric shock, always connect the protective earth (PE) terminals (marked) of the servo amplifier to the protective earth (PE) of the control box.

(b) Do not connect two ground cables to the same protective earth (PE) terminal (marked). Always connect the cables to the terminals one-to-one.

Capacitor discharge time

The capacitor discharge time is as listed below. To ensure safety, do not touch the charging section for

15 minutes after power-off.

Servo amplifier	Discharge time [min]
MR-J2S-10CL(1) MR-J2S-20CL(1)	1
MR-J2S-40CL(1) MR-J2S-60CL	2
MR-J2S-70CL to MR-J2S-350CL	3
MR-J2S-500CL MR-J2S-700CL	5

V.Packaging & Delivery

Packaging Details
Cartons

Delivery Time
Whithin 3-5 days
