Product Details:
Payment & Shipping Terms:
|
| Range Of Product: | Modicon Premium | Country Of Origin: | France |
|---|---|---|---|
| Brand: | Schneider | PN: | TSXAEY810 |
| Number Of Channels: | 8 | Net Weight: | 0.33 Kg |
| Highlight: | modicon quantum processor,modicon quantum cpu |
||

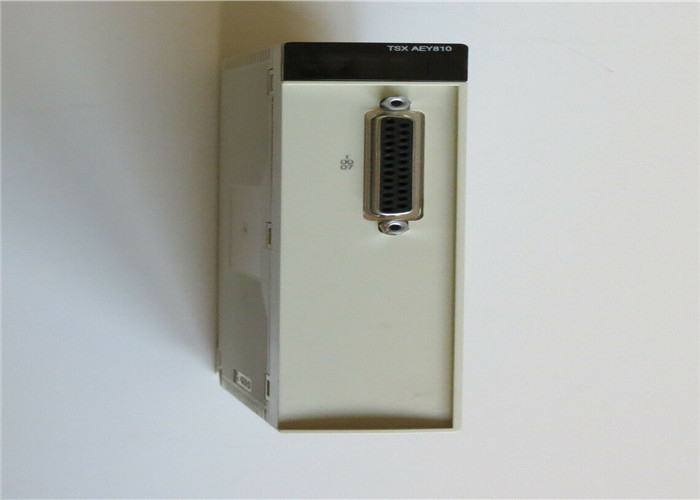

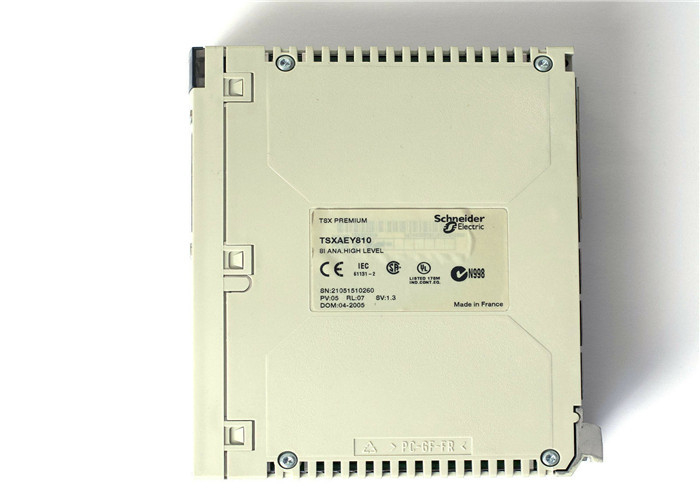

Schneider Electric TSXAEY810 Isolated analog input module 8 I multirange
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
Analog input module
|
|
| input level |
Low level
|
|
| analogue input number |
8
|
|
| analogue input type |
Current 0...20 mA
Current 4...20 mA Voltage +/- 10 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
|
| analog/digital conversion |
16 bits
|
| nominal read cycle time |
29.7 ms
|
|
|---|---|---|
| fast read cycle time |
3.3 ms + 3.3 ms x number of channels used
|
|
| measurement error |
0.12 % of full scale 0...20 mA 0...60 °C
0.12 % of full scale 4...20 mA 0...60 °C 0.13 % of full scale 0...5 V 25 °C 0.13 % of full scale 1...5 V 25 °C 0.142 % of full scale 0...20 mA 25 °C 0.142 % of full scale 4...20 mA 25 °C 0.191 % of full scale 0...5 V 0...60 °C 0.191 % of full scale 1...5 V 0...60 °C 0.244 % of full scale +/- 10 V 25 °C 0.244 % of full scale 0...10 V 25 °C 0.305 % of full scale +/- 10 V 0...60 °C 0.305 % of full scale 0...10 V 0...60 °C |
|
| isolation between channels and bus |
1000 Vrms
|
|
| isolation between channels and ground |
1000 Vrms
|
|
| isolation between channels |
+/- 200 V
|
|
| common mode between channels |
+/- 200
|
|
| input overvoltage protection |
-15…15 V at state 0 250 Ohm
-30…30 V at state 1 250 Ohm |
|
| electrical connection |
1 connector SUB-D 25
|
|
| overcurrent |
-30…30 mA at state 1 250 kOhm
|
|
| marking |
CE
|
|
| current consumption |
475 mA at 5 V DC
|
|
| module format |
Standard
|
|
| net weight |
0.33 kg
|
| standards |
IEC 1131
|
|
|---|---|---|
| product certifications |
ABS
RINA LR BV DNV GL RMRS |
|
| ambient air temperature for operation |
0…60 °C
|
|
| ambient air temperature for storage |
-25…70 °C
|
|
| relative humidity |
10…95 % without condensation for operation
5…95 % without condensation for storage |
|
| operating altitude |
0...2000 m
|
|
| protective treatment |
TC
|
|
| IP degree of protection |
IP20
|
|
| pollution degree |
2
|
| Warranty |
18 months
|
|---|
