Schneider Electric TSXAEY800 Analog input module with common point 8 I multirange

Superb delivery a great product, perfect communication as well !! A++++

—— Carlos

Great deal. Fast shipping and good service.Recommended !!!!!!!!!

—— Gita

I'm Online Chat Now

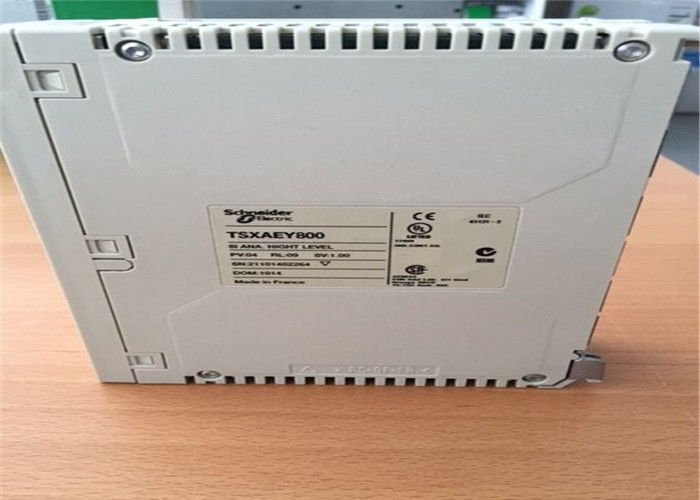

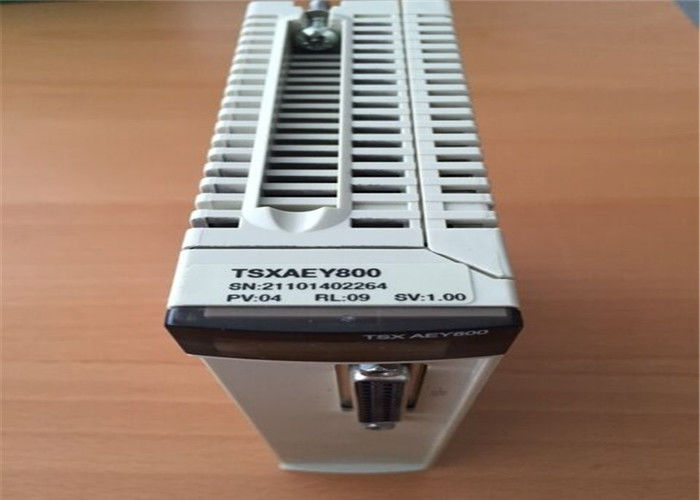

Schneider Electric TSXAEY800 Analog input module with common point 8 I multirange

Large Image :  Schneider Electric TSXAEY800 Analog input module with common point 8 I multirange

Product Details:

Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: TSXAEY800

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 1-1000USD/pc

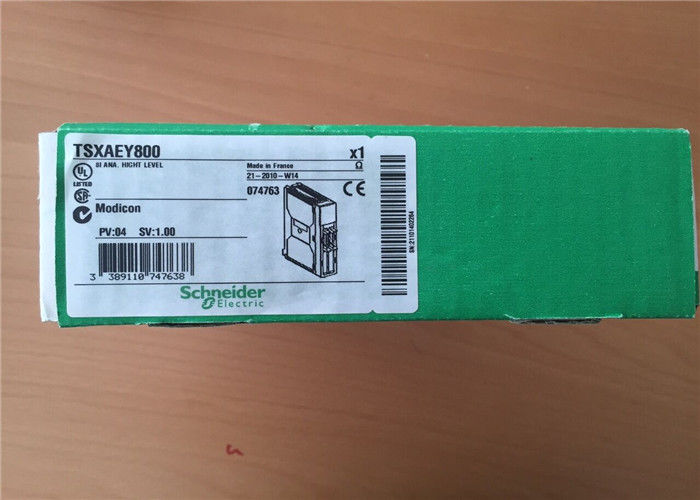

Packaging Details: new original package
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 pcs/month
Detailed Product Description
Range Of Product: Modicon Premium Country Of Origin: France
Brand: Schneider PN: TSXAEY800
Number Of Channels: 8 Net Weight: 0.31 Kg
Condition: New Original Deliber: 3days
High Light:

modicon quantum processor

,

modicon quantum cpu

Schneider Electric TSXAEY800 Analog input module with common point 8 I multirange



Main
range of product
Modicon Premium Automation platform

product or component type
Analog input module

input level
High level

analogue input number
8

analogue input type
Current 0...20 mA
Current 4...20 mA
Voltage +/- 10 V
Voltage 0...10 V
Voltage 0...5 V
Voltage 1...5 V

analog/digital conversion
12 bits

Complementary
nominal read cycle time
27 ms

fast read cycle time
3 ms + 3 ms x number of channels used

measurement error
0.15 % of full scale 0...5 V 25 °C
0.15 % of full scale 1...5 V 25 °C
0.19 % of full scale +/- 10 V 25 °C
0.19 % of full scale 0...10 V 25 °C
0.22 % of full scale +/- 10 V 0...60 °C
0.22 % of full scale 0...10 V 0...60 °C
0.22 % of full scale 0...5 V 0...60 °C
0.22 % of full scale 1...5 V 0...60 °C
0.25 % of full scale 0...20 mA 25 °C
0.25 % of full scale 4...20 mA 25 °C
0.41 % of full scale 0...20 mA 0...60 °C
0.41 % of full scale 4...20 mA 0...60 °C

isolation between channels and bus
1000 Vrms

isolation between channels and ground
1000 Vrms

isolation between channels
Common point

common mode between channels
None

input overvoltage protection
-15…15 V at state 0 250 Ohm
-30…30 V at state 1 250 Ohm

electrical connection
1 connector SUB-D 25

overcurrent
-30…30 mA at state 1 250 kOhm

marking
CE

current consumption
270 mA at 5 V DC

module format
Standard

net weight
0.31 kg

Environment
standards
IEC 1131

product certifications
DNV
RINA
GL
BV
LR
RMRS
ABS

ambient air temperature for operation
0…60 °C

ambient air temperature for storage
-25…70 °C

relative humidity
10…95 % without condensation for operation
5…95 % without condensation for storage

operating altitude
0...2000 m

protective treatment
TC

IP degree of protection
IP20

pollution degree
2

Contractual warranty
Warranty
18 months
