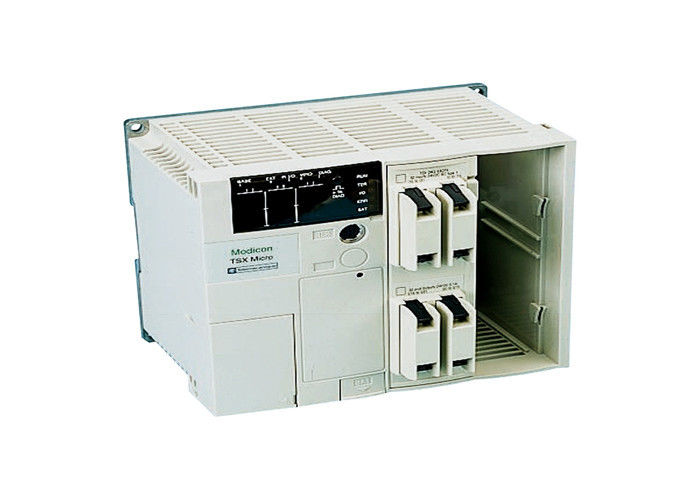

TSX3710164DTK1 Schneider Electric TSX Micro 37 10 PLC Configurations
Main
| range of product |
Modicon TSX Micro automation platform
|
|
| product or component type |
Modular base controller
|
|
| primary voltage |
24 V 19.2…30 V DC
|
|
| input current |
2 mA 60 A
|
|
| immunity to microbreaks |
10 ms
|
|
Complementary
| number of slots |
2
|
|
| module type |
HE10 connector discrete I/O
|
|
| discrete input number |
32 24 V DC
|
|
| discrete output number |
32 solid state
|
|
| integrated connection type |
1 serial link Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s
|
|
| realtime clock |
With
|
|
| memory description |
Internal RAM 14 Kwords data
Flash 15 Kwords data
|
|
| maximum size of object areas |
1 %MWi internal words
256 %Mi
128 %KWi constant words
|
|
| execution time per instruction |
0.25 µs Boolean without PCMCIA card
4.81 µs arithmetic REAL floating without PCMCIA card
|
|
| execution time for 1 Kinstruction |
3.03 100 % Boolean without PCMCIA card
0.25 65 % Boolean and 35 % numerical without PCMCIA card
|
|
| application structure |
1 master task
8 event tasks
1 fast task
|
|
| system overhead |
1.9 ms master task
|
|
| protection type |
Overload protection
Short-circuit
|
|
| total useful secondary power |
16 W
|
|
| electromagnetic compatibility |
Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3
Resistance to fast transient IEC 1000-4-4 level 3
Immunity to impulse waves IEC 1000-4-5
Damped oscillatory wave IEC 1000-4-12
Immunity to electromagnetic interference IEC 61131-2
|
|
Environment
| ambient air temperature for operation |
32…140 °F (0…60 °C)
|
|
| ambient air temperature for storage |
-13…158 °F (-25…70 °C)
|
|
| relative humidity |
10…95 % without condensation for operation
5…95 % without condensation for operation
|
|
| operating altitude |
0...6561.68 ft (0...2000 m)
|
|
| width |
11.13 in (282.7 mm)
|
|
| height |
5.94 in (151 mm)
|
|
| depth |
5.98 in (152 mm)
|
|
| net weight |
4.01 lb(US) (1.82 kg)
|
|
Ordering and shipping details
| Category |
22556-TSX MICRO, PL7 MICRO & ACCESS
|
|
| Discount Schedule |
PC14
|
|
| GTIN |
00785901766261
|
|
| Package weight(Lbs) |
3.95 lb(US) (1.792 kg)
|
|
| Returnability |
No
|
|
| Country of origin |
FR
|
|
Offer Sustainability
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
|
|
| REACh Regulation |
REACh Declaration
|
|
| EU RoHS Directive |
Not applicable, out of EU RoHS legal scope
|
|
| China RoHS Regulation |
China RoHS declaration
|
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
|
|
Contractual warranty
| Warranty |
12 months
|
