Product Details:
Payment & Shipping Terms:
|
| Stock: | Yes | Manufacturer: | Lenze |
|---|---|---|---|
| Item: | I550 | Shipping Term: | UPS/DHL/FEDEX/TNT |
| Payment Term: | Western Union/Paypal/TT | Lead Time: | 3-5 Days |
| Condition: | New | Phase: | 1 AC |
| Supply: | 230 V | Power Range: | 0.25 To 2.2 KW |
| High Light: | Lenze I550,Frequency Inverters Control Device |
||

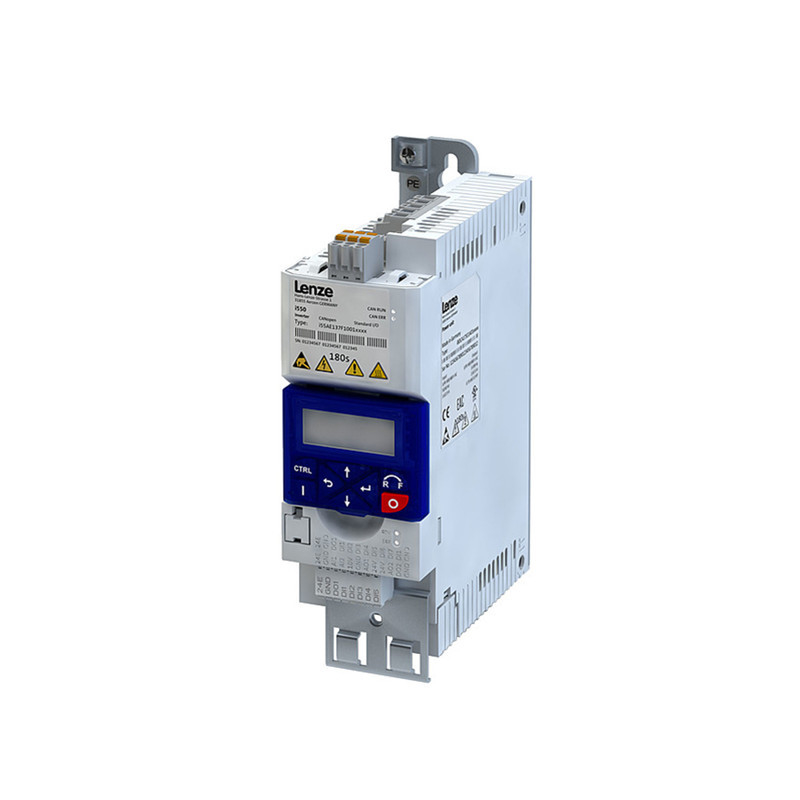

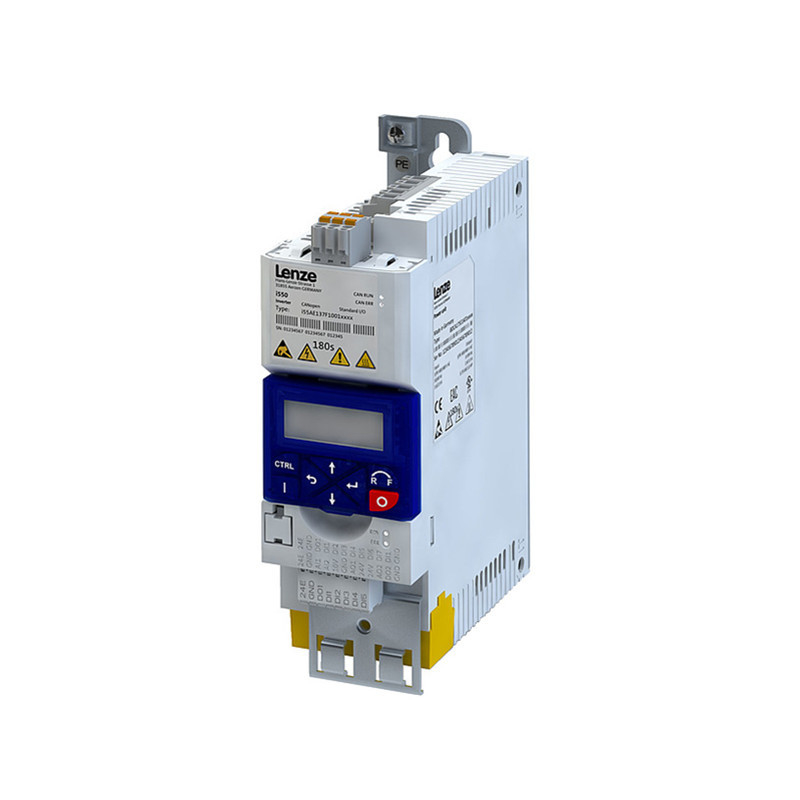

Lenze i550 frequency inverters Control cabinet installation new in stock
i550 frequency inverters
The frequency inverters of the i510 and i550 series support a power range from 0.25 to 132 kW. The basic i510 inverter covers a power range from 0.25 to 15 kW and the universally applicable i550 which enables communication via all common fieldbuses covers a power range from 0.25 to 132 kW.
Performance data:
| Mains: |
1 AC 230 V: 0.25 to 2.2 kW 1/3 AC 230 V: 0.25 to 5.5 kW 3 AC 400 V: 0.37 to 132 kW |
| Integrated functions: | V/f characteristic control linear/quadratic (VFC plus) Sensorless vector control (SLVC) Energy saving function (VFC-Eco) Servo control (SC-ASM) with feedback Sensorless vector control for synchronous motors (up to 22 kw) Vector control with feedback V/f characteristic control with feedback DC braking Brake management for low-wear brake control Dynamic braking through brake resistance S-ramps for smooth acceleration and delay Flying restart circuit, PID controller |
| Communication: | CANopen, EtherCAT, EtherNet/IP, I/O link, Modbus, PROFIBUS, PROFINET, ModbusTCP/IP, POWERLINK, IO-Link |
| Approvals: | CE, UL, CSA, EAC, RoHS2, IE2 in accordance with EN 50598-2 |
| Efficiency class: | Top efficiency class for inverters with IE2 in accordance with EN 50598-2 |
| Safety technology: | Safe torque off (STO) |
Both devices offer the following distinguishing features:
Slimline design from 60 mm x 130 mm: fits into every control cabinet
Scalable functionality thanks to their modular system
Exceptional user-friendliness
The modular system enables various product configurations depending on machine requirements. Extensions, such as a plug-on keypad or plug-on WLAN module, simplify commissioning and diagnostics. Thus, the parameters can be set conveniently via a smartphone app using the WLAN module.
This reliable drive is ideal for conveyor, travelling, and winding drives, for pumps and fans and many other machine tasks.
The inverter complies with the standard EN 50598-2 that will take effect from 2020.
All advantages of the frequency inverter i550 at a glance:
