Fisher AC DVC6200 Digital Valve Controller 4-20 MA DC -40 To 85C (-40 To 185F)

Name: Fisher AC DVC6200 Digital Valve Controller 4-20 MA DC -40 To 85C (-40 To 185F)
Brand: Shenzhen Wisdomlong Technology CO.,LTD
SKU: DVC6200
Price: 100000.00 USD
Availability: InStock

Product Details:

Place of Origin:	U.S.A
Brand Name:	Fisher
Certification:	CE
Model Number:	DVC6200

Detail Information

Place of Origin:

U.S.A

Brand Name:

Fisher

Certification:

Model Number:

DVC6200

Brand:

FISHER

Model:

DVC6200

Product Condition:

New With Factory Packaging

Voltage (DC):

12 - 30 V-DC

Shipping Weight:

6.55 Lbs

SKU:

D605489 (PHM)

Highlight:

High Light

Highlight:

20 MA Digital Valve Controller

10m3/hr Digital Valve Controller

Fisher DVC6200

Trading Information

Minimum Order Quantity:

Price:

negotiation

Packaging Details:

NEW AND ORIGINAL

Delivery Time:

3-5DAYS

Payment Terms:

L/C, T/T,/PAYPAL

Supply Ability:

100

Product Description

Fisher AC DVC6200 Digital Valve Controller with feedback 4-20 mA DC -40 to 85C (-40 to 185F)

DVC6200 Description

The Fisher AC DVC6200 is a digital valve controller, commonly known as a digital positioner. It is a highly advanced, microprocessor-based device designed to precisely control the opening and closing of industrial control valves (typically linear sliding-stem valves). Mounted directly on the valve actuator, the DVC6200 receives a standard 4-20 mA control signal from a process controller and delivers the necessary air pressure to the actuator to move the valve to the exact required position. As a key component of the Fisher FIELDVUE® portfolio, it provides critical data about the valve's health and performance, enabling predictive maintenance, improved control loop performance, and enhanced process reliability in various industrial applications.

DVC6200 Features

•
Digital Non-Contact Position Sensing: Uses advanced sensor technology for highly accurate and reliable valve position feedback without physical contact, eliminating mechanical wear.
•
Advanced Diagnostics and Monitoring: Continuously monitors valve performance, providing data on trends, stroking time, friction, and other key parameters to predict maintenance needs.
•
Partial Stroke Test (PST) Capability: Allows for automated safety valve testing to ensure valve functionality without a full process shutdown, which is critical for Safety Instrumented Systems (SIS).
•
HART® Communication Protocol: Enables two-way digital communication for easy configuration, calibration, and diagnostics using a HART communicator or asset management software.
•
Simple User Interface: Features an integrated three-button interface and a large, easy-to-read LCD for local configuration and display of valve position, pressure, and travel.
•
Robust Construction: Designed to withstand harsh industrial environments, including wide temperature ranges and significant vibration.
•
Auto-Stroke Calibration: The automatic setup feature (Auto Calibration) simplifies commissioning and ensures optimal performance.

DVC6200 Material & Applications

•
Material: The housing is typically constructed from a durable aluminum alloy with a corrosion-resistant coating. Internal components include a high-stability pressure sensor, a piezoelectric pilot valve, and a microprocessor board. The unit features robust environmental seals.
•
Applications: The DVC6200 is used for precise throttling control of industrial valves across a wide range of demanding industries.
- •
  Oil & Gas: Wellhead control, pipeline transmission, refining processes.
- •
  Chemical & Petrochemical: Reactor feed control, distillation columns, and other critical processes.
- •
  Power Generation: Feedwater control, steam turbine bypass, and other power plant applications.
- •
  Water & Wastewater: Flow control for treatment processes.

DVC6200 Product Important Parameters

The following table summarizes the key technical parameters of the Fisher AC DVC6200 digital valve controller.

Parameter	Specification
Product Name	Fisher AC DVC6200 Digital Valve Controller (Positioner)
Product Line	Fisher FIELDVUE®
Communication Protocol	HART® (4-20 mA + digital signal)
Supply Pressure Range	1.4 to 7.0 bar (20 to 100 psig) [Standard]
Output Pressure	Equal to supply pressure (single-acting); up to supply pressure for each output (double-acting)
Air Consumption	Very low (typically < 0.07 Nm³/h or 0.04 SCFM) when not stroking
Actuator Types	Single-Acting (Spring-Return), Double-Acting
Valve Travel Range	Configurable for various stroke lengths (e.g., 6 to 100 mm)
Enclosure Rating	Typically NEMA 4X (IP66) for protection against water and dust
Ambient Temperature Range	-40°C to +85°C (-40°F to +185°F)
Positioner Accuracy	High accuracy, typically better than ±1% of span (with characterized cam)
Key Feature	Partial Stroke Testing (PST), Advanced Valve Diagnostics, Auto Calibration

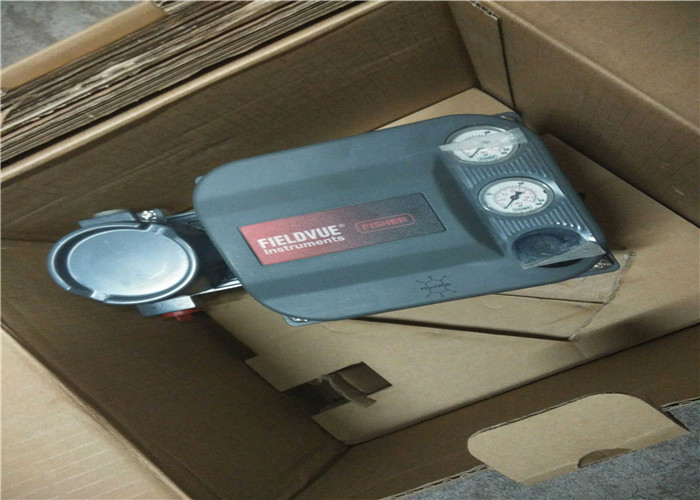

Fisher AC DVC6200 Digital Valve Controller 4-20 MA DC -40 To 85C (-40 To 185F) 1
