Product Details:
Payment & Shipping Terms:
|
| Brand: | Panasonic | Model Number: | MSMD012G1S |
|---|---|---|---|
| Country Of Origin: | Japan | Type: | Industrial Servo Motor |
| Delivery Time: | 2-3days | RATED REV: | 3000RPM |
| RATED Freq: | 200HZ | RATED Output: | 0.4KW |
| Input: | 106V 2.5A | ||
| Highlight: | 100W Industrial Servo Motor,MINAS A5 Industrial Servo MotorIndustrial Servo Motor,Panasonic MSMD012G1S |
||

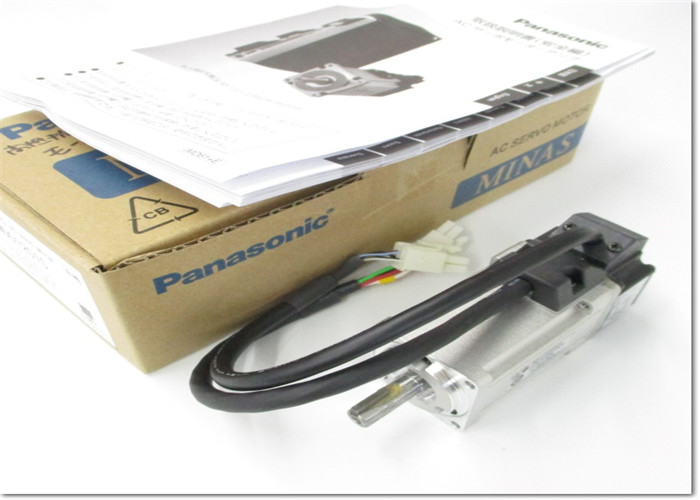

Panasonic MSMD012G1S Industrial Servo Motor MINAS A5 A4 Servo 100W
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMD012G1S |
| Details | Low inertia, Lead wire type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMD Series |
| Type | Low inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 38 mm sq. |
| Flange sq. dimension (Unit:mm) | 38 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 200 V |
| Rated output | 100 W |
| Rated current (A (rms)) | 1.1 |
| Holding brake | without |
| Mass (kg) | 0.47 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.32 |
| Momentary Max. peak torque (N ⋅ m) | 0.95 |
| Max. current (A (o-p)) | 4.7 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4281 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.051 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117.6 |
| During operation: Radial load P-direction (N) | 68.6 |
| During operation: Thrust load A, B-direction (N) | 58.8 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
The following are some of the drive models, both new and used are stocked:
| MSDA3A3A1A | MSDA5A3A1A | MSDA013A1A |
| MSDA023A1A | MSDA043A1A | MSDA083A1A |
| MDDA103A1A | MDDA153A1A | MDDA203A1A |
| MDDA253A1A | MDDA303A1A | MDDA353A1A |
| MSDA403A1A | MSDA503A1A | MSD023A1XXV |
| MSDA083A1XXV | MSD043A1X | MSDA043D1A |
| MQDA043A1A | MUDS043A1A | MUDS023A1A |
| MUDS083A1A | MUMS082A1E0S | MUDS083A1M |
| MUMA012P1T | MUMA022P1T | MUMA042P1T |
| MUMA042P1S | MUMA012P1S | MUMA022P1S |
| MUMS082P1S | MSDA043A1XXV | MSDA013A1XXV |
| MKDET1505P | MLDET2310P | MUMA082P1T |
| MLDET2510P | MKDET1310P | MUMS042A1AOS |
| MSM041A211 | MQMA042A1E | MSMA022P1A |
| MSM042P1B | MSM042AJB | MSM011P1N |
| MQMA022S2P | MSM012AJA | MSM012P1F |
| MDMA152S1C | MSM042AJA | MQMA012C2P |
| MSMA022A1B | MSM021DJE | MSD043A1X |
| MSD043A1XX | MSM042A1A | MSM5AZA1B |
| MUMS012C2U1S | MUMS012A1F0S | MSMZ082A1B |
| MSD013A1XX | MSM012A1A | MSMA012C1A |
| MSDA013D1A | MSMA5AZS1A | MQMA012P1B |
| MSMD042P1T | MUMS022A1B0S | MFM082A1C |
| MQMA042A1E | MSMA022C1A | MSMA022C1E |
