| Brand: | GE | Model: | IC693MDL940 |
|---|---|---|---|
| Origin: | USA | Series: | Series 90-30 |
| Product Type: | Relay Output Module | Voltage: | 120/240 Volts AC |
| Relay: | 2 Amps | Temperature: | 0-60 Degrees Celsius |
| Isolation: | 1500 Volts | Maximum Load: | 4 Amps Maximum |
| On/Off Response: | 15 Milliseconds | Initial Power Consumption: | 7 Milliamps |
| High Light: | 30VDC Programmable Logic Controller,150Hz Input Simulator Module,250Ohms Analog Current Input Module |
||

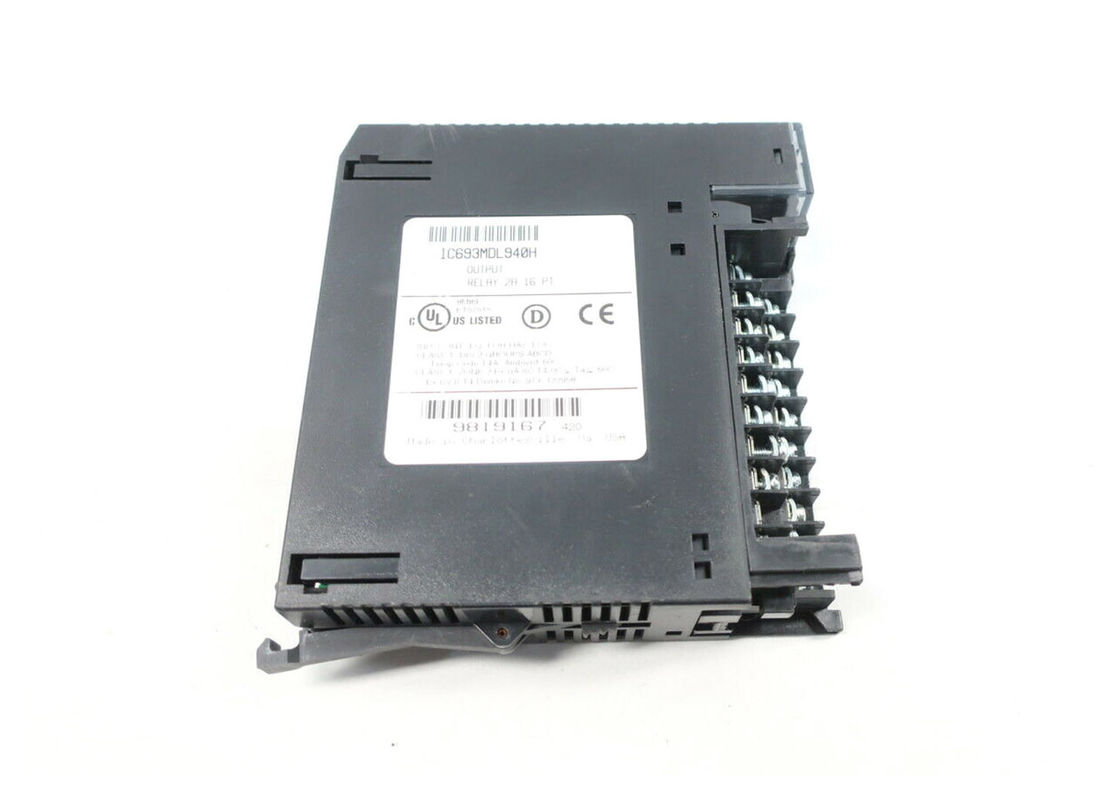

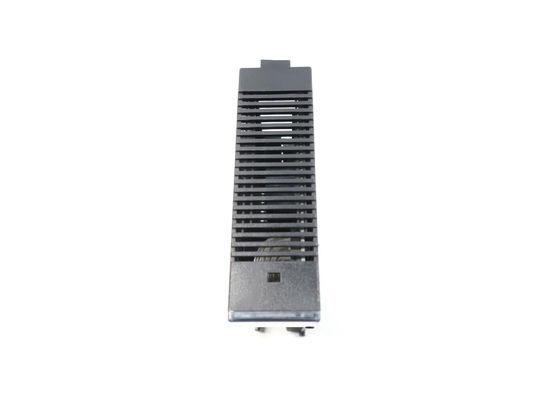

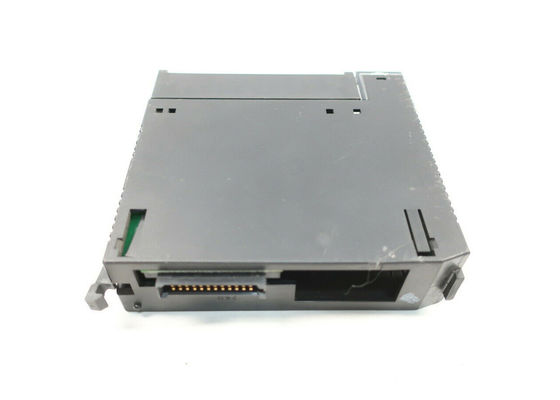

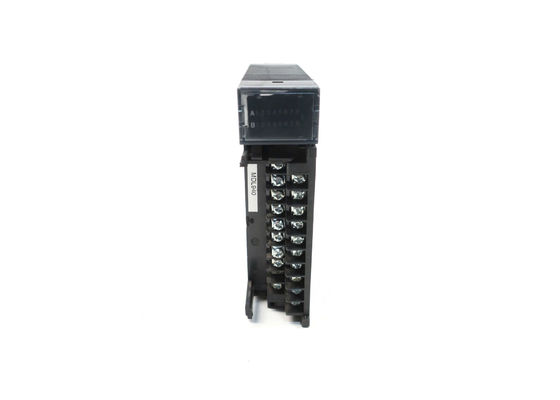

IC693MDL940 output module , voltage range of 5V to 30V DC , frequency range of 50Hz to 60Hz
| Rated Voltage | 24 volts DC, 120/240 VAC (nominal - see the following table for exceptions) |
| Operating Voltage |
5 to 30 volts DC 5 to 250 VAC, 50/60 Hz |
| Outputs per Module | 16 (four groups of four outputs each) |
| Isolation: | |
| Field to Backplane and to Frame Ground |
250 VAC continuous; 1500 VAC for 1 minute |
| Point to Point | 250 VAC continuous; 1500 VAC for 1 minute |
| Maximum Load |
2 Amps pilot duty maximum per output 4 Amps maximum per common 16 amps maximum per module |
| Minimum Load | 10mA |
| Maximum Inrush | 5 Amps |
| On Response Time | 15ms maximum1 |
| Off Response Time | 15ms maximum1 |
| Power Consumption, all outputs on | 7mA from 5 volt bus on backplane 135mA from relay 24V bus on backplane |
| 1 When this module is used with DC power supply IC695PSD040 or PSD140, special precautions should be taken because dropouts in the source voltage will be seen by this module and may cause relay dropouts. | |
About
The IC693MDL940 module is an GE Fanuc manufactured relay output module. It is a 16-point output module variant with a voltage rating of 120/240 Volts AC. It is a Series 90-30 module that is used for controlling output loads. It has an output switching capacity of 2 Amps of relay current. There are 4 groups of 4 output points each. Each of these 4 groups has a common power output terminal. This industrial relay unit controls a wide variety of load devices including solenoids, indicators, and motor starters. The IC693MDL940 module is able to handle 15 bits of output data from the host controller CPU. It can be configured BY using the Proficy Machine Edition configuration software. The relay circuit is powered through the backplane with a 24 Volts DC source.
The IC693MDL940 module is compact in size and it has a small footprint. This output module has an open enclosure and should be used for indoor applications only. The maximum operating temperature should not exceed 60 degrees Celsius for regular operation. The IC693MDL940 module comes with 1500 Volts of isolation between the field side and the logic side, and 500 Volts of isolation between groups. The relay output module can take a maximum load of 4 Amps maximum current per common. The minimum total load current is 10 Amps and the maximum inrush current is 5 Amps. The on and off response time of the module is 15 milliseconds. The initial power consumption rating of the module is 7 milliamps with 5 Volts DC voltage from the bus on the backplane, and it is 135 milliamps with 24 Volts DC voltage from the bus on the backplane.
For more information on the IC693MDL940 Relay Output Module of the GE 90-30 Series, please see the Datasheet Manual.
