Product Details:
Payment & Shipping Terms:
|
| Brand: | GE Fanuc | Model: | IC693CHS399 |
|---|---|---|---|
| Series: | Series 90-30 | Product Type: | Remote Baseplate |
| CPU Connection: | Required | Number Of CPUs Supported: | 1 |
| Maximum Supported Cable Length: | 700 Feet | Number Of Slots: | 5 |
| Expansion Connector: | 25-Pin Female D-Type Connector | DIP Switch Type: | Rack Number Selection DIP Switch |
| High Light: | 30VDC Programmable Logic Controller,150Hz Input Simulator Module,250Ohms Analog Current Input Module |
||

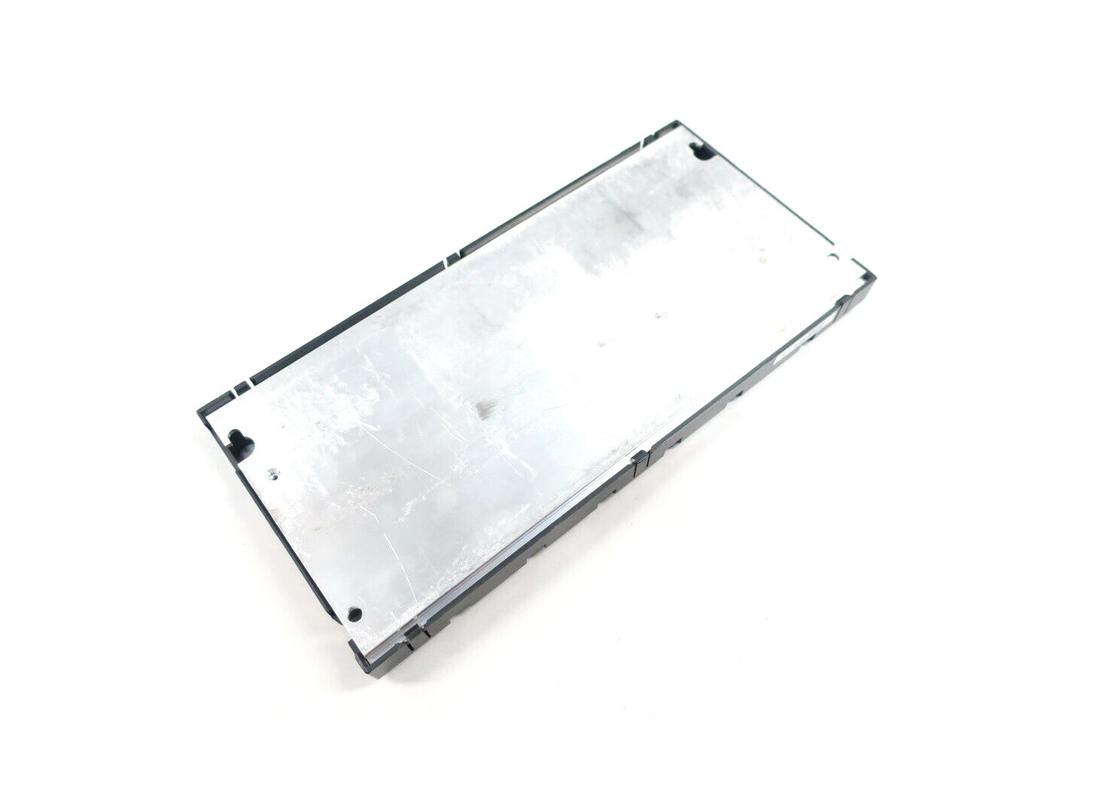

The GE Fanuc IC693CHS399 is a 5-Slot Remote Baseplate for GE Fanuc series 90-30 PLCs. It consists of a metal wall mount, the circuit board, and a plastic cover. PLCs can run a variety of programs, which are developed with GE Fanuc software, and they consist of plug-in and modular components.
There are three types of Baseplates for GE Fanuc PLCs. The first type is the CPU baseplate, which has the main processor, and is essential to the PLC. The next two are remote and expansion baseplates. Remote baseplates are same size and use the same power supply as expansion baseplates. The GE Fanuc IC693CHS399 Remote Baseplate can process and transfer data from a very big distance, yet both support the same modules.
There can be up to 700 feet of cable between the Remote Baseplate and any other baseplate. It has isolated power supply for I/O modules. This power transfers through the circuit to the expansion slot, allowing baseplate remote capability of 700 feet in distance.

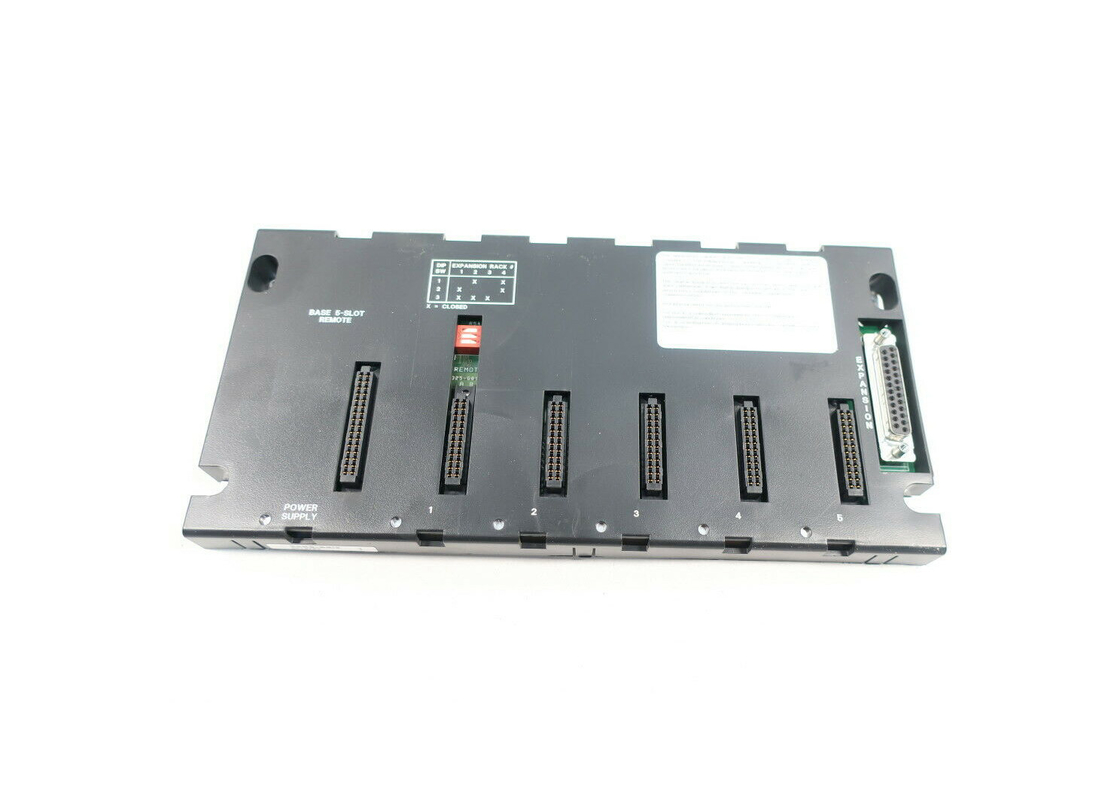

The GE Fanuc IC693CHS399 Remote Baseplate needs its own power supply module, which plugs on the left slot of the board. Next to the power supply slot are five module slots, yet they don’t support PCM, ADC, BEM330, and CMM modules. On the right of the boars is the expansion slot that connects the GE Fanuc IC693CHS399 Remote Baseplate with other baseplates. The number of Remote Baseplates on a GE Fanuc Series 90 PLC is defined by the processor of the main CPU. 331, 340, and 341 CPUs can connect with up to four Remote Baseplates, while 350 CPU can connect with up to seven.
| Module Type: | Expansion I/O Base |
| Baseplate Option: | Expansion |
| Distance: | Up to 700 feet |
| Number of Slots: | 5 |
| Dimensions: | 10.43 x 5.12 x 5.59 in. (W x H x D) |
| Internal Power Used: | 480 mA @ 5 VD |
