| Brand: | GE Fanuc | Model: | IC693CPU311 |
|---|---|---|---|
| Series: | Series 90-30 | Product Type: | Backplane With Embedded CPU |
| Processor Type: | 80188 Processor | Processor Speed: | 10 Megahertz |
| Number Of Module Slots: | 5 | Number Of Communication Ports: | 1 |
| Protocols: | SNP And SNP-X Slave Protocols | Operating Temperature: | 32 To 140 Degrees Fahrenheit |
| High Light: | 24VDC Negative Logic Input module,24VDC Positive Logic Input Module,2A Negative Logic Output Module |
||
The GE Fanuc IC693CPU313 is an embedded CPU with a 5-slotted baseplate that contains single baseplate per system. This module reaches a processing speed of 10 MHz with the processor 80188. The power required to perform its function is 5 VDC and the current drawn by this module is 430 mA. This operation of this module happens at a temperature range from 0°C to 60 °C.
The IC693CPU313 is provided with a maximum user memory of 12 KB for programming which is allocated in various memory types. The user memory associated with the Analog input (%AI) and Analog output (%AO) is 64 words and 32 words respectively. This module requires 128 bits of memory for the reference of system status in which each sub-memory types requires 32 bits. The memory is also allocated for system registers (%SR) of 16 words. The register memory also has maximum space for storing up to 1024 words of data. The memory associated with internal coils (%M) and temporary output coils (%T) is 1024 bits and 264 bits respectively. The main memory in the IC63CPU313 is discrete global memory (%G) which is 1280 bits.
The communication with other modules is done via LAN which supports multidrop. The IC693CPU313 also supports optional modules like GCM, GCM+, Ethernet, Profibus, FIP, GBC, etc. The memory storage used in this module are RAM or EPROM. This module can achieve a scan rate of 0.6 milliseconds/1K and is provided with a single built-in port which supports protocol such as SNP slave and SNP-X slave.

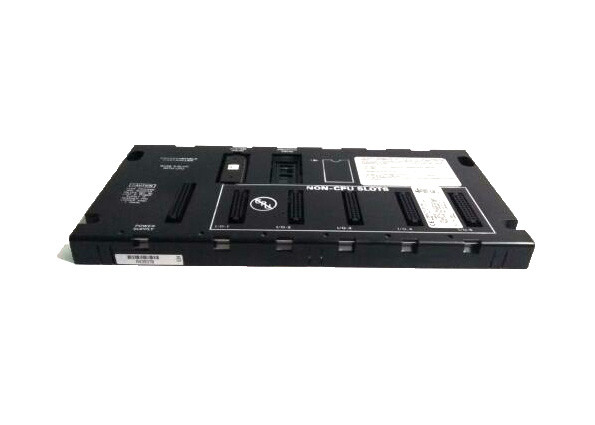

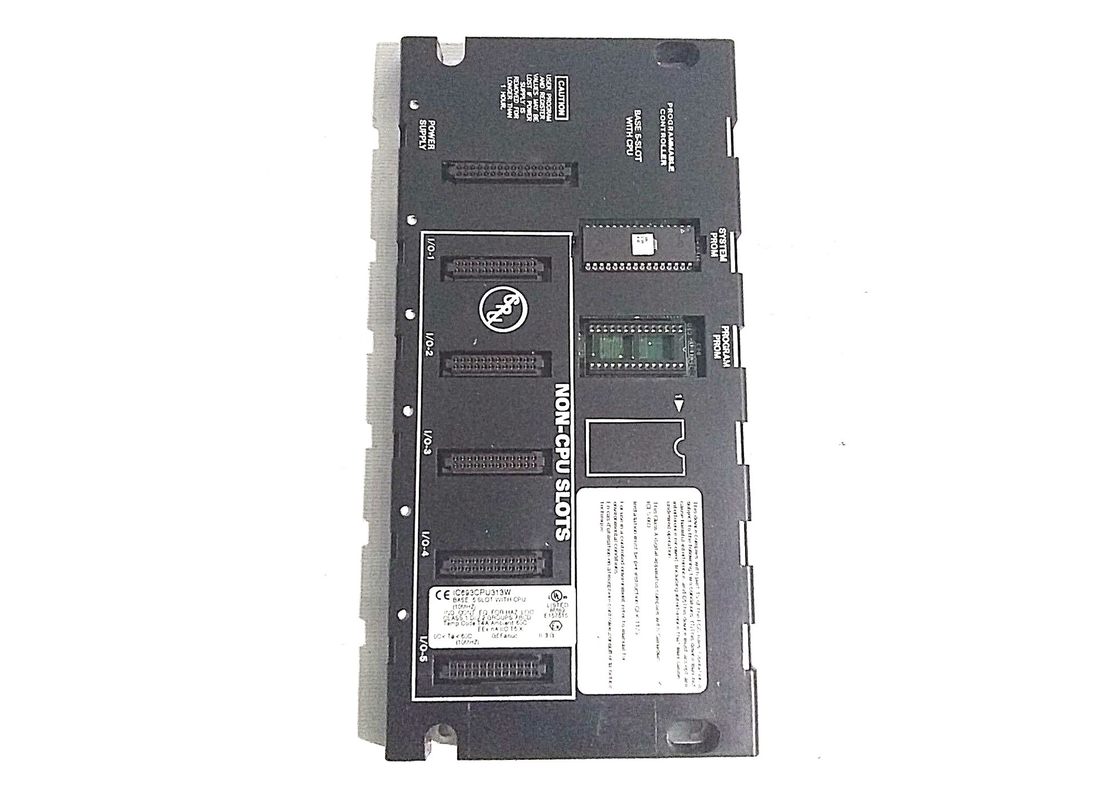

The IC693CPU313 CPU is a GE Fanuc embedded CPU from the Series 90-30 line. It is a CPU backplane with a CPU module embedded directly into it. The IC693CPU313 embedded CPU operates with a processor speed of 10 Megahertz and its processor is an 80188 processor. It is a turbo CPU. The baseplate of the IC693CPU313 embedded CPU only has 5 slots for modules (plus 1 slot on the far left side that is only for hosting power supplies.) However, it can connect to other kinds of baseplates such as remote baseplates and expansion baseplates in a Series 90-30 programmable logic controller or PLC, and these baseplates will provide additional slots for modules. The IC693CPU313 embedded CPU cannot be connected to PCM and CCM devices, but it can accommodate most option modules and I/O modules.
The GE Fanuc Series 90-30 IC693CPU313 embedded CPU has only 1 communication port. This communication port allows the embedded CPU to communicate with other devices through the SNP slave protocol and the SNP-X slave protocol. The memory types that the IC693CPU313 embedded CPU can support include RAM, and EPROM or EEPROM for specialized applications. The ambient operating temperature range for this embedded CPU backplane is from 0 to 60 degrees Celsius or from 32 to 140 degrees Fahrenheit. This CPU cannot support floating point math. The Series 90-30 IC693CPU313 embedded CPU draws 430 milliamps of current at 5 Volts DC backplane voltage. It can communicate with other modules through a LAN that supports a multi-drop setup.
| Processor Speed : | 10 MHz |
| I/O Points : | 160 |
| Register Memory : | 2KBytes |
| Floating Point Math: | No |
| 16 BIT system | Yes |
| Processor: | 80188 |
| Manufacturer | GE Fanuc |
|---|---|
| Series | Series 90-30 |
| Part Number | IC693CPU313 |
| Product Type | Backplane with embedded CPU |
| Processor Type | 80188 processor |
| Processor Speed | 10 Megahertz |
| Number of Module Slots | 5 |
| Number of Communication Ports | 1 |
| Protocols | SNP and SNP-X slave protocols |
| Operating Temperature | 32 to 140 degrees Fahrenheit |
